STLED524
Detailed description

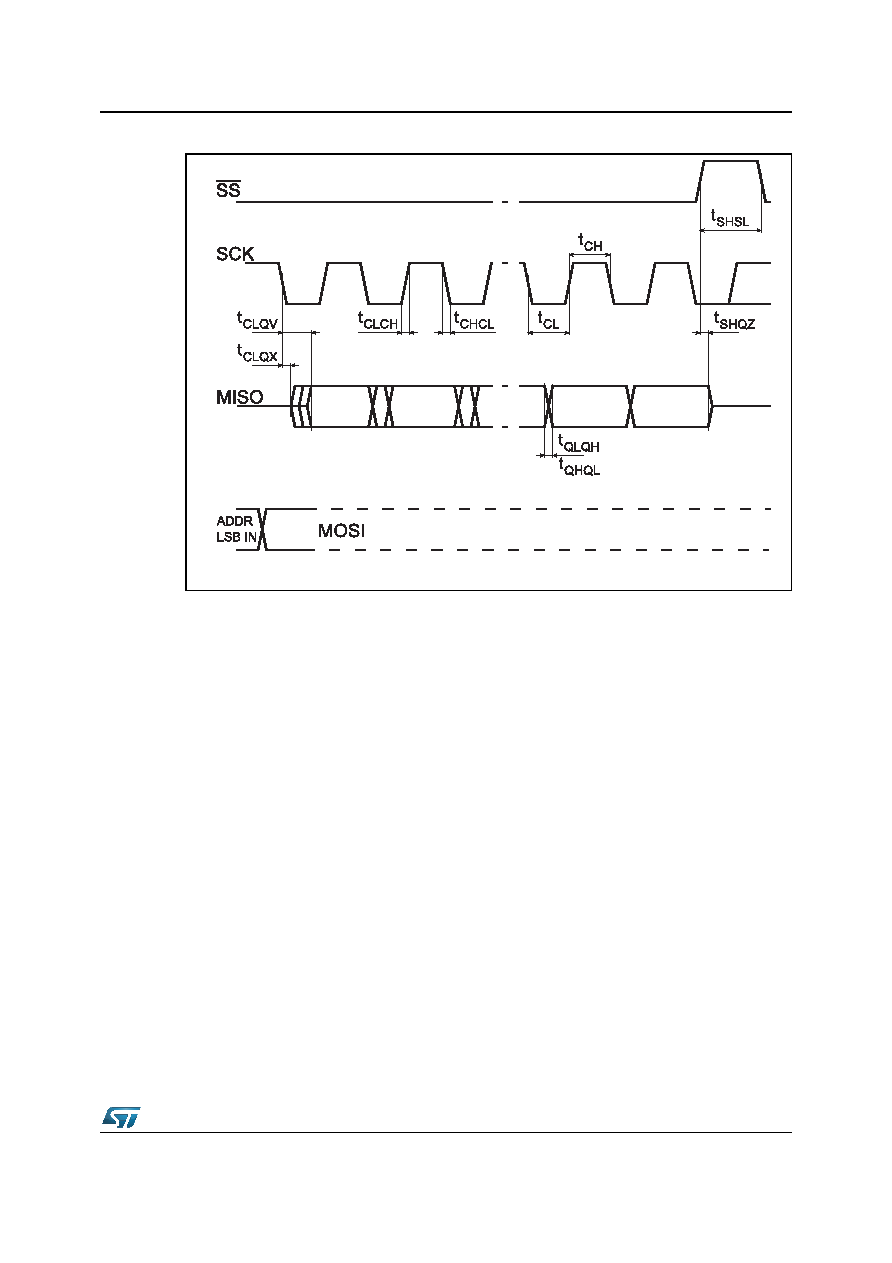

Figure 22. Serial output timing
Data are captured on SCK rising edge and are propagated to SCK falling edge.
SCK is low when it is in idle mode. SPI master selects one slave at a time through 5 pF Cmax
SS signal.
