DocID026217 Rev 1
17/72
STLED524
Detailed description

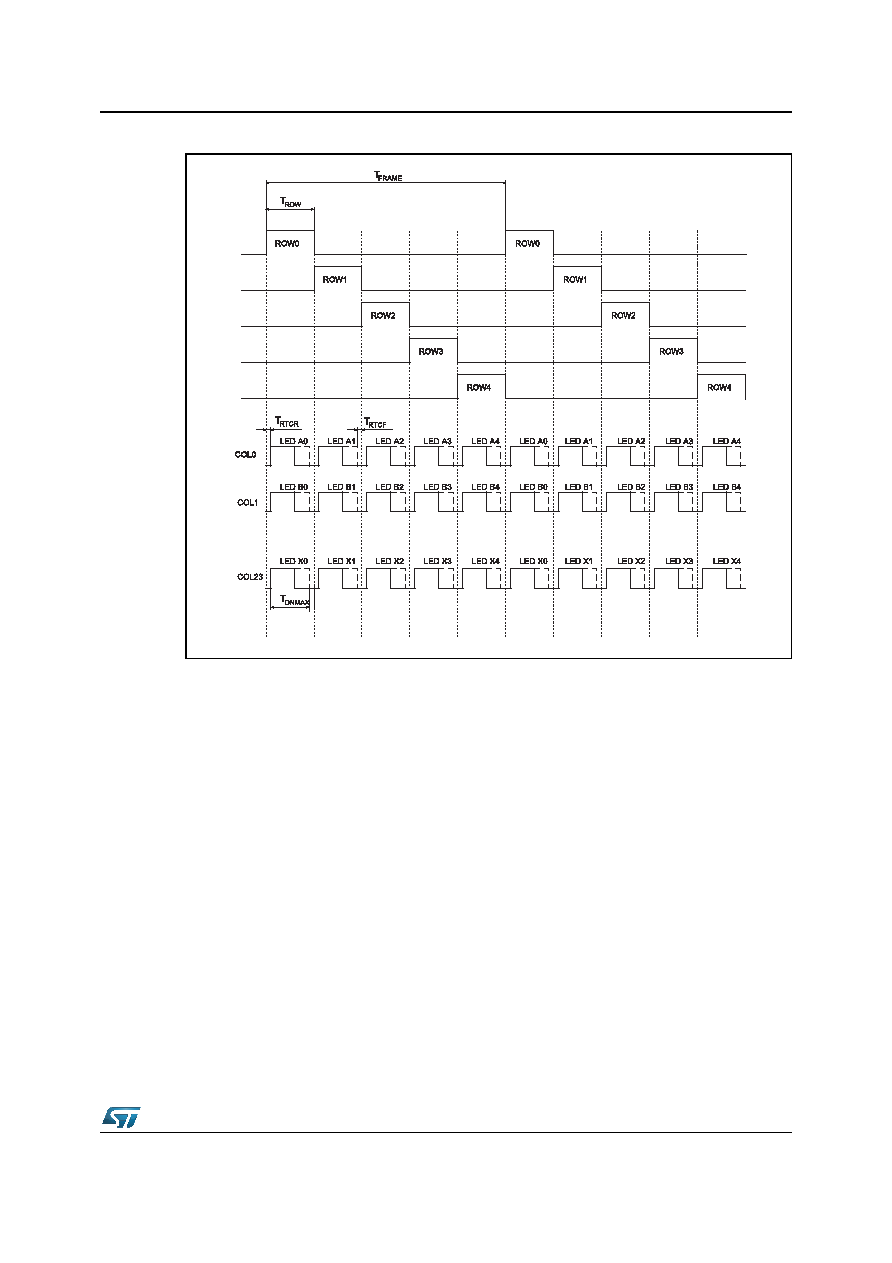

Figure 4. LED matrix timing
TRTCR and TRTCF are adjustable due to the blanking time register. If a blanking time is set
longer than 2 TCLK, maximum PWM duty cycle is limited according to Table 10.
GIPG2103140938LM
