ADIS16240
Rev. 0 | Page 7 of
16

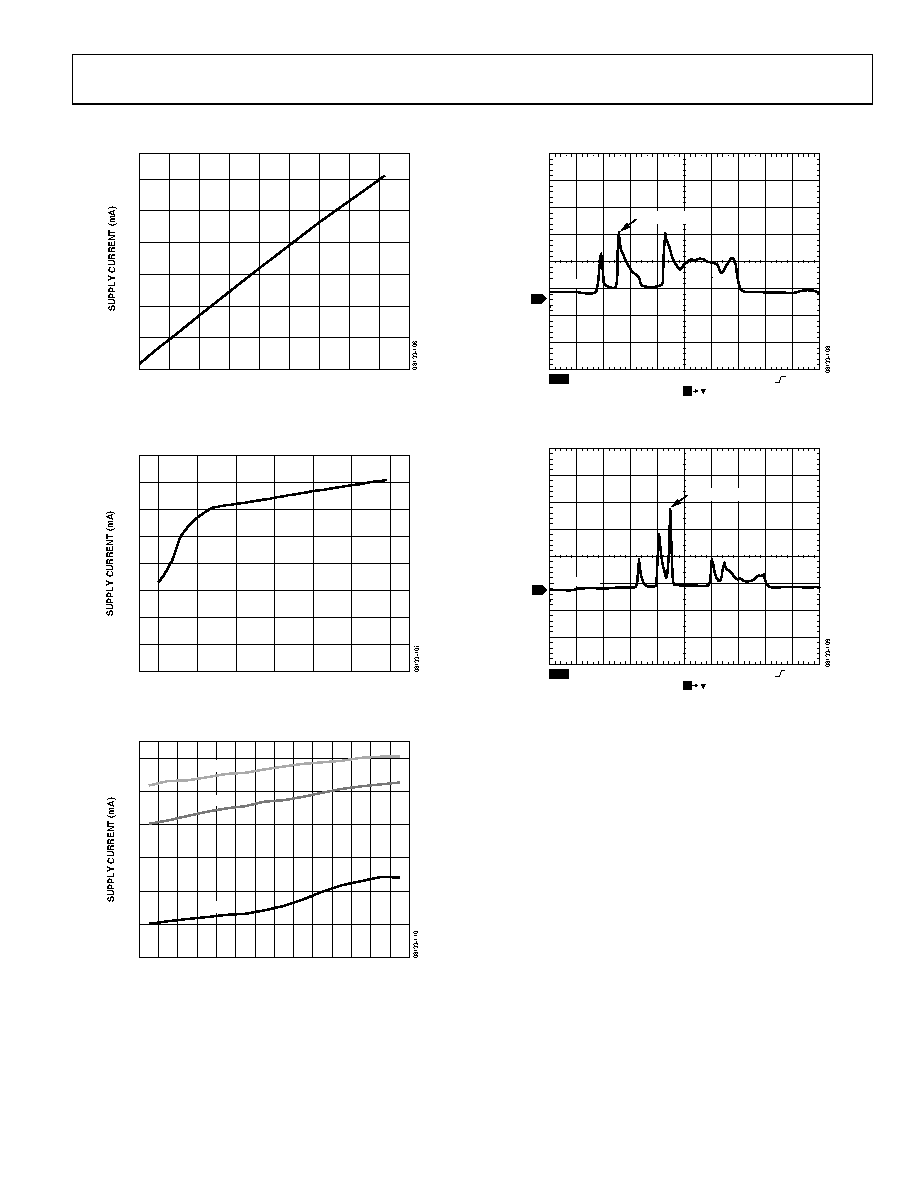

TYPICAL PERFORMANCE CHARACTERISTICS
0.3
0.8
1.3
1.8
2.3
2.8
3.3
0
500
1000
1500
2000
2500
3000
3500
4000
4500
SAMPLE RATE (SPS)
Figure 6. Supply Current vs. Sample Rate
0.2
0
0.4
0.6
0.8
1.0
1.2
1.4
1.6
2.4
2.6
2.8
3.0
SUPPLY VOLTAGE (V)
3.2
3.4
3.6
Figure 7. Supply Current vs. Supply Voltage
0.9
1.0
1.1
1.2
1.3
1.4
1.5
–40 –30 –20 –10
0
1020
304050
6070
8090
TEMPERATURE (°C)
3.0V
3.6V
2.4V
Figure 8. Supply Current vs. Temperature
CH1 20.0V
M40.0µs
A CH1
17.2mV
1
T
40.5304µs
CURRENT
30mA PEAK
Figure 9. Instantaneous Supply Current
CH1 50.0V
M40.0µs
A CH1
73.0mV
1
T
40.5304µs
CURRENT
30mA PEAK
Figure 10. Instantaneous Supply Current
