STMPE812
STMPE812 functional overview
Doc ID 17732 Rev 3
5/51
1.1
Pin configuration and functions

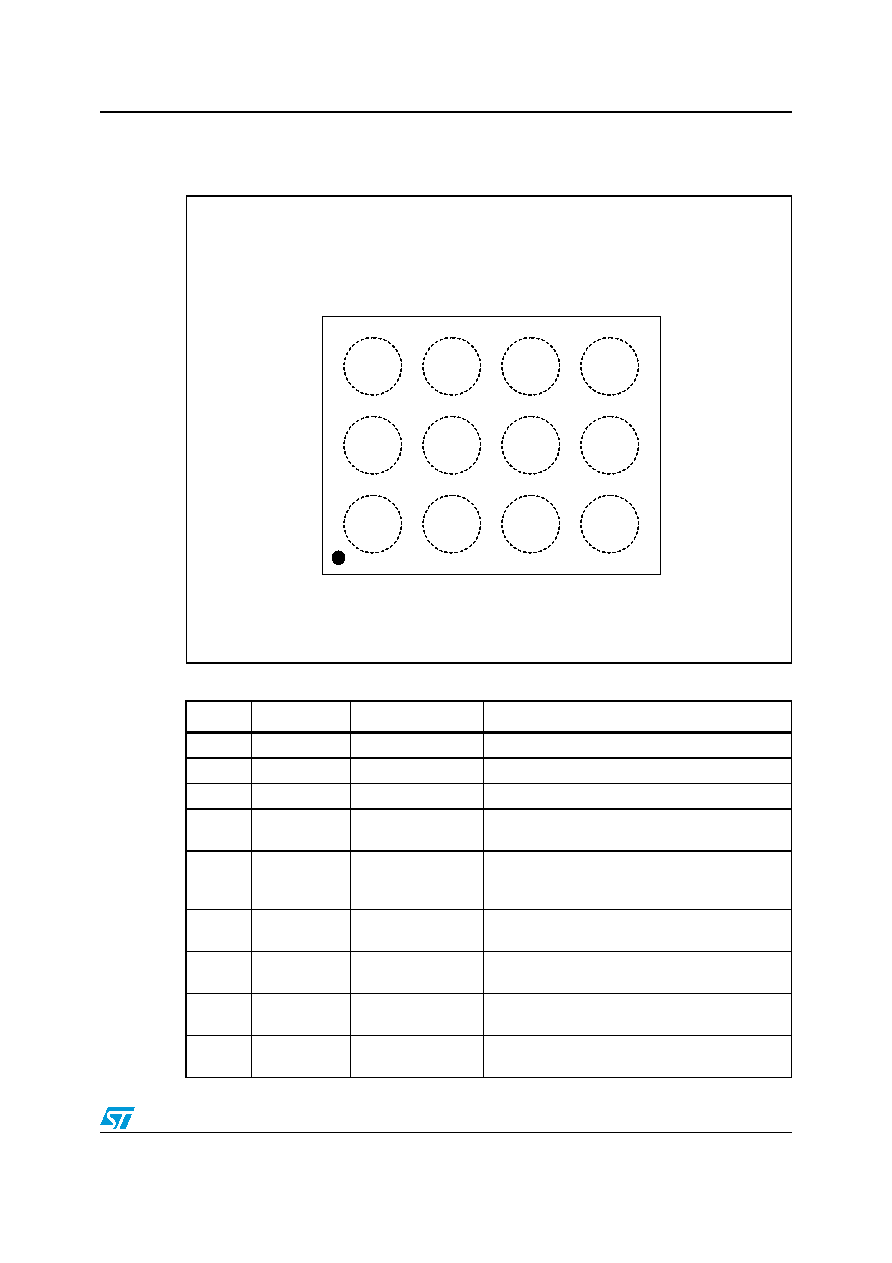

Figure 2.
Pin configuration (top through view)
Table 2.
Pin assignments
Pin
Name
Current capacity
Function
B3
Y+
50 mA current limit
Y+
C3
X-
50 mA current limit
X-
D3
Y-
50 mA current limit
Y-
C2
P1
+8 mA/-12 mA at
3.3 V
GPIO-0 / ADC / PWM1 (3.6 V tolerant within VCC
valid range; VIN_ADC must be less than Vcc))
D2
GND
Can be > 80 mA
load at touchscreen
and GPIO drive
Ground
D1
SCL
-4 mA
I2C clock (fail safe, tolerant to 3.6 V regardless of
VCC)
C1
SDA
-4 mA
I2C data (fail safe, tolerant to 3.6 V regardless of
VCC)
B1
P3
+8 mA/-12 mA at
3.3 V
GPIO-3 / INT (3.6 V tolerant within VCC valid
range)
A1
P2
+8 mA/-12 mA at
3.3 V
GPIO-2 / RESET (3.6 V tolerant within VCC valid
range)
Obsolete
Product(s)
- Obsolete
Product(s)
