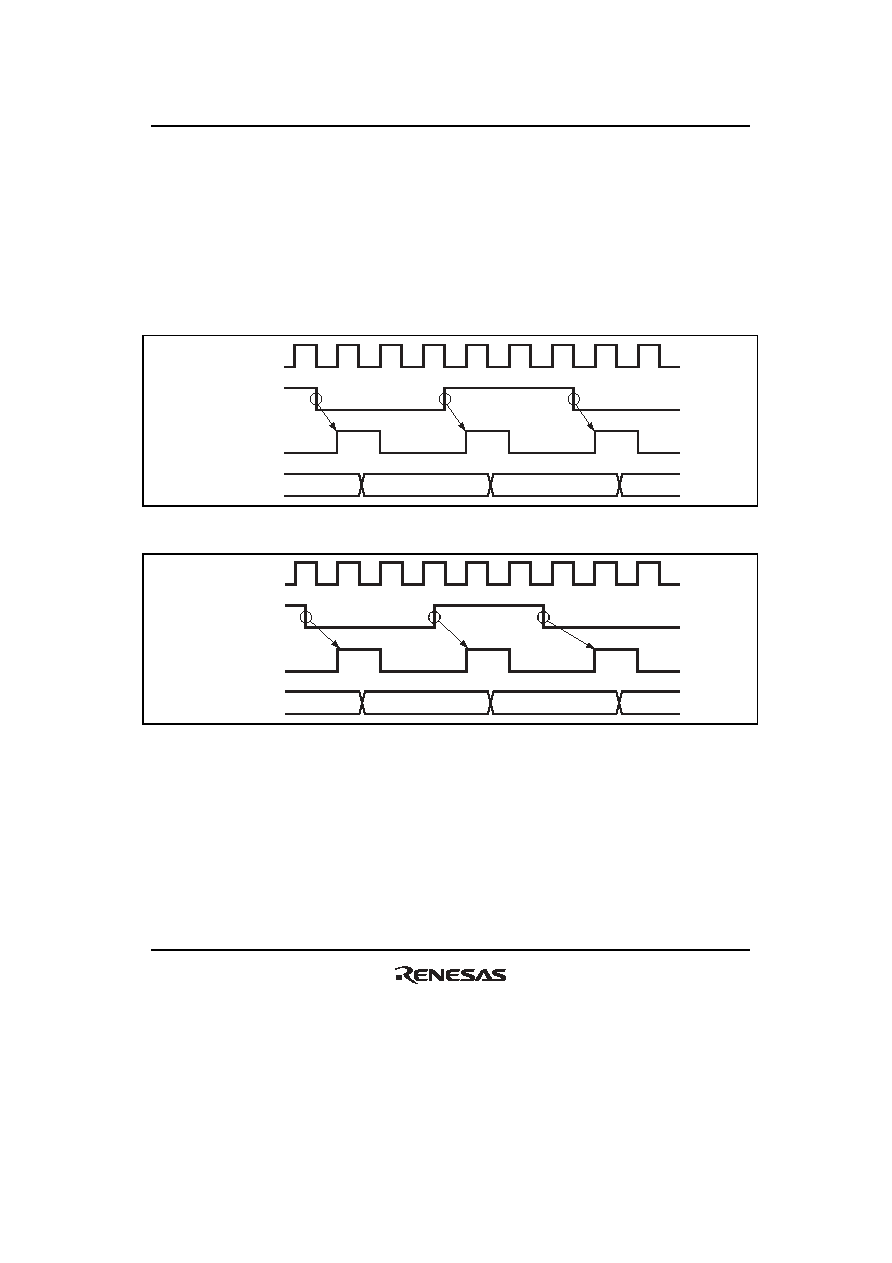

791 / 1504 page  Section 14 16-Bit Timer Pulse Unit (TPU) Rev. 2.00 Sep. 24, 2008 Page 759 of 1468 REJ09B0412-0200 14.9 Operation Timing 14.9.1 Input/Output Timing (1) TCNT Count Timing Figure 14.31 shows TCNT count timing in internal clock operation, and figure 14.32 shows TCNT count timing in external clock operation. P φ Internal clock TCNT input clock TCNT Falling edge Rising edge N − 1N + 1N + 2 N Falling edge Figure 14.31 Count Timing in Internal Clock Operation P φ External clock TCNT input clock TCNT Falling edge Rising edge N − 1N + 1N + 2 N Falling edge Figure 14.32 Count Timing in External Clock Operation |
|
