General Description

The DS8113 smart card interface is a low-cost, analog

front-end for a smart card reader, designed for all ISO

7816, EMV™, and GSM11-11 applications. The DS8113

supports 5V, 3V, and 1.8V smart cards. The DS8113

provides options for low active- and stop-mode power

consumption, with as little as 10nA stop-mode current.

The DS8113 is designed to interface between a system

microcontroller and the smart card interface, providing

all power supply, ESD protection, and level shifting

required for IC card applications.

An EMV Level 1 library (written for the MAXQ2000

microcontroller) and hardware reference design is

available. Contact Maxim technical support at

requirements for other microcontroller platforms. An

evaluation kit, DS8113-KIT, is available to aid in proto-

typing and evaluation.

Applications

Consumer Set-Top Boxes

Access Control

Banking Applications

POS Terminals

Debit/Credit Payment Terminals

PIN Pads

Automated Teller Machines

Telecommunications

Pay/Premium Television

Features

♦ Analog Interface and Level Shifting for IC Card

Communication

♦ 8kV (min) ESD (IEC) Protection on Card Interface

♦ Ultra-Low Stop-Mode Current, Less Than 10nA

Typical

♦ Internal IC Card Supply-Voltage Generation:

5.0V ±5%, 80mA (max)

3.0V ±8%, 65mA (max)

1.8V ±10%, 30mA (max)

♦ Automatic Card Activation and Deactivation

Controlled by Dedicated Internal Sequencer

♦ I/O Lines from Host Directly Level Shifted for

Smart Card Communication

♦ Flexible Card Clock Generation, Supporting

External Crystal Frequency Divided by 1, 2, 4, or 8

♦ High-Current, Short-Circuit and High-Temperature

Protection

♦ Low Active-Mode Current

Smart Card Interface

________________________________________________________________

Maxim Integrated Products

1

Ordering Information

19-5216; Rev 3; 4/10

Note: Contact the factory for availability of other variants and

package options.

+

Denotes a lead(Pb)-free/RoHS-compliant package.

EMV is a trademark owned by EMVCo LLC.

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,

or visit Maxim’s website at www.maxim-ic.com.

Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device may be

PART

TEMP RANGE

PIN-PACKAGE

DS8113-RNG+

-40

°C to +85°C

28 SO

DS8113-JNG+

-40

°C to +85°C

28 TSSOP

Selector Guide appears at end of data sheet.

PGND

28

27

26

25

24

23

22

AUX2IN

AUX1IN

I/OIN

XTAL2

TOP VIEW

DS8113

XTAL1

OFF

GND

21 VDD

20 RSTIN

19 CMDVCC

18 1_8V

17 VCC

16 RST

15 CLK

5V/3V

CLKDIV2

CLKDIV1

CP1

VDDA

VUP

PRES

PRES

I/O

AUX2

AUX1

4

1

2

3

5

6

7

8

9

10

11

12

13

14

CGND

CP2

SO/TSSOP

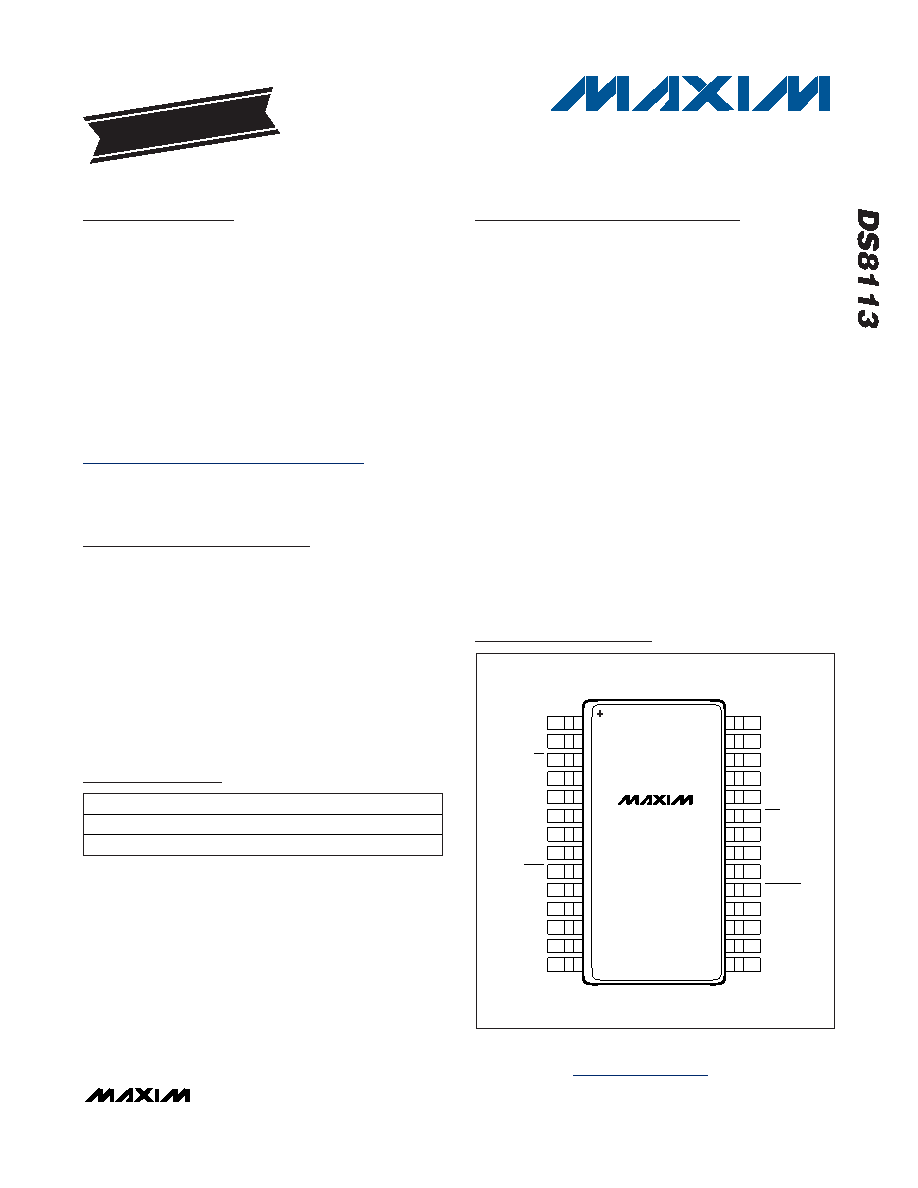

Pin Configuration

EVALUATION

KIT

AVAILABLE
