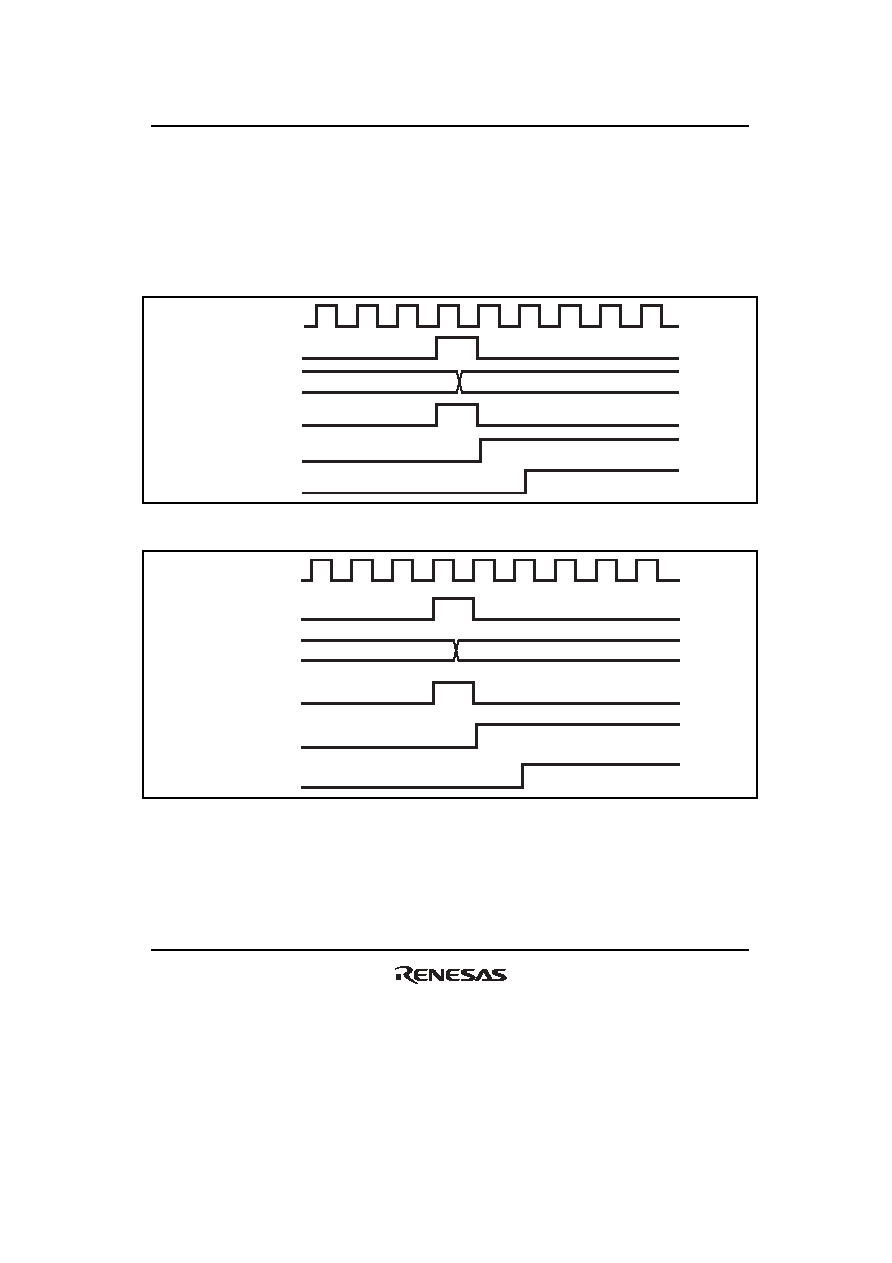

623 / 1158 page  Section 10 16-Bit Timer Pulse Unit (TPU) Rev.1.00 Jun. 07, 2006 Page 571 of 1102 REJ09B0294-0100 (3) TCFV Flag/TCFU Flag Setting Timing Figure 10.40 shows the timing for setting of the TCFV flag in TSR by overflow occurrence, and the TCIV interrupt request signal timing. Figure 10.41 shows the timing for setting of the TCFU flag in TSR by underflow occurrence, and the TCIU interrupt request signal timing. H'FFFF P φ TCNT input clock TCNT (overflow) Overflow signal TCFV flag TCIV interrupt H'0000 Figure 10.40 TCIV Interrupt Setting Timing H'0000 P φ TCNT input clock TCNT (underflow) Underflow signal TCFU flag TCIU interrupt H'FFFF Figure 10.41 TCIU Interrupt Setting Timing |
|
