Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 555 of 1102
REJ09B0294-0100

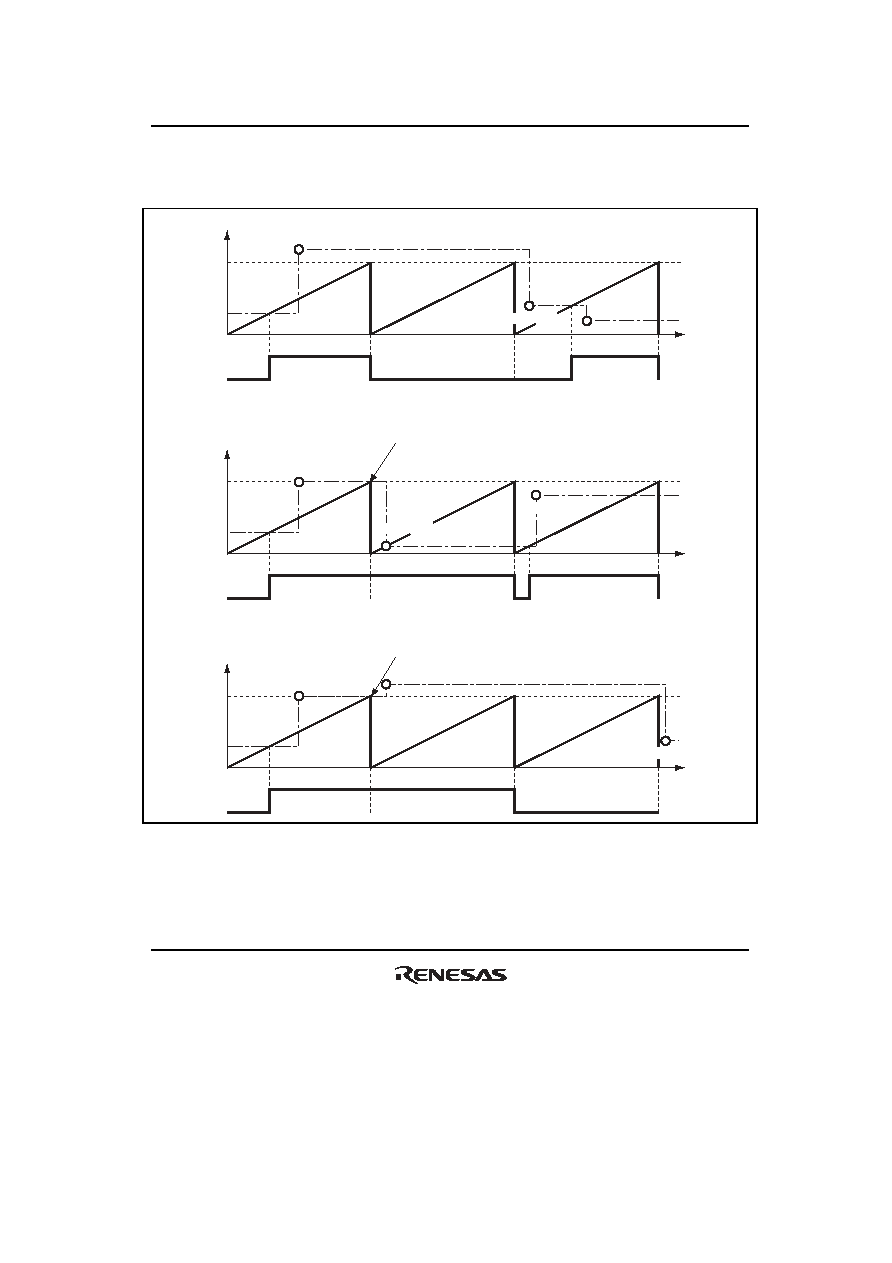

Figure 10.23 shows examples of PWM waveform output with 0% duty cycle and 100% duty cycle
in PWM mode.
TCNT value
TGRA
H'0000
TIOCA
Time
TGRB
0% duty
TGRB changed
TGRB
changed
TGRB changed
TCNT value
TGRA
H'0000
TIOCA
Time
TGRB
100% duty
TGRB changed
TGRB changed
TGRB changed
Output does not change when compare matches in cycle register
and duty register occur simultaneously
TCNT value
TGRA
H'0000
TIOCA
Time
TGRB
100% duty
TGRB changed
TGRB changed
TGRB changed
Output does not change when compare matches in cycle register
and duty register occur simultaneously
0% duty
Figure 10.23 Example of PWM Mode Operation (3)
