Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 297 of 1102
REJ09B0294-0100
(5) External NOP Cycles and Idle Cycles
A cycle in which an external space is not accessed due to internal operations is called an external
NOP cycle. Even when an external NOP cycle occurs between consecutive external bus cycles, an
idle cycle can be inserted. In this case, the number of external NOP cycles is included in the
number of idle cycles to be inserted.

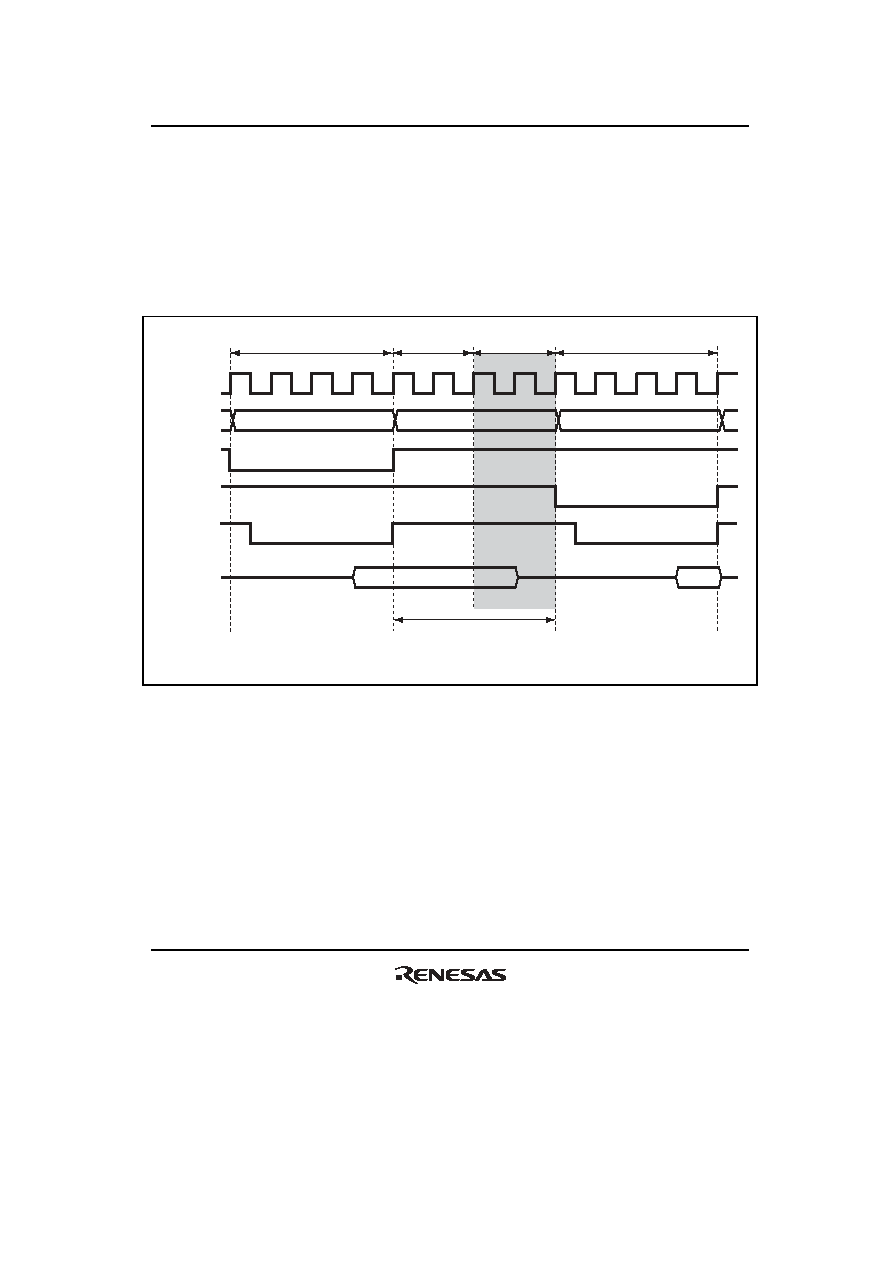

Figure 6.94 shows an example of external NOP and idle cycle insertion.
T
1
T
2
T
3
T
pw
T
1
T
2
T
3
T
pw
T
i
T
i
Address bus
No external access
(NOP)
Specified number of idle cycles or more
including no external access cycles (NOP)
Idle cycle
(remaining)
Following bus cycle
Preceding bus cycle
(Condition: Number of idle cycles to be inserted when different reads continue: 4 cycles)
Data bus
B
φ
CS (area B)
CS (area A)
RD
Figure 6.94 Idle Cycle Insertion Example
