STLS2F01

Thermal characteristics

41/48

Thermal characteristics

7.1

Thermal resistivity

Heat spreader optimized with the following assumptions

●

Ambient temperature 40 °C

●

Package assembled on PCB as per JEDEC EIA/JESD51-9

●

Max power 7.45 W

Customer should implement power extraction from the top of the package so that package

case to ambient Rth is below 16 °C/W.

Without air flow, this can be achieved with a 40x40x15 heat spreader or 27x27x25 HS or

35x35x18 HS. This should guarantee 120 °C max junction temperature (low margin).

The preferred configuration is to use a 27x27x10 HS with 0.5m/s air flow. A single fan in PC

case should be enough. In such case, max Junction temp should be around 112 °C.

7.2

Reflow temperature to time curve

The STLS2F01 processor uses a flip-chip eutectic packaging technology. It can endure

maximum reflow temperature ranging from 235 °C to 245 °C. The reflow temperature curve

and parameters are showed in Figure 10 and Table 22.

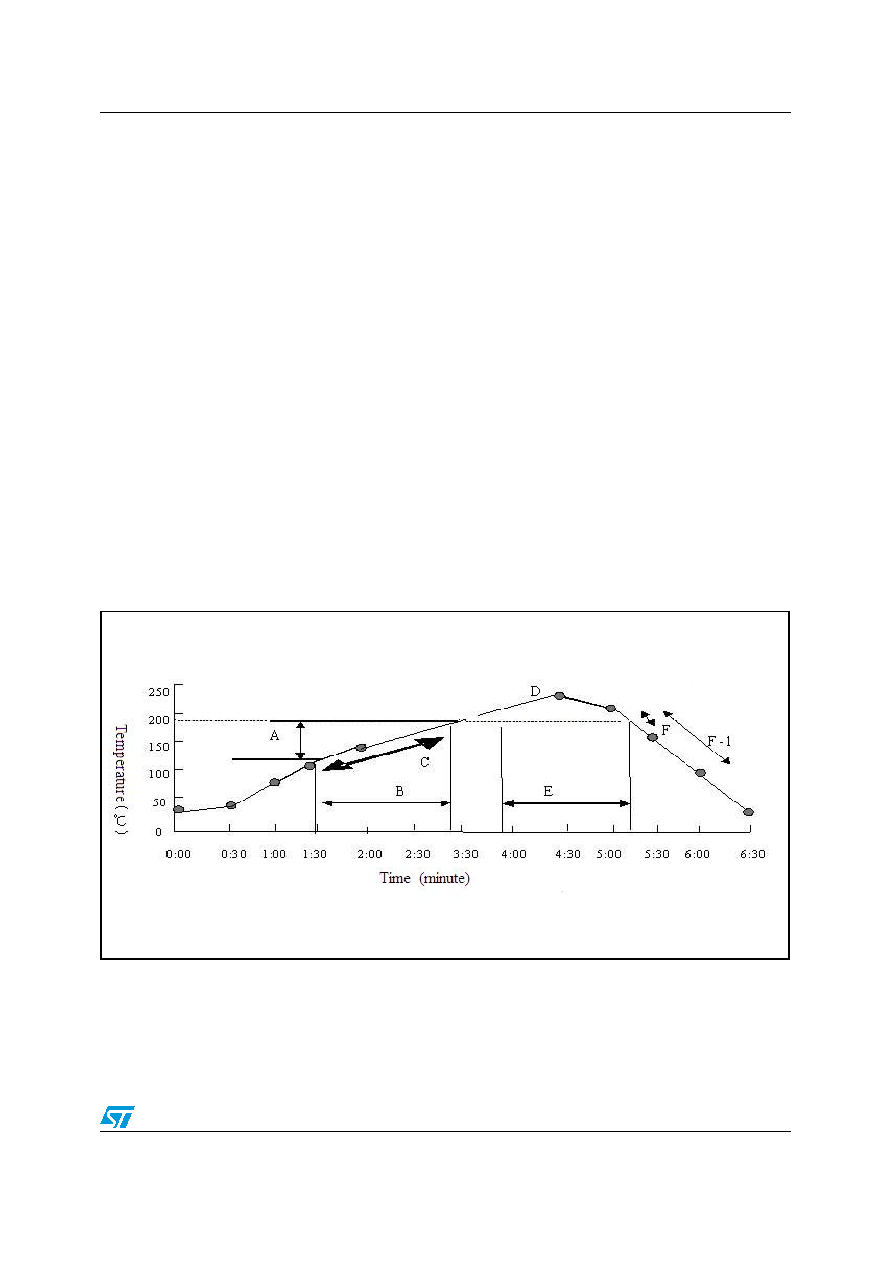

Figure 10.

Reflow temperature to time curve
