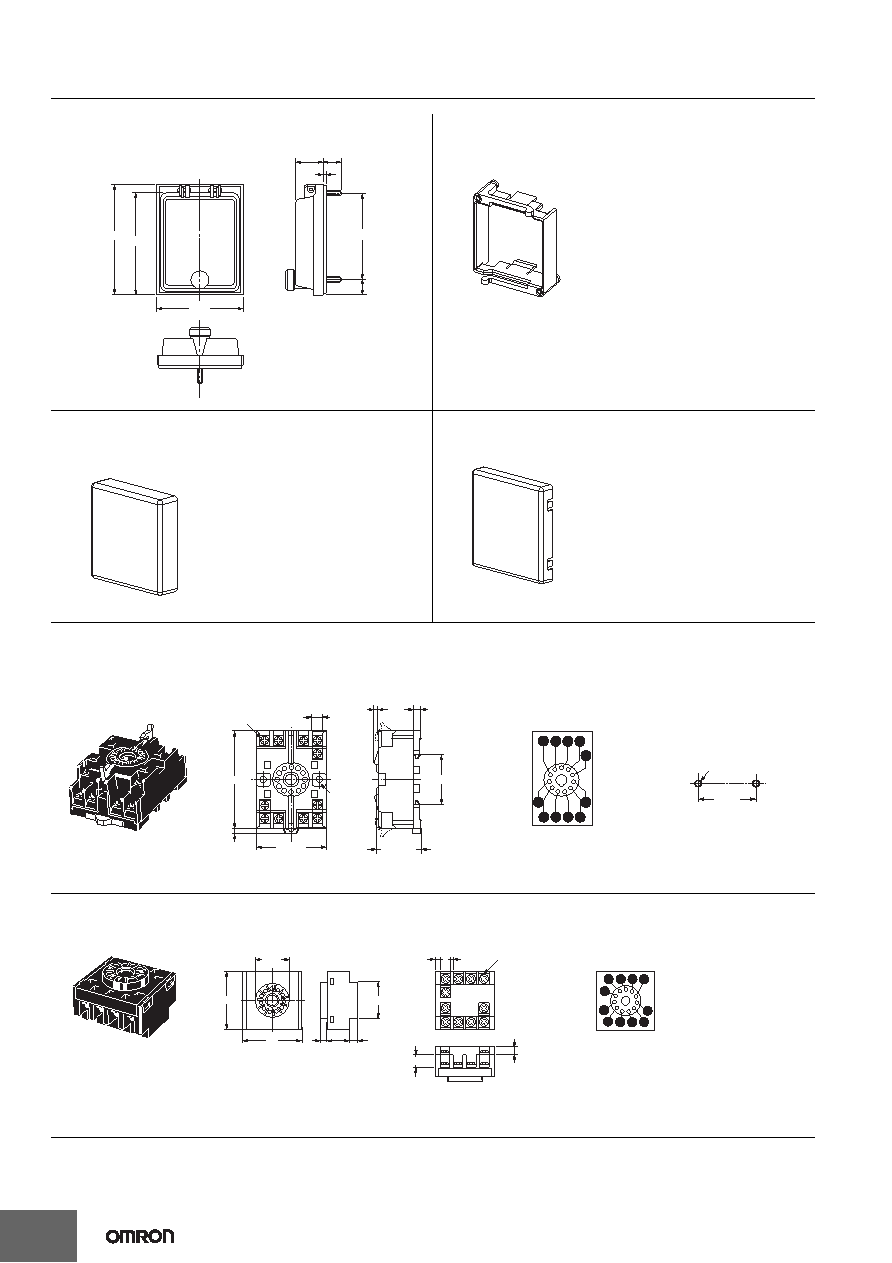

E5CC/E5CC-B/E5CC-U

E5CC-U Wiring Socket

Front-connecting Socket

P2CF-11

Back-connecting Socket

P3GA-11

Watertight Cover

Y92A-48N

Mounting Adapter

Y92F-49

Protective Cover

Y92A-48H

67.6

21.9 14

(2)

79.2

87.7

The Mounting Adapter is provided with the

Temperature Controller.

Order the Mounting Adapter separately if it

becomes lost or damaged.

This Protective Cover is soft type.

It is able to operate the controller with using

this cover.

Y92A-48D

Note: This Protective Cover cannot be used

if the Waterproof Packing is installed.

This Protective Cover is hard type.

Please use it for the mis-operation

prevention etc.

40±0.2

4.5

10 11

70 max.

Eleven, M3.5

× 7.5

sems screws

7.8

Two,

4.5-dia.

holes

50 max.

31.2 max.

35.4

Mounting Holes

Terminal Layout/Internal Connections

(Top View)

Two, 4.5 dia. mounting holes

Note: 1. A model with finger protection (P2CF-11-E) is also available.

2. You cannot use the P2CF-11 or P2CF-11-E together with the Y92F-45.

Note: Can also be mounted

to a DIN track

5 6 7 8

25.6

27dia.

4.5 16.3 6.2

8.7

Terminal Layout/Internal Connections

(Bottom View)

Eleven, M3.5

sems screws

Note: 1. Using any other sockets will adversely affect accuracy. Use only the specified sockets.

2. A Protective Cover for finger protection (Y92A-48G) is also available.

3. You cannot use the P3GA-11 together with the Y92F-45.
