E5CC/E5CC-B/E5CC-U

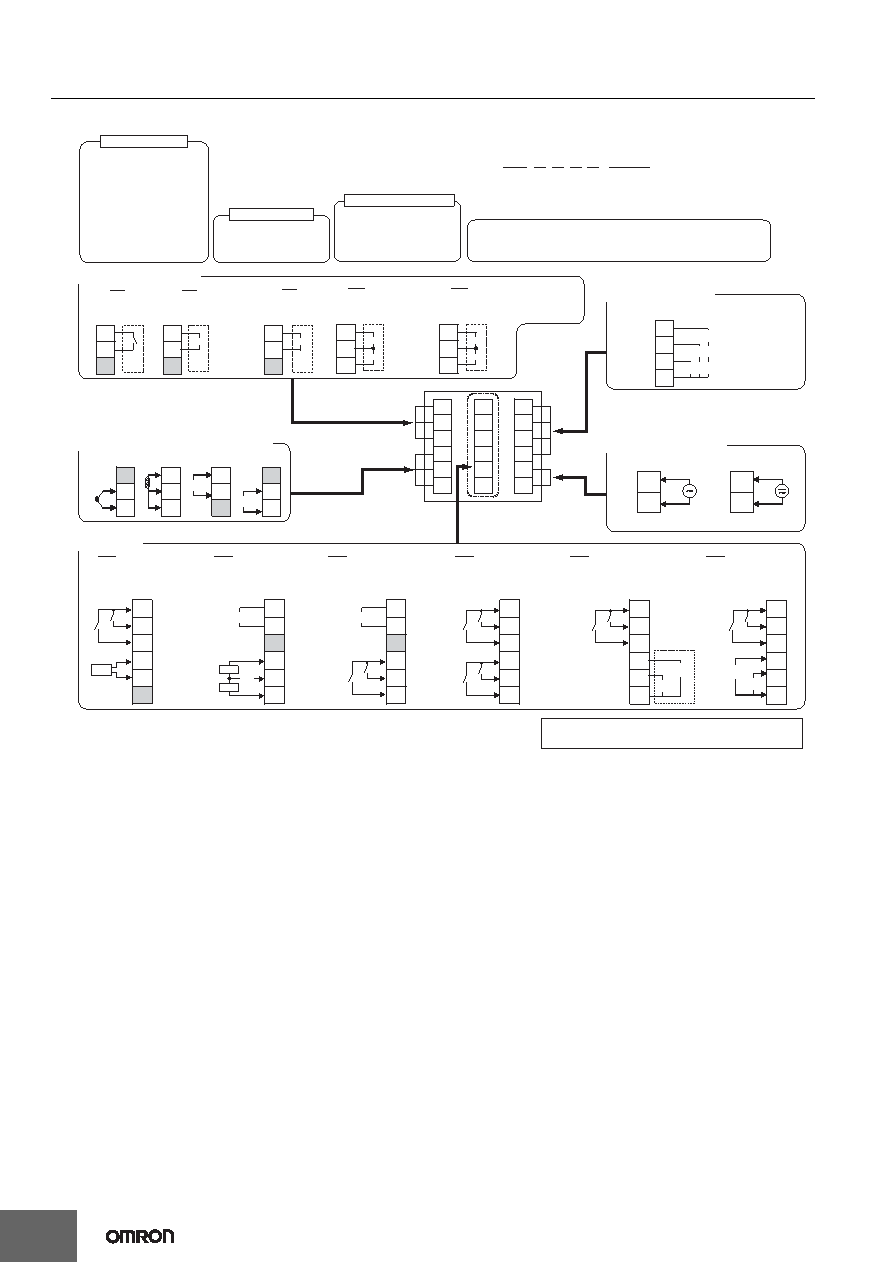

External Connections

E5CC (Screw Terminal Blocks)

Note: 1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

4. Connect M3 crimped terminals.

5. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring).

Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring

(internal wiring).

Voltage output

(for driving SSR)

12 VDC, 21 mA

Control output 2

The E5CC is set for a K-type thermocouple (input type = 5) by

default. An input error (

s.err) will occur if the input type setting does

not agree with the temperature sensor. Check the input type.

Control output 1

Relay output

250 VAC, 3A

(resistive load)

Voltage output

(for driving SSR)

12 VDC, 21 mA

Linear current output

0 to 20 mA DC

4 to 20 mA DC

Load: 500 Ω max.

Relay outputs

Models with 3 auxiliary

outputs: 250 VAC, 2 A

(resistive load)

(no polarity)

100 to 240 VAC

24 VAC/DC

Auxiliary outputs 1, 2, 3

●●

Auxiliary output 2

Auxiliary output 3

Auxiliary output 1

005

Event Inputs

1 to 4

004

Communications

(RS-485), and

Event Inputs 3 and 4

007

Event Inputs

1 and 2, and

Remote SP Input

006

Event Inputs

1 and 2, and

Transfer Output

001

Event Inputs 1

and 2, and CT1

003

Communications

(RS-485), CT1,

and CT2

(2) Auxiliary Outputs

(3) Input Power Supply

(5) Sensor (Temperature/Analog) Input

(6) Options

Models with

1 Linear

Current Output

Models with

1 Relay

Output

Models with 2

Voltage Outputs

(for Driving SSR)

(1) Control outputs 1, 2

Models with 1

Voltage Output

(for Driving SSR)

Auxiliary outputs 1, 2, 3

E5CC-

@@ 3 @ 5 M - @@@

↑

Terminal type

Models with 2 Outputs: Linear Current

Output and Voltage (for Driving SSR)

EV1

EV2

EV1

EV2

EV1

EV2

EV1

EV2

EV3

EV4

EV3

EV4

CT1

B(+)

A(-)

RS-485

B(+)

A(-)

RS-485

CT2

COM

CT1

OUT1

OUT2

OUT1

OUT2

(-)

(1) (2) (3) (4) (5)

(6)

Use no-voltage inputs for the event inputs.

The polarity for non-contact inputs is given in parentheses.

(-)
