E5CD/E5CD-B
19

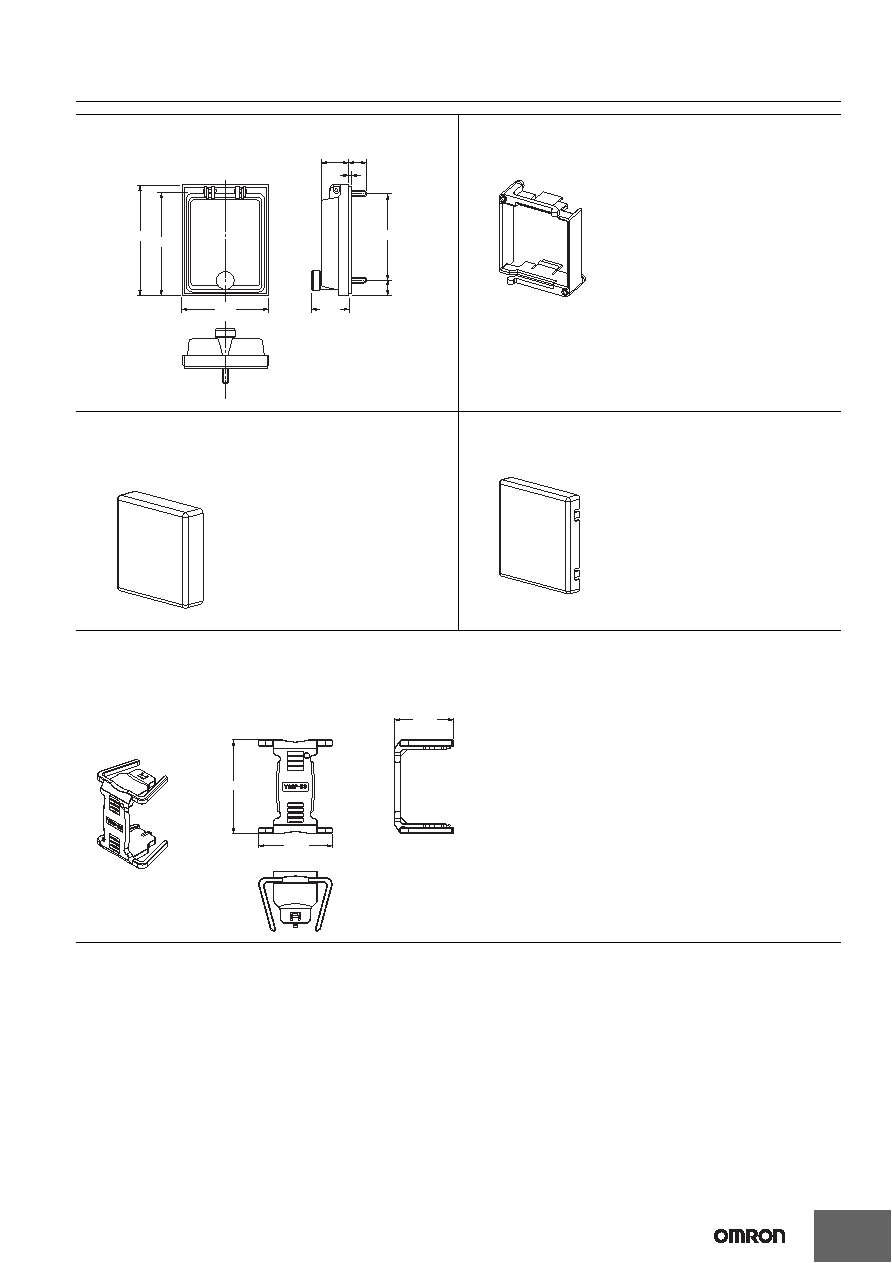

Draw-out Jig (Cannot be used on a Push-In Plus terminal block type)
Y92F-58
Waterproof Cover
Y92A-48N
Mounting Adapter
Y92F-49
Front Cover
Y92A-48D
Note: This Front Cover cannot be used if the Waterproof Packing is
installed.
Front Cover
Y92A-48H
67.6
28.9
69
12
21.9
14
(2)
79.2
87.7
The Mounting Adapter is provided with
the Digital Temperature Controller.
Order this Adapter separately if it
becomes lost or damaged.
This Front Cover is soft type.
It is able to operate the controller with
using this cover.
This Front Cover is hard type.
Please use it for the mis-operation
prevention etc.
55.5
43.6
35.2
Use this Draw-out Jig to remove the interior body of the Digital Temperature Controller from the case to perform maintenance without
removing the terminal wiring.
