Digital Controller

E5CK

I-77

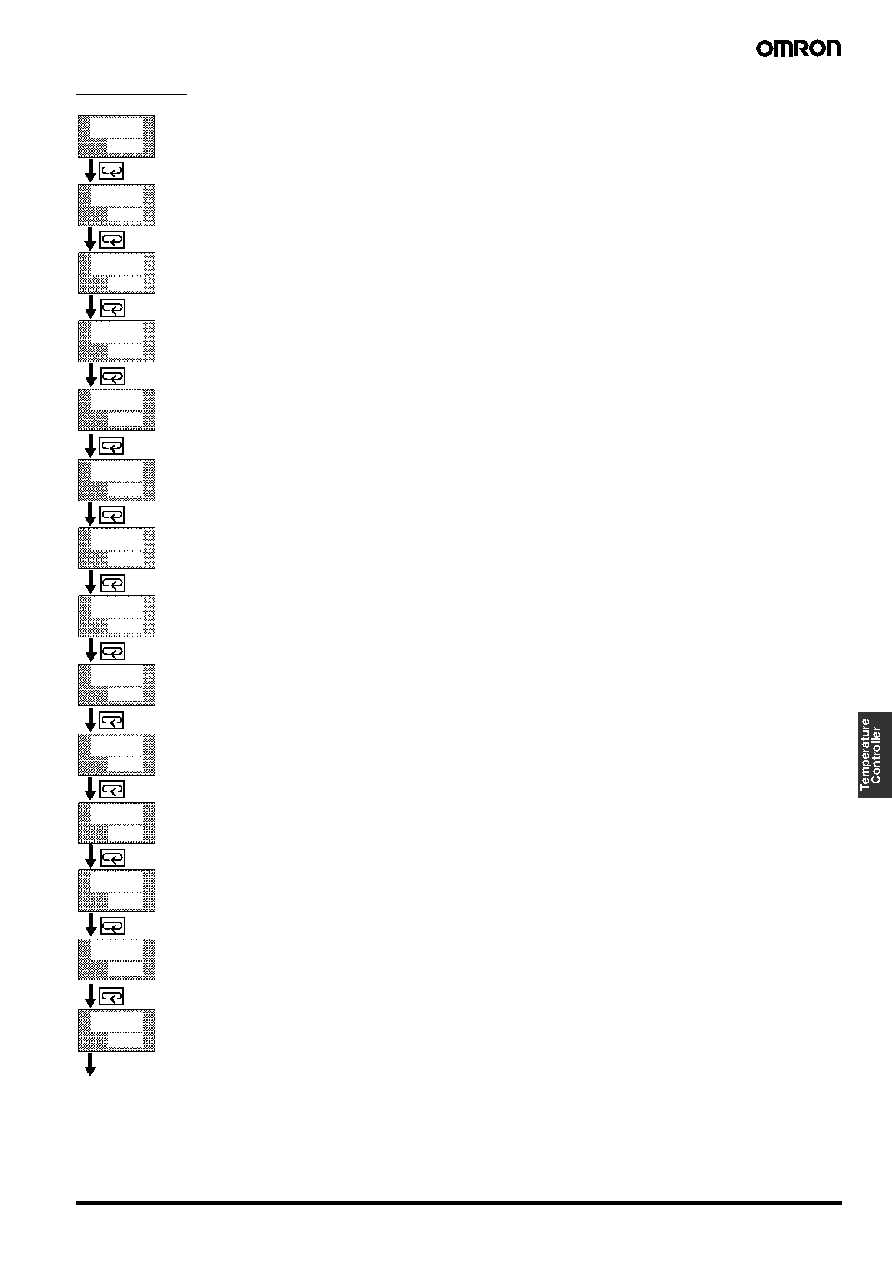

Setup Mode

2

100

i n - h

0

0

c

no

heat

al-1

al-2

2

n-o

2

n-o

i n - l

d p

d - u

a l 1 n

a l 2 n

i n i t

o u t 1

o u t 2

a l t 2

or-r

o r e U

i n - t

s u b 1

a l t 1

Input Type

Codes are used to determine the input types connected to terminals 6 to 8.

Scaling Upper Limit

Used if the input type connected to the Controller is an analog input (voltage or current input).

Scaling Lower Limit

Used if the input type connected to the Controller is an analog input (voltage or current input).

Decimal Point

Used if the input type connected to the Controller is an analog input (voltage or current input).

°C/°F Selection

Parameter Initialize

Control Output 1 Assignment

Control Output 2 Assignment

Auxiliary Output 1 Assignment

Alarm 1 Type

Alarm 1 Open in Alarm

Alarm 2 Type

Alarm 2 Open in Alarm

Direct/Reverse Operation

Available only when the Controller has an alarm

output (see the table on the next page).

Enables the Controller to have alarm 1, alarm 2, alarm 3, LBA (loop break alarm), error 1, and error 2

outputs.

Enables the Controller to have heating control, cooling control, alarm 1, alarm 2, alarm 3, and LBA

(loop break alarm) outputs.

Enables the Controller to have heating control, cooling control, alarm 1, alarm 2, alarm 3, and LBA

(loop break alarm) outputs.

Used if the input type connected to the Controller is a temperature input (thermocouple or platinum

resistance thermometer).
