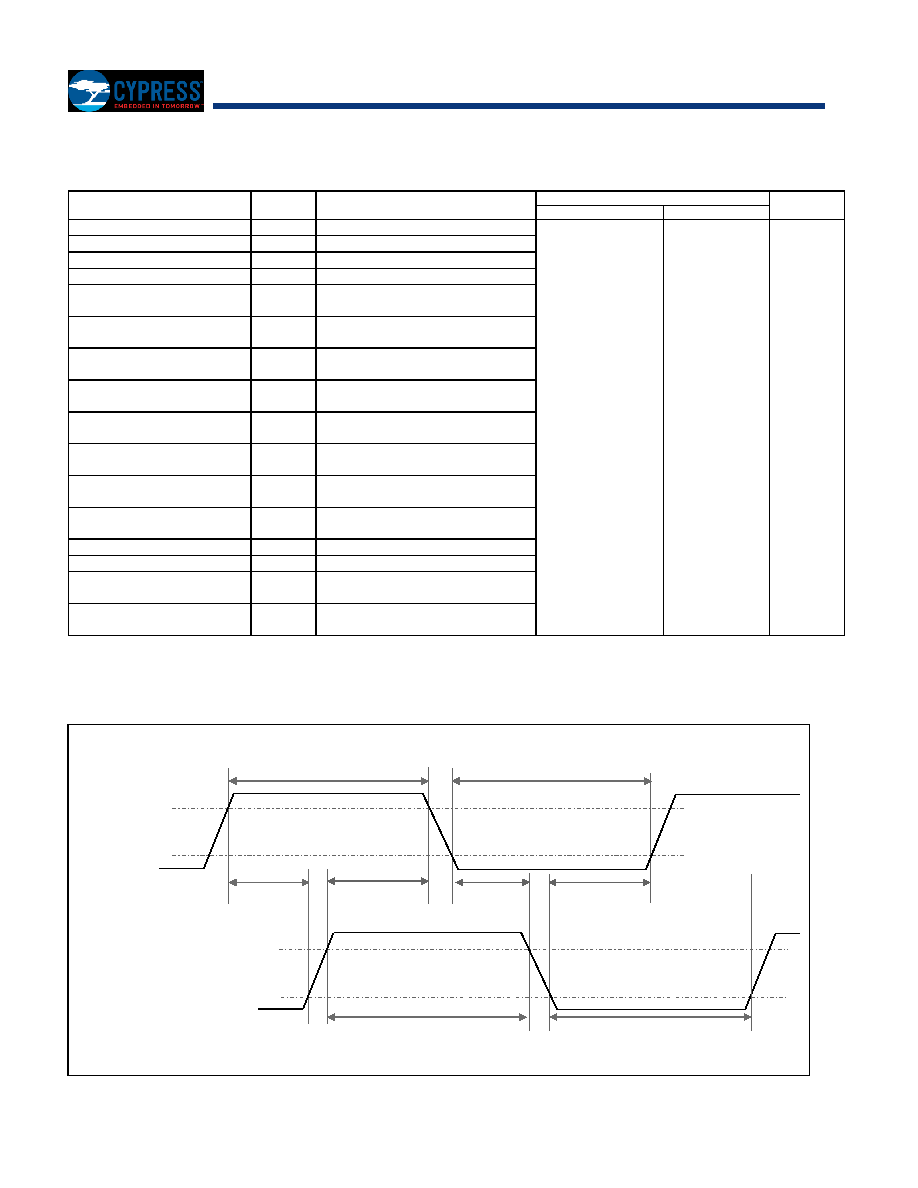

90 / 112 page  Document Number: 002-05615 Rev. *D Page 90 of 112 MB9B410R Series 12.4.12 Quadrature Position/Revolution Counter timing (VCC = 2.7V to 5.5V, VSS = 0V, TA = - 40°C to + 85°C) Parameter Symbol Conditions Value Unit Min Max AIN pin H width tAHL - 2tCYCP* - ns AIN pin L width tALL - BIN pin H width tBHL - BIN pin L width tBLL - BIN rise time from AIN pin H level tAUBU PC_Mode2 or PC_Mode3 AIN fall time from BIN pin H level tBUAD PC_Mode2 or PC_Mode3 BIN fall time from AIN pin L level tADBD PC_Mode2 or PC_Mode3 AIN rise time from BIN pin L level tBDAU PC_Mode2 or PC_Mode3 AIN rise time from BIN pin H level tBUAU PC_Mode2 or PC_Mode3 BIN fall time from AIN pin H level tAUBD PC_Mode2 or PC_Mode3 AIN fall time from BIN pin L level tBDAD PC_Mode2 or PC_Mode3 BIN rise time from AIN pin L level tADBU PC_Mode2 or PC_Mode3 ZIN pin H width tZHL QCR:CGSC=0 ZIN pin L width tZLL QCR:CGSC=0 AIN/BIN rise and fall time from determined ZIN level tZABE QCR:CGSC=1 Determined ZIN level from AIN/BIN rise and fall time tABEZ QCR:CGSC=1 *: tCYCP indicates the APB bus clock cycle time. About the APB bus number which Quadrature Position/Revolution Counter is connected to, see 8 Block Diagram in this data sheet. AIN BIN tAUBU tBUAD tADBD tBDAU tAHL tALL tBHL tBLL |
|
