AB18X5 Real-Time Clock with Power
Management Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 22 of 37
Abracon Drawing #453568
Revision: C

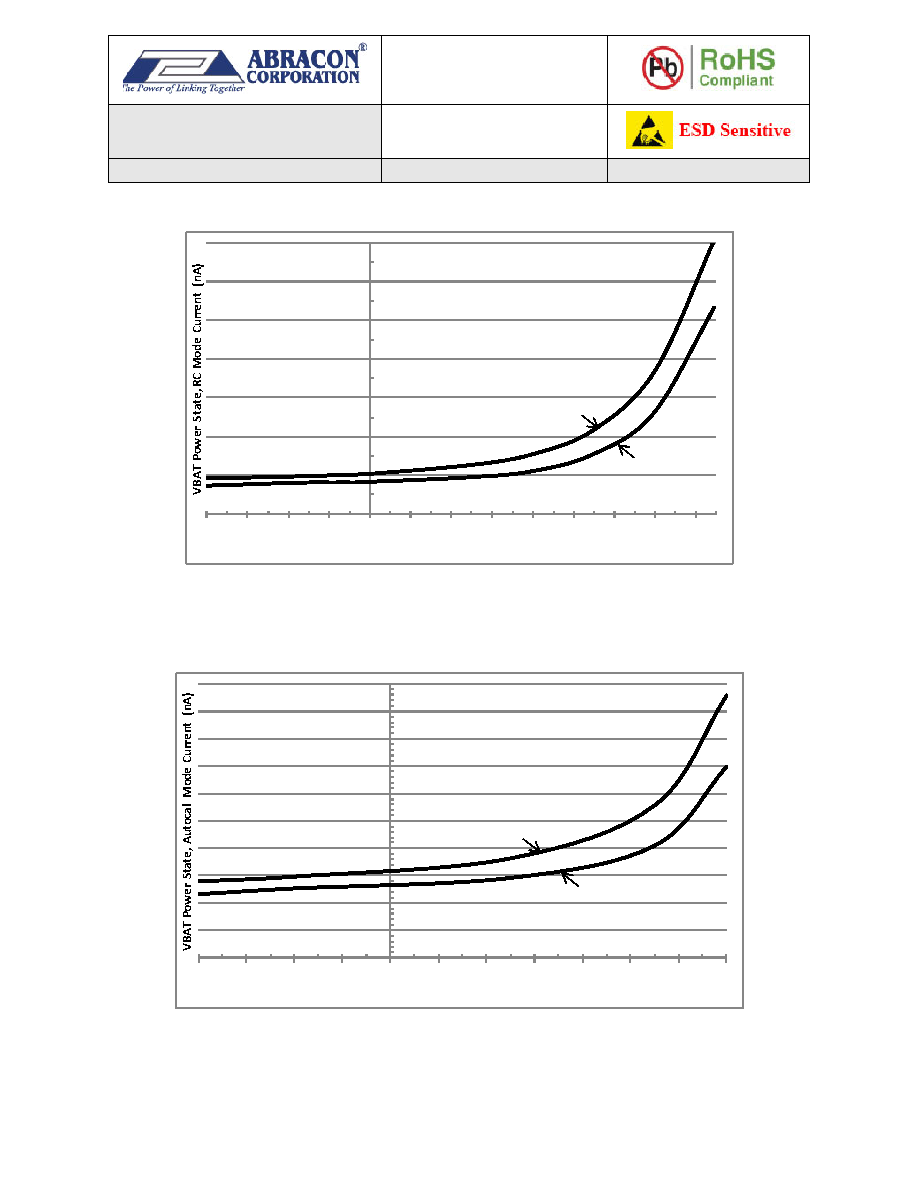

Figure 13 shows the typical VBAT power state operating current vs. temperature in RC mode.
Figure 13. Typical VBAT Current vs. Temperature in RC Mode
Figure 14 shows the typical VBAT power state operating current vs. temperature in RC Autocalibration
mode.
Figure 14. Typical VBAT Current vs. Temperature in RC Autocalibration Mode
5
15
25
35
45
55
65
75
‐40
‐30
‐20
‐10
0
10
20
304050607080
Temperature  (°C)
VBAT = 1.8V
VBAT = 3.0V
TA = 25 °C
5
10
15
20
25
30
35
40
45
50
55
‐40
‐30
‐20
‐10
0
10203040
50
6070
Temperature (°C)
VBAT = 1.8V
VBAT = 3.0V
TA = 25 °C
