AB18X5 Real-Time Clock with Power
Management Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 15 of 37
Abracon Drawing #453568
Revision: C

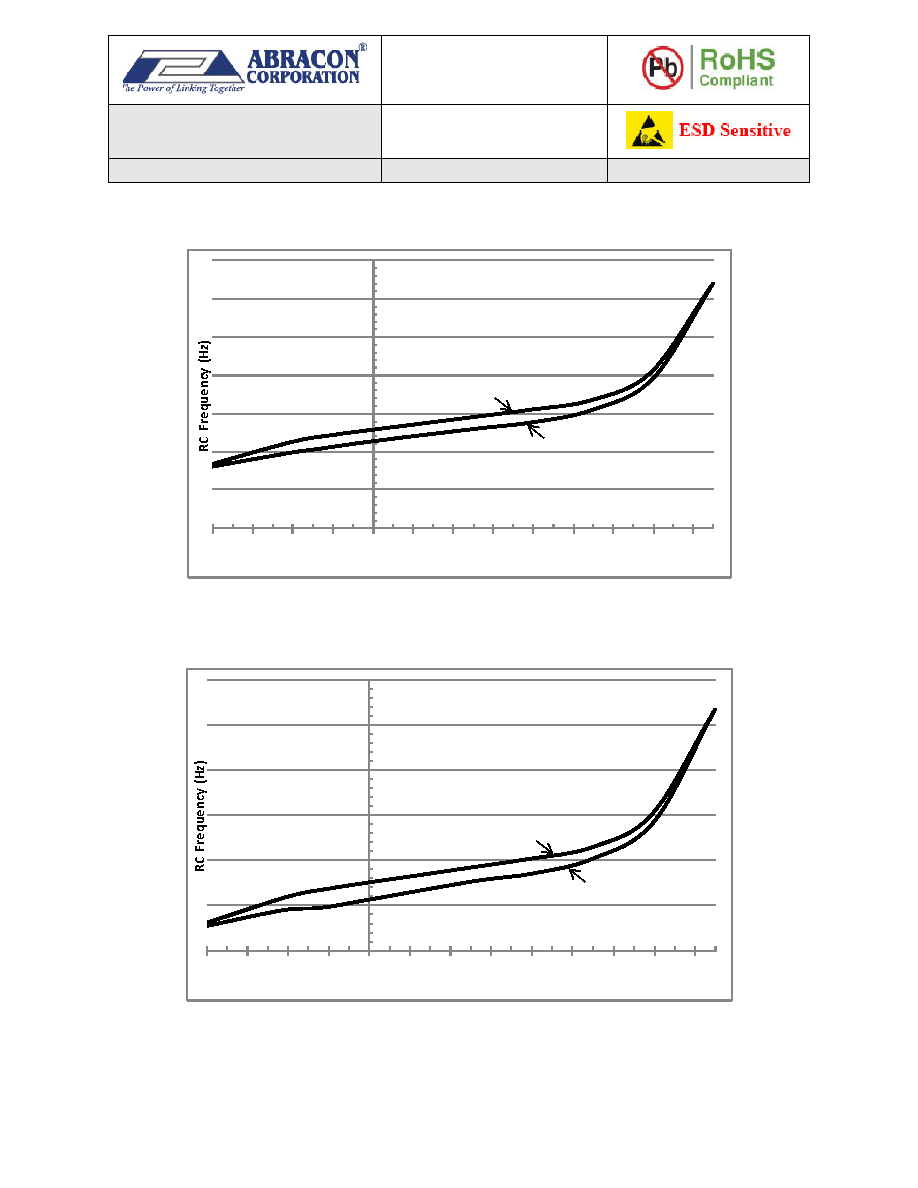

Figure 4 shows the typical calibrated RC oscillator frequency variation vs. temperature. RC oscillator
calibrated at 2.8V, 25°C.
Figure 4. Calibrated RC Oscillator Typical Frequency Variation vs. Temperature
Figure 5 shows the typical uncalibrated RC oscillator frequency variation vs. temperature.
Figure 5. Uncalibrated RC Oscillator Typical Frequency Variation vs. Temperature
115
120
125
130
135
140
145
150
‐40
‐30
‐20
‐10
0
102030
40
50
607080
Temperature (°C)
VCC = 1.8V
VCC = 3.0V
TA = 25 °C
115
120
125
130
135
140
145
‐40
‐30
‐20
‐10
0
102030
40
50
607080
Temperature (°C)
VCC = 1.8V
VCC = 3.0V
TA = 25 °C
