TDA7491P
Characterization curves
Doc ID 13540 Rev 6
21/42

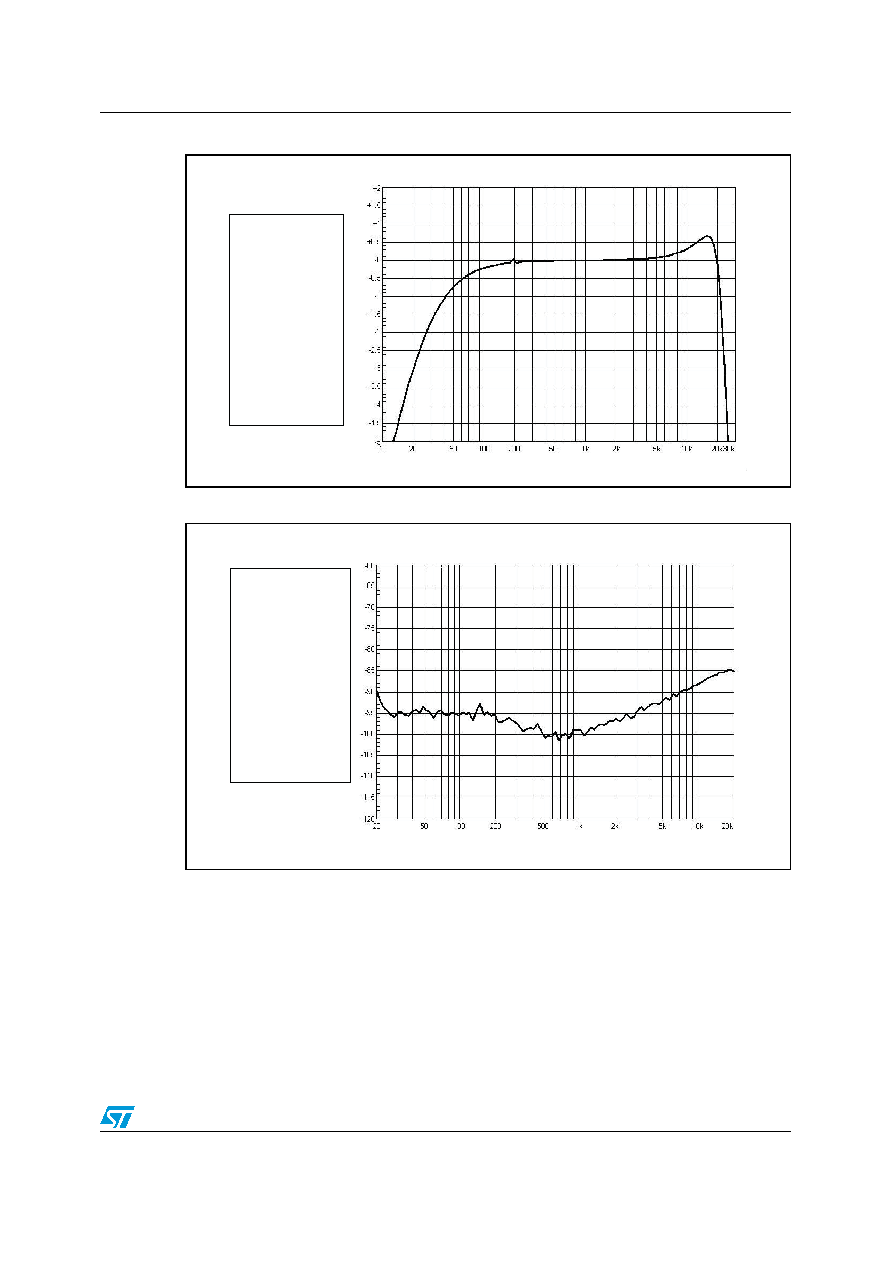

Figure 22.
Frequency response
Figure 23.
Crosstalk vs. frequency
Test Conditions:
Vcc = 11V
Rl = 6 ohm
Rosc = 39k ohm
Cosc = 100nF
Po = 1W
Gv = 20 dB
Tamb. = 25
˚C
Specification limits:
Typical:
Max: +/- 3 dB @20 -
20kHz
Amplitude(dB)
Frequency(Hz)
Crosstalk (dB)
Frequency (Hz)
Test Conditions:
Vcc = 11V
Rl = 6 ohm
Rosc = 39k ohm
Cosc = 100nF
Po = 1W
Gv = 20 dB
Tamb. = 25
˚C
Specification limits:
Typical:
Crosstalk < - 85 dB
