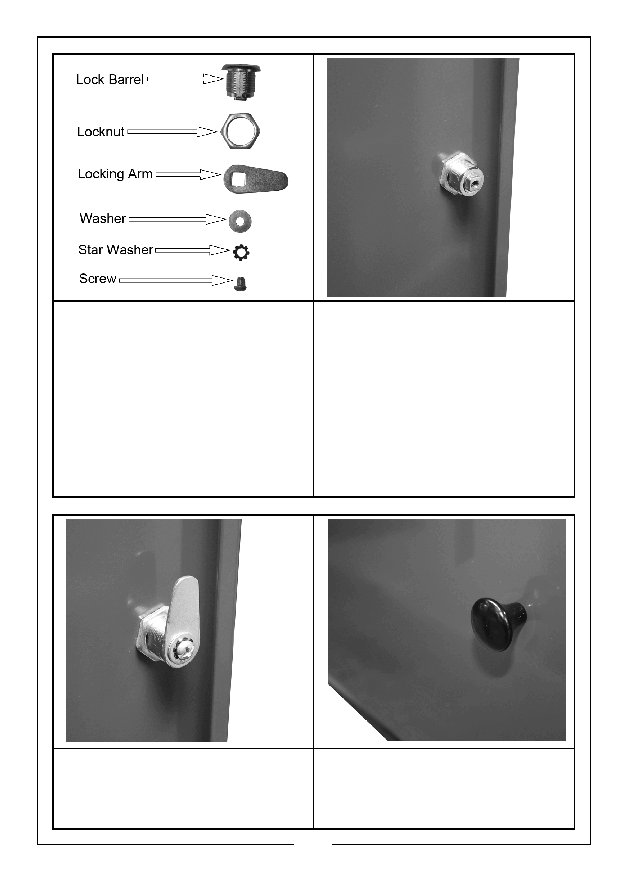

10. Place the key in the lock and

turn it so that the window on the

front of the lock turns green.

11. Remove the screw and star

washer from the rear of the

lock.

12. Remove the washer and

locking arm.

13. Remove the locknut from the

lock barrel.

14. Insert the lock barrel (with the

green window at the top)

through the door and secure

using the locknut as shown.

15. Replace the locking arm and

washer and secure using the

star washer and screw.

16. Check the lock and if necessary

adjust the orientation of the

locking arm.

17. Fit the door knob.
