ADPA7005AEHZ-R7 Fiches technique(PDF) 13 Page - Analog Devices

No de pièce ADPA7005AEHZ-R7
Description  18 GHz to 44 GHz, GaAs, pHEMT, 32 dBm (>1 W), MMIC Power Amplifier
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

ADPA7005AEHZ-R7 Fiches technique(HTML) 13 Page - Analog Devices

Back Button ADPA7005AEHZ-R7 Datasheet HTML 9Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 10Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 11Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 12Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 13Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 14Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 15Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 16Page - Analog Devices ADPA7005AEHZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 24 page
background image
Data Sheet
ADPA7005
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 13 of 24

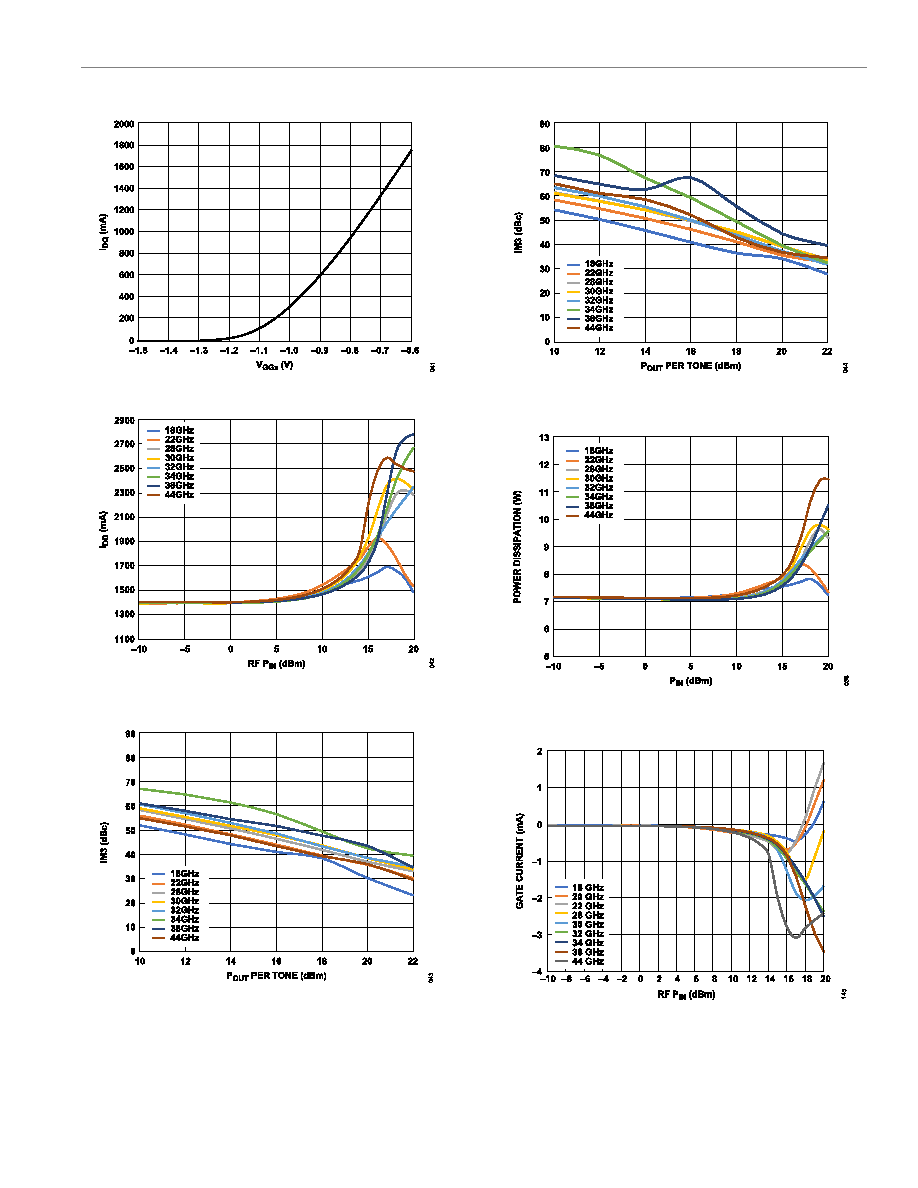

Figure 40. IDQ vs. VGGx
Figure 41. IDD vs. RF PIN at Various Frequencies, VDD = 5 V,
IDQ = 1400 mA
Figure 42. Third-Order Intermodulation Distortion (IM3) vs. POUT per Tone,
VDD = 4 V, IDQ = 1400 mA
Figure 43. Third-Order Intermodulation Distortion (IM3) vs. POUT per Tone,
VDD = 5 V, IDQ = 1400 mA
Figure 44. Power Dissipation vs. PIN at TCASE = 85°C, VDD = 5 V,
IDQ = 1400 mA
Figure 45. Gate Current (IGG) vs. RF PIN at Various Frequencies,
VDD = 5 V, IDQ = 1400 mA
