Data Sheet
ADPA7005
INTERFACE SCHEMATICS
analog.com
Rev. A | 7 of 24

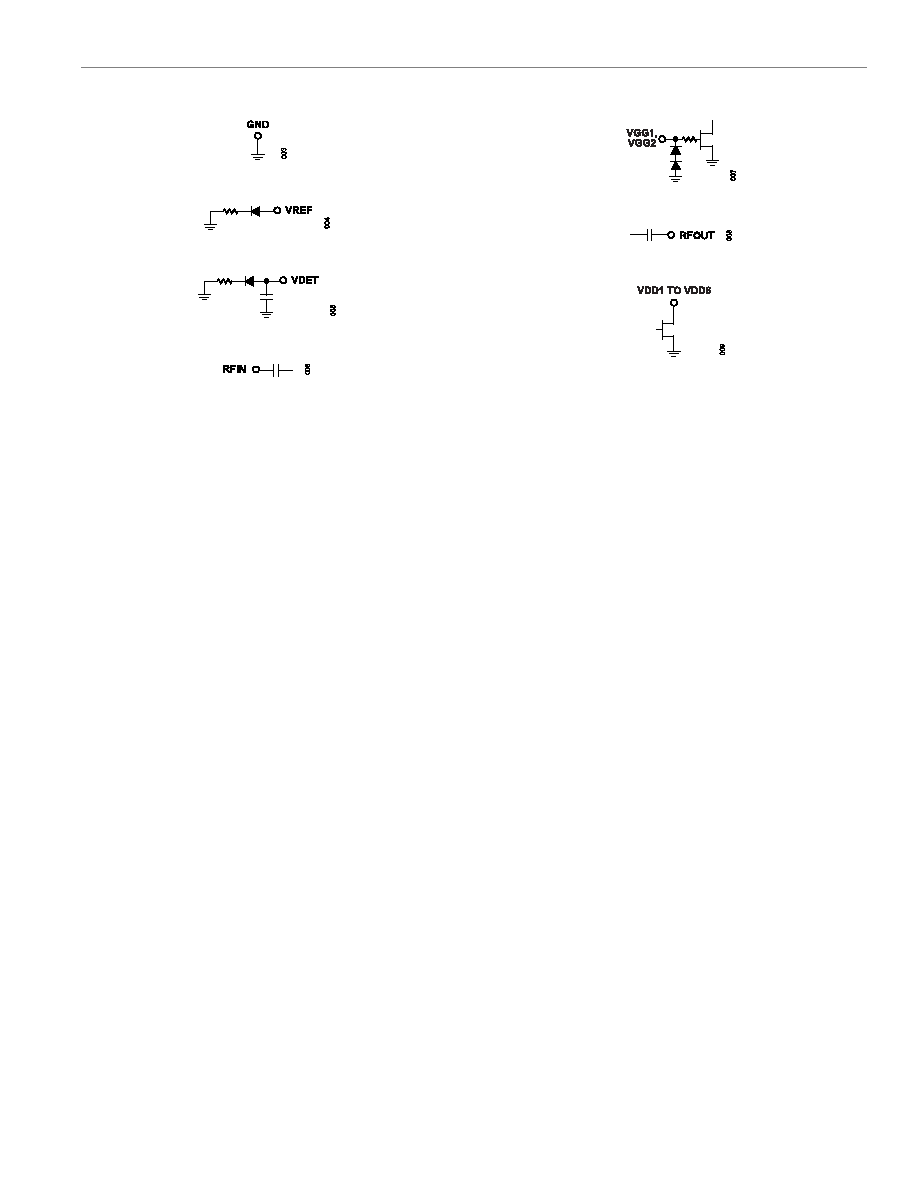

Figure 3. GND Interface Schematic
Figure 4. VREF Interface Schematic
Figure 5. VDET Interface Schematic
Figure 6. RFIN Interface Schematic
Figure 7. VGG1, VGG2 Interface Schematic
Figure 8. RFOUT Interface Schematic
Figure 9. VDD1 to VDD6 Interface Schematic
