Data Sheet
ADPA7005

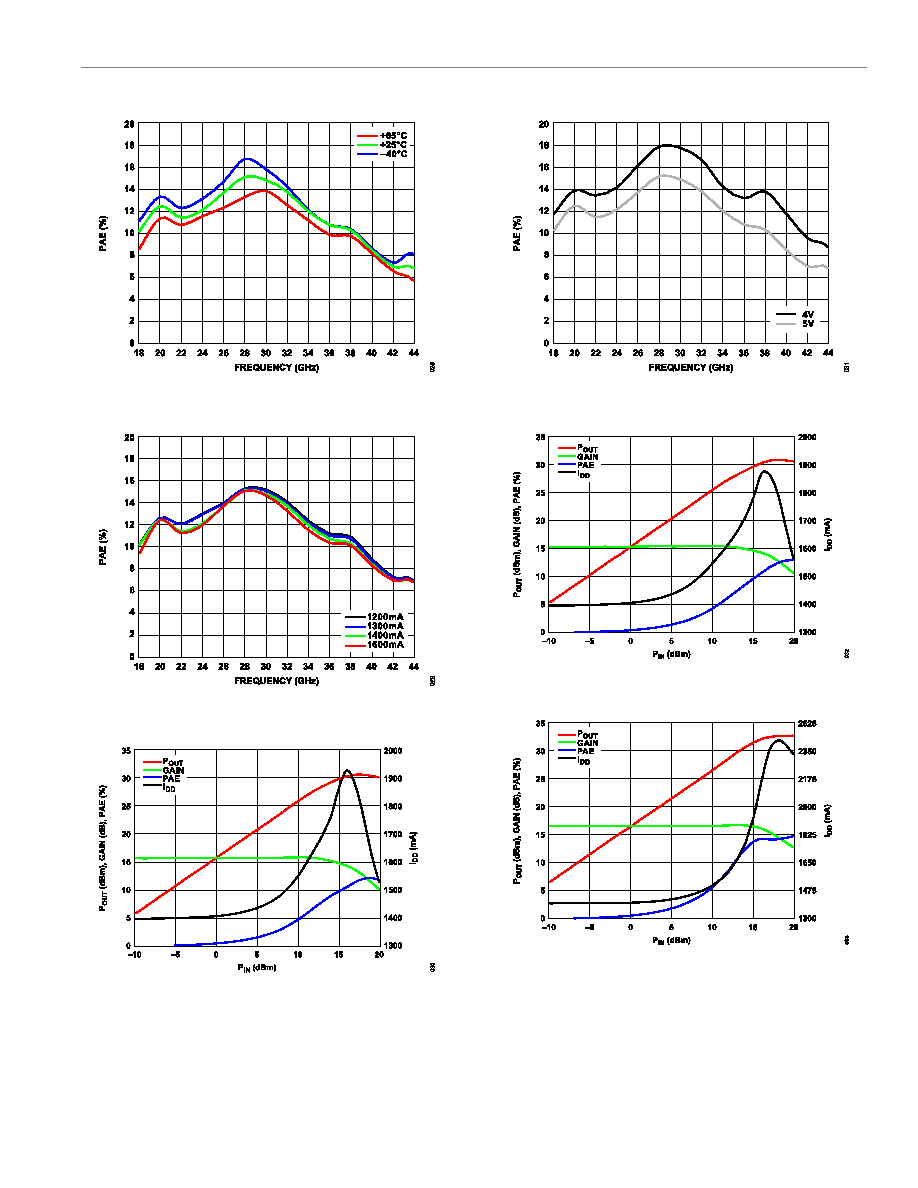

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 11 of 24
Figure 28. Power Added Efficiency (PAE) vs. Frequency for Various
Temperatures, VDD = 5 V, IDQ = 1400 mA, PAE Measured at PSAT
Figure 29. PAE vs. Frequency for Various IDQ, VDD = 5 V, IDQ = 1400 mA,
PAE Measured at PSAT
Figure 30. POUT, Gain, PAE, and Drain Current with RF Applied (IDD) vs.
PIN, 22 GHz, VDD = 5 V, IDQ = 1400 mA
Figure 31. PAE vs. Frequency for Various VDD, IDQ = 1400 mA,
PAE Measured at PSAT
Figure 32. POUT, Gain, PAE, and IDD vs. PIN, 20 GHz, VDD = 5 V,
IDQ = 1400 mA
Figure 33. POUT, Gain, PAE, and IDD vs. PIN, 30 GHz, VDD = 5 V,
IDQ = 1400 mA
