Data Sheet
ADA4870
OUTLINE DIMENSIONS
©2014-2023 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
One Analog Way, Wilmington, MA 01887-2356, U.S.A.
Rev. B | 24 of 24
1
0.50
BSC
BOTTOM VIEW
TOP VIEW
SIDE VIEW
48
13
24
36
37
0.45
0.40
0.35
0.80
0.75
0.70
0.05 MAX
0.02 NOM
0.203 REF
COPLANARITY
0.08
0.30
0.25
0.20
7.10
7.00 SQ
6.90
0.20 MIN
COMPLIANT TO JEDEC STANDARDS MO-220-WKKD-4
4.30
4.20 SQ
4.10
FOR PROPER CONNECTION OF
THE EXPOSED PAD, REFER TO
THE PIN CONFIGURATION AND
FUNCTION DESCRIPTIONS
SECTION OF THIS DATA SHEET.
EXPOSED
PAD
PIN 1
INDICATOR AREA OPTIONS
(SEE DETAIL A)
DETAIL A
(JEDEC 95)
SEATING
PLANE
PIN 1
INDICATOR
AREA

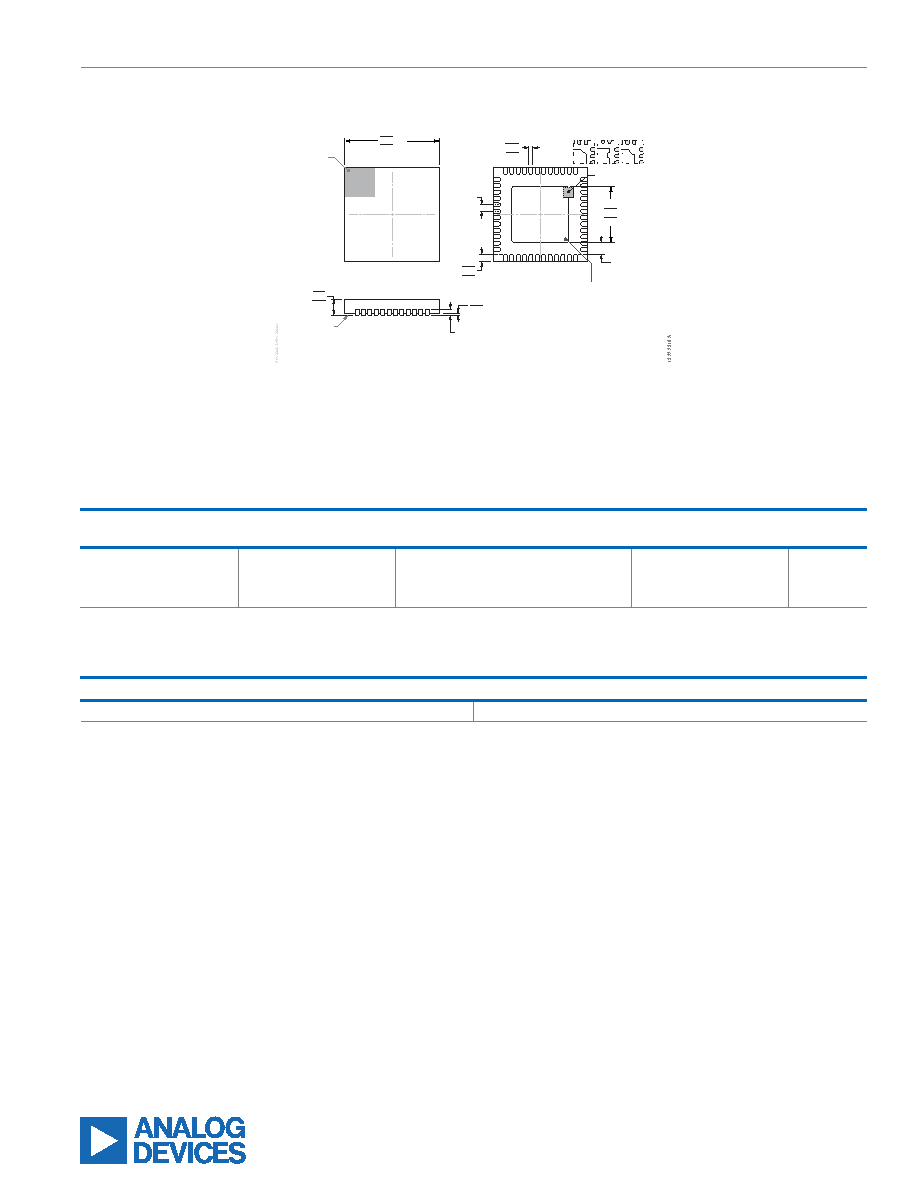

Figure 81. 48-Lead Dual-Pad Lead Frame Chip Scale Package [LFCSP]
7 mm × 7 mm Body and 0.75 mm Package Height
(CP-48-17)
Dimensions shown in millimeters
Updated: October 12, 2023
ORDERING GUIDE
Model1
Temperature Range
Package Description
Packing Quantity
Package
Option
ADA4870ACPZ
-40°C to +85°C
48-lead LFCSP (7 mm x 7 mm x 0.75 mm)
CP-48-17
ADA4870ACPZ-R7
-40°C to +85°C
48-lead LFCSP (7 mm x 7 mm x 0.75 mm)
Reel, 750
CP-48-17
ADA4870ACPZ-RL
-40°C to +85°C
48-lead LFCSP (7 mm x 7 mm x 0.75 mm)
Reel, 2500
CP-48-17
1 Z = RoHS Compliant Part.
EVALUATION BOARDS
Model1
Description
EVAL-ADA4870EBZ
Evaluation Board
1 Z = RoHS Compliant Part.
