Data Sheet
ADA4870
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 14 of 24

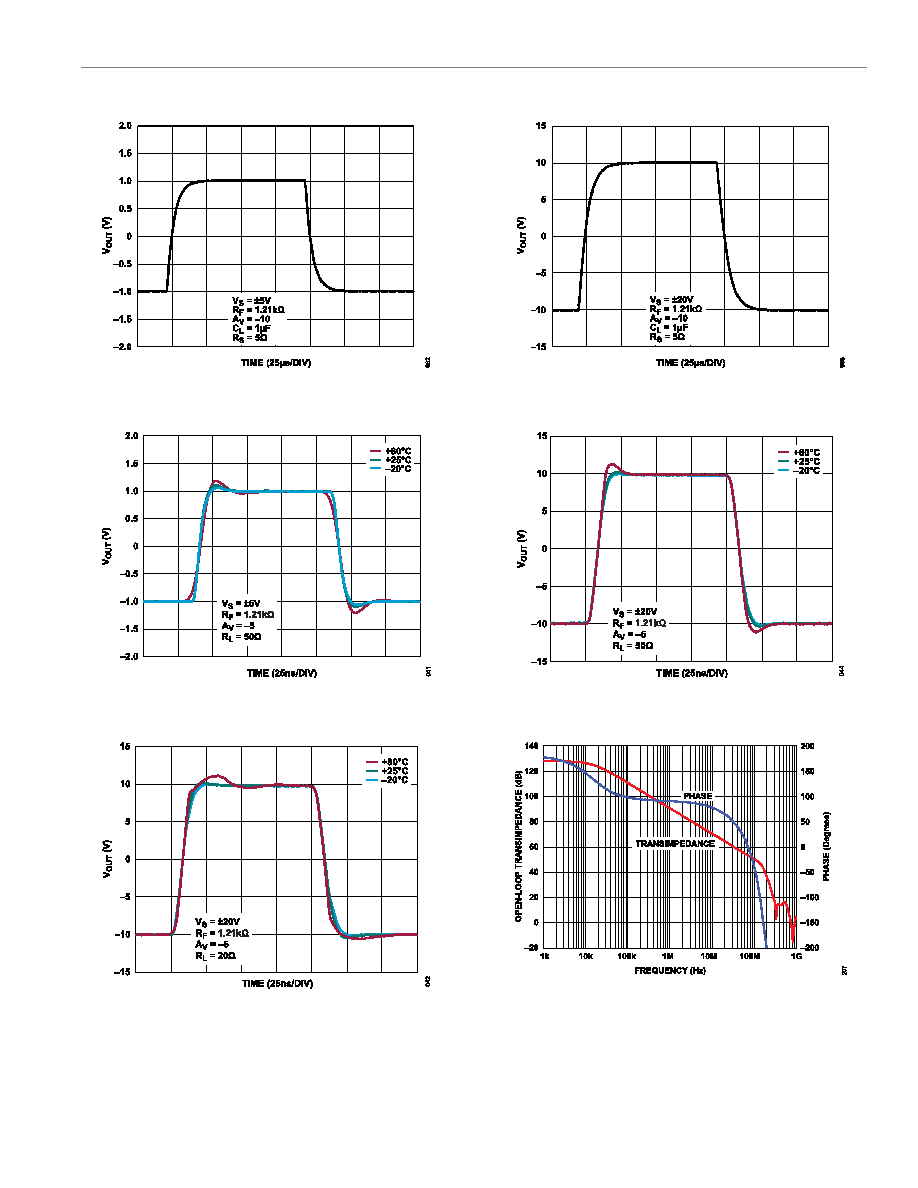

Figure 40. Small Signal Pulse Response, AV = −10, VS = ±5 V, VOUT = 2 V p-p,
RF = 1.21 kΩ, CL = 1 μF, RS = 5 Ω
Figure 41. Small Signal Pulse Response vs. Case Temperature, AV = −5, VS =
±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, RL = 50 Ω
Figure 42. Large Signal Pulse Response vs. Case Temperature, AV = −5, VS =
±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, RL = 20 Ω
Figure 43. Large Signal Pulse Response, AV = −10, VS = ±20 V, VOUT = 20 V
p-p, RF = 1.21 kΩ, CL = 1μF, RS = 5 Ω
Figure 44. Large Signal Pulse Response vs. Case Temperature, AV = −5, VS =
±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, RL = 50 Ω
Figure 45. Open-Loop Transimpedance and Phase vs. Frequency
