Data Sheet

ADA4870

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 11 of 24

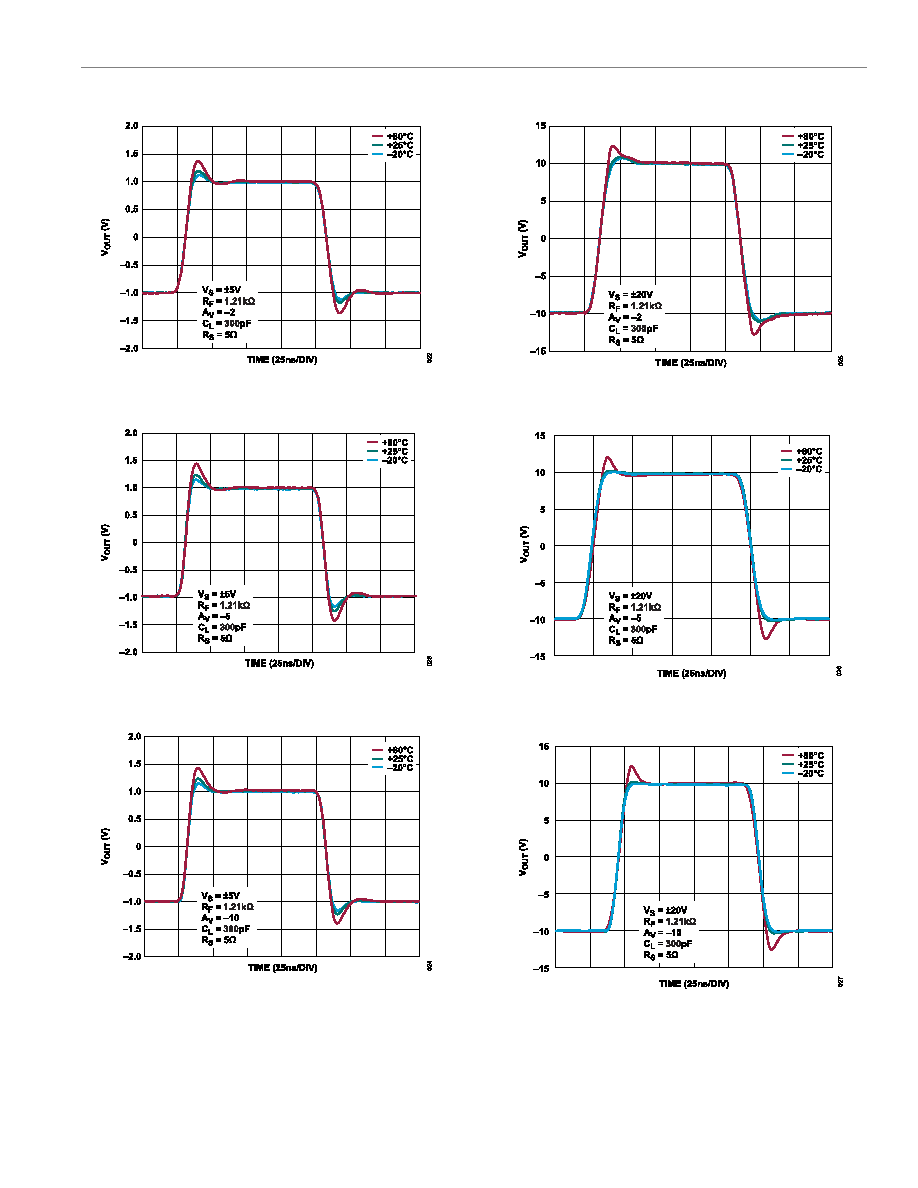

Figure 22. Small Signal Pulse Response vs. Case Temperature, AV = −2, VS =

±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 23. Small Signal Pulse Response vs. Case Temperature, AV = −5, VS =

±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 24. Small Signal Pulse Response vs. Case Temperature, AV = −10,

VS = ±5 V, VOUT = 2 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 25. Large Signal Pulse Response vs. Case Temperature, AV = −2, VS =

±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 26. Large Signal Pulse Response vs. Case Temperature, AV = −5, VS =

±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω

Figure 27. Large Signal Pulse Response vs. Case Temperature, AV = −10,

VS = ±20 V, VOUT = 20 V p-p, RF = 1.21 kΩ, CL = 300 pF, RS = 5 Ω
