Data Sheet
ADRF5250
Rev. 0 | Page 9 of 15
INPUT POWER COMPRESSION AND THIRD-ORDER INTERCEPT (IP3)
40
20
0.5
6.0
FREQUENCY (GHz)
22
24
26
28
30
32
34
36
38
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
RFC TO RF1
RFC TO RF2
RFC TO RF3
RFC TO RF4
RFC TO RF5

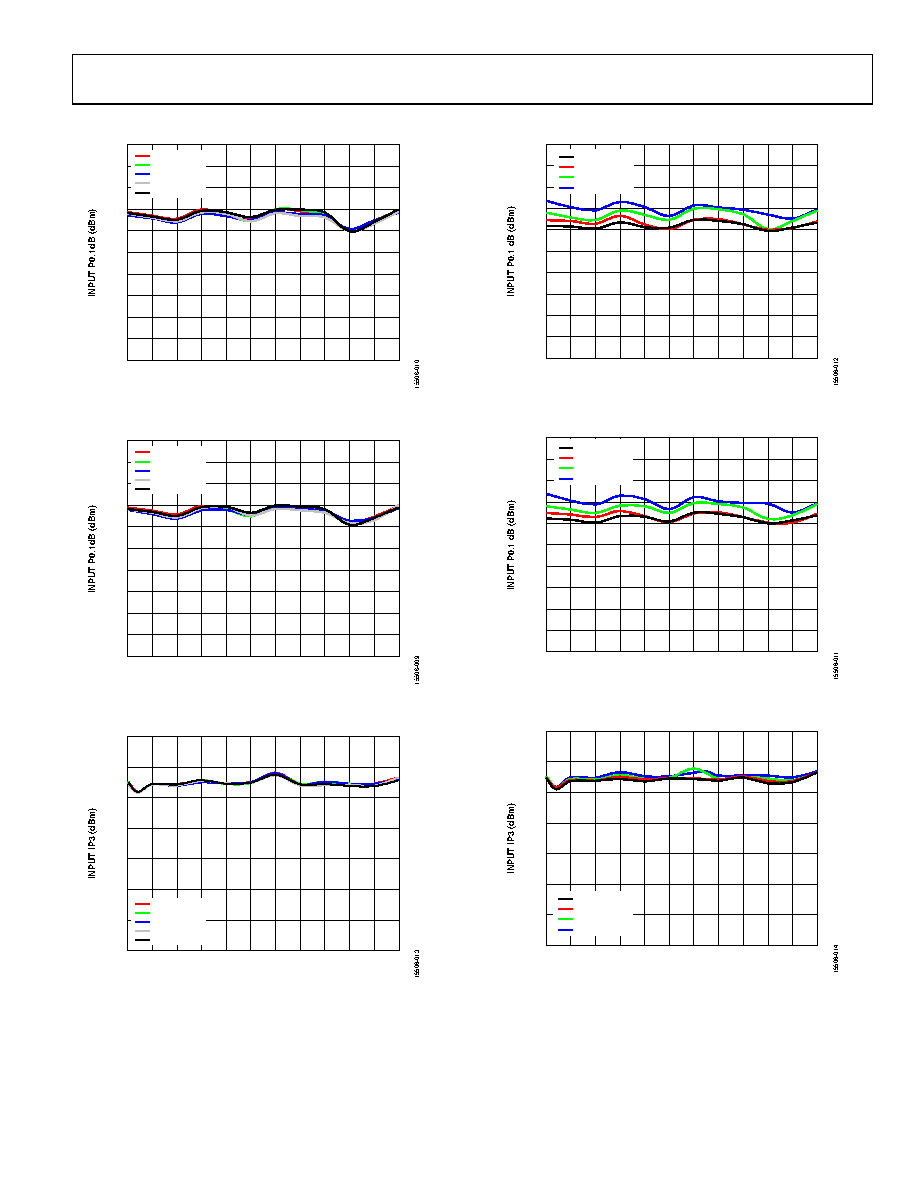

Figure 10. Input 0.1 dB Power Compression (P0.1dB) vs. Frequency,
VDD = 3.3 V, VSS = 0 V
40
20
0.5
6.0
FREQUENCY (GHz)
22
24
26
28
30
32
34
36
38
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
RFC TO RF1
RFC TO RF2
RFC TO RF3
RFC TO RF4
RFC TO RF5
Figure 11. Input 0.1 dB Power Compression (P0.1dB) vs. Frequency,
VDD = 5 V, VSS = 0 V
65
30
35
40
45
50
55
60
0.5
6.0
FREQUENCY (GHz)
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
RFC TO RF1
RFC TO RF2
RFC TO RF3
RFC TO RF4
RFC TO RF5
Figure 12. Input IP3 vs. Frequency, VDD = 5 V, VSS = 0 V
40
20
0.5
6.0
FREQUENCY (GHz)
22
24
26
28
30
32
34
36
38
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
TA = +105°C
TA = +85°C
TA = +25°C
TA = –40°C
Figure 13. Input 0.1 dB Power Compression vs. Frequency over Temperature,
VDD = 3.3 V, VSS = 0 V
40
20
0.5
6.0
FREQUENCY (GHz)
22
24
26
28
30
32
34
36
38
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
TA = +105°C
TA = +85°C
TA = +25°C
TA = –40°C
Figure 14. Input 0.1 dB Power Compression (P0.1dB) vs. Frequency over
Temperature, VDD = 5 V, VSS = 0 V
65
30
35
40
45
50
55
60
0.5
6.0
FREQUENCY (GHz)
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
TA = +105°C
TA = +85°C
TA = +25°C
TA = –40°C
Figure 15. Input IP3 vs. Frequency over Temperature,
VDD = 5 V, VSS = 0 V
