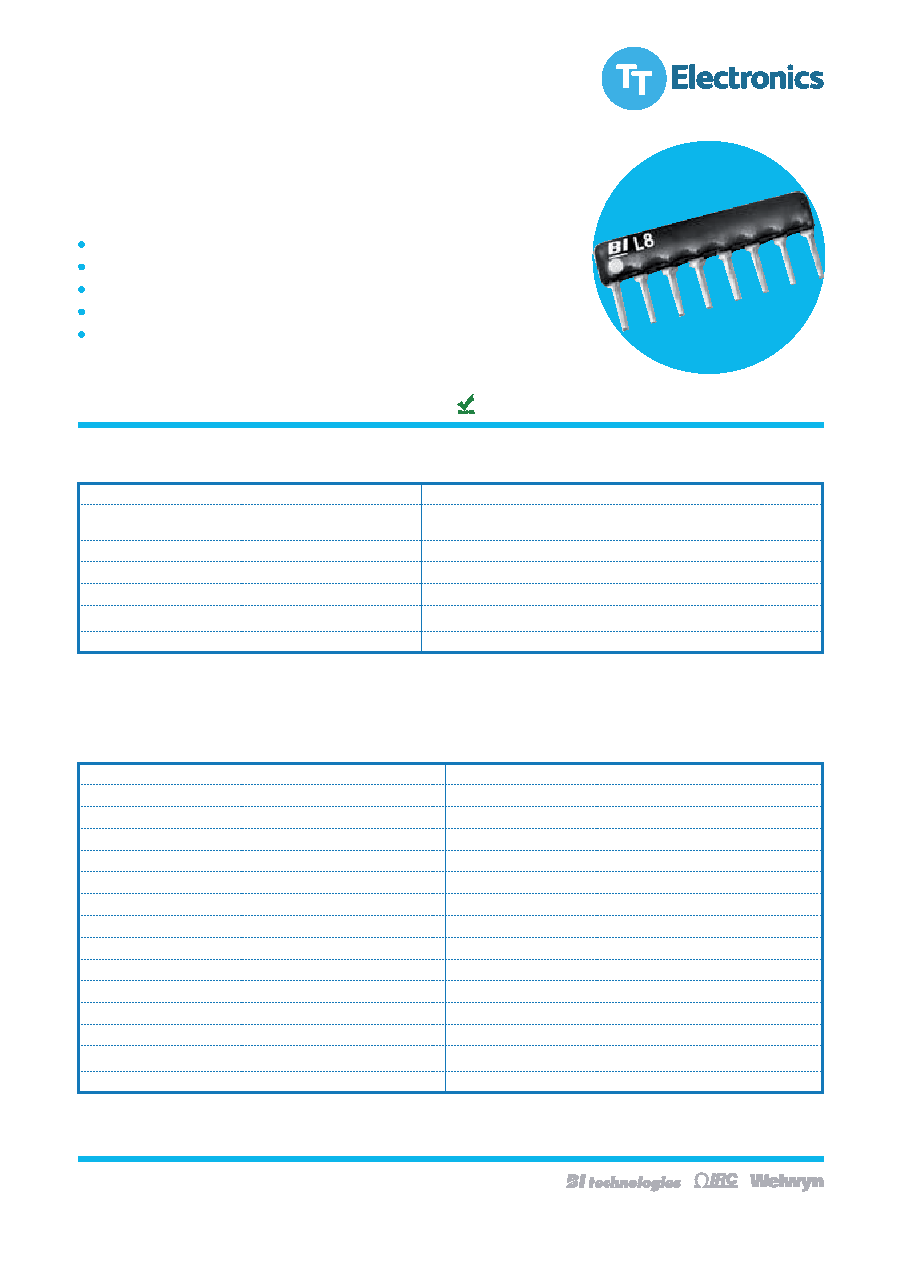

SIL Resistor Network

L Series

Thick Film

LowProfileSIP

ConformalCoated

ResistorNetworks

RoHSCompliant

Electrical

Environmental

StandardResistanceRange,Ohms

1%: 22R - 1M; 2%:10R - 5M6; 5%: 10R - 10M

StandardResistanceTolerance,at25°C

±2%

Optional:±1%(FTol.),±5%(JTol.)

OperatingTemperatureRange

-55°Cto+125°C

TemperatureCoefficientofResistance

±100ppm/°C(<50Ohms=±250ppm/°C)

TemperatureCoefficientofResistance,Tracking

±50ppm/°C

MaximumOperatingVoltage

100Vdcor√PR

InsulationResistance

≥10,000Megohms

ThermalShockplusPowerConditioning

ΔR0.70%

ShortTimeOverload

ΔR0.25%

TerminalStrength

ΔR0.25%

MoistureResistance

ΔR0.50%

MechanicalShock

ΔR0.25%

Vibration

ΔR0.25%

LowTemperatureStorage

ΔR0.25%

HighTemperatureExposure

ΔR0.50%

LoadLife,1,000Hours

ΔR1.00%

ResistancetoSolderHeat(PerMIL-STD-202,Method210,Cond.B)

ΔR0.25%

DielectricWithstandVoltage

200Vfor1minute

MarkingPermanency

MIL-STD202,Method215

LeadSolderability

MIL-STD202,Method208

Flammability

UL-94V-ORated

StorageTemperatureRange

-55°Cto+150°C

Specificationssubjecttochangewithoutnotice.

Make Possible

Resistors

AllpartsarePb-freeandcomplywithEUDirective2011/65/EU(RoHS2)

10.14

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
