CH1 1V BW

CH2 10mV

M2µs

A CH3

2.02V

T 10.00%

VOUT

VIN

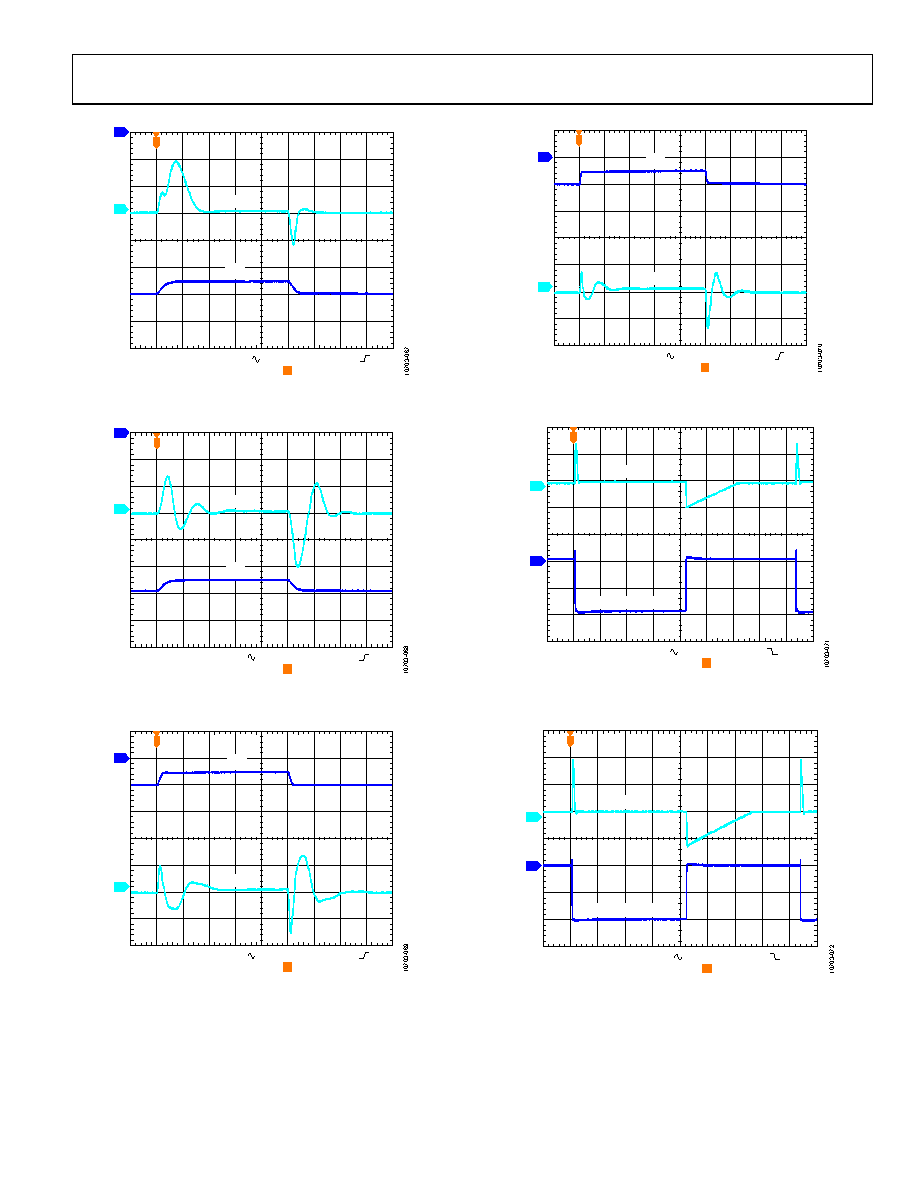

Figure 69. Line Transient Response, 500 mV Step, VOUT = −5 V, ILOAD = −200 mA

CH1 1V BW

CH2 5mV

M2µs

A CH3

2.02V

T 10.00%

VOUT

VIN

Figure 70. Line Transient Response, 500 mV Step, VOUT = −5 V, ILOAD = −10 mA

CH1 1V BW

CH2 2mV

M4µs

A CH3

2.52V

T 10.00%

VOUT

VIN

Figure 71. Line Transient Response, 500 mV Step, VOUT = −15 V,

Noise Reduction Network, ILOAD = −200 mA

CH1 1V BW

CH2 2mV

M10µs

A CH3

2.52V

T 10.00%

VOUT

VIN

Figure 72. Line Transient Response, 500 mV Step, VOUT = −15 V,

Noise Reduction Network, ILOAD = −10 mA

CH1 100mA BW CH2 50mV

M40µs A CH1

–122mA

T 10.40%

VOUT

LOAD CURRENT

Figure 73. Load Transient Response, VOUT = −1.22 V, ILOAD = −1 mA to −200 mA,

Load Step = 1 A/µs

CH1 100mA BW

CH2 50mV

W M40µs

A CH1

–122mA

T 10.60%

VOUT

LOAD CURRENT

Figure 74. Load Transient Response, VOUT = −3 V, ILOAD = −1 mA to −200 mA,

Load Step = 1 A/µs
