ADP7182
Data Sheet
Rev. I | Page 28 of 31
PCB LAYOUT CONSIDERATIONS
Place the input capacitor as close as possible to the VIN and GND
pins. Place the output capacitor as close as possible to the VOUT
and GND pins. Use of 1206 or 0805 size capacitors and resistors
achieves the smallest possible footprint solution on boards where
area is limited.

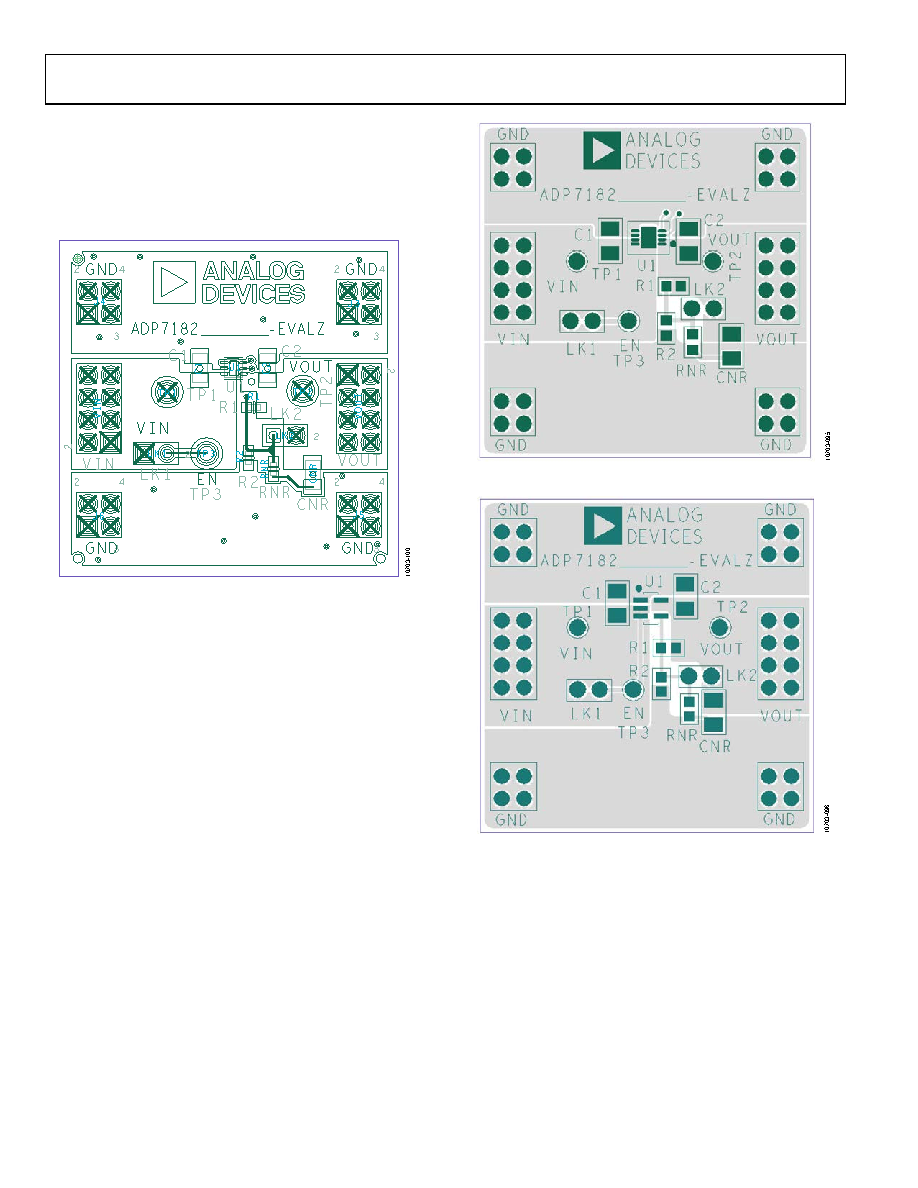

Figure 101. Example of the 6-Lead LFCSP PCB Layout
Figure 102. Example of the 8-Lead LFCSP PCB Layout
Figure 103. Example of the 5-Lead TSOT PCB Layout
