 4 / 30 page
background image
Application schematic
STLED25
4/30
Doc ID 022323 Rev 3
1
Application schematic

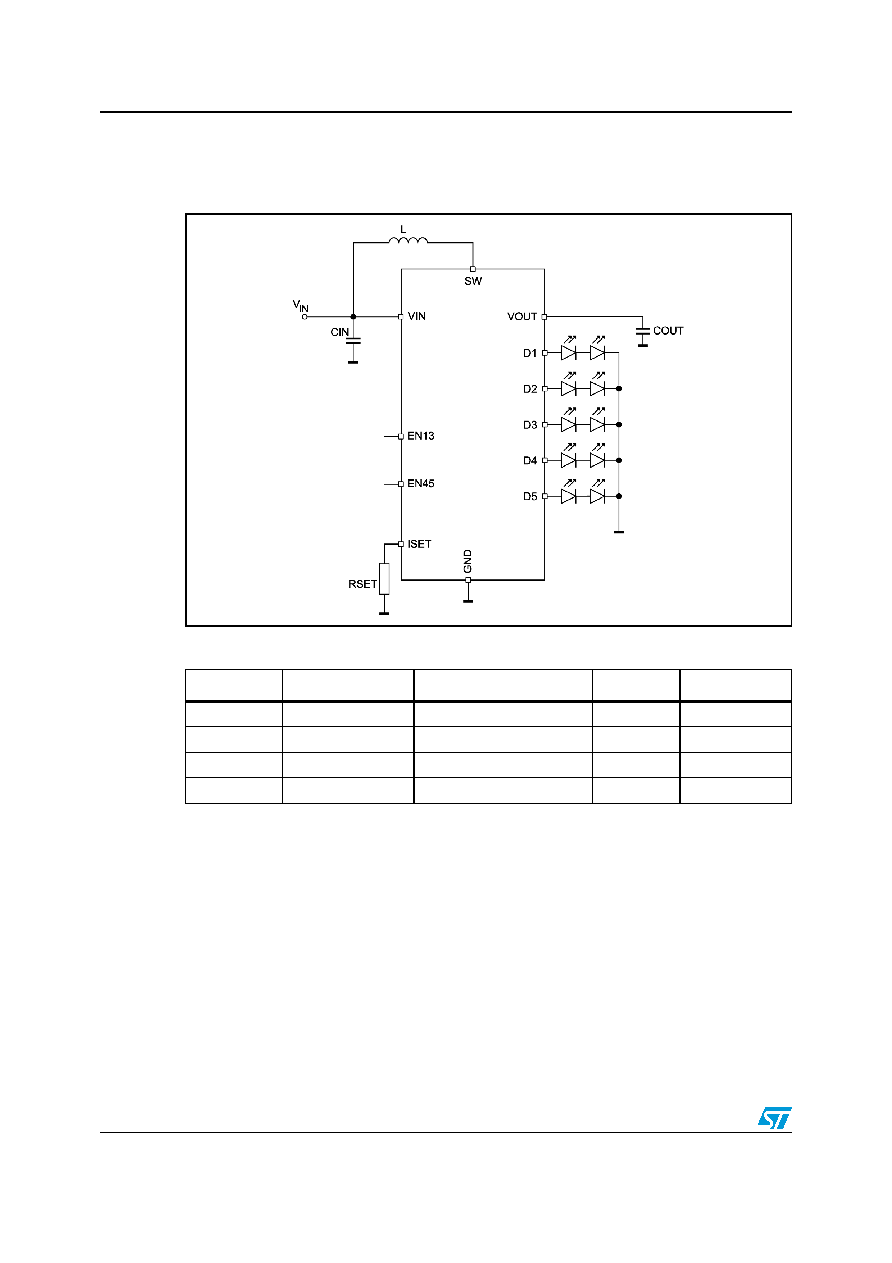

Figure 1.
STLED25 application schematic
Note:
All the above components refer to a typical application. Operation of the device is not limited
to the choice of these external components.
Table 2.
Typical external components
Component
Manufacturer
Part number
Value
Size
CIN
Murata
GRM155R60J155M
1.5 µF
0402
COUT
Murata
GRM219R61A106ME47
10 µF
0805
L
Samsung
CIG21K4R7SCE
4.7 µH
0805
RSET
25 k (1)
1.
For 20 mA per branch.
0402
