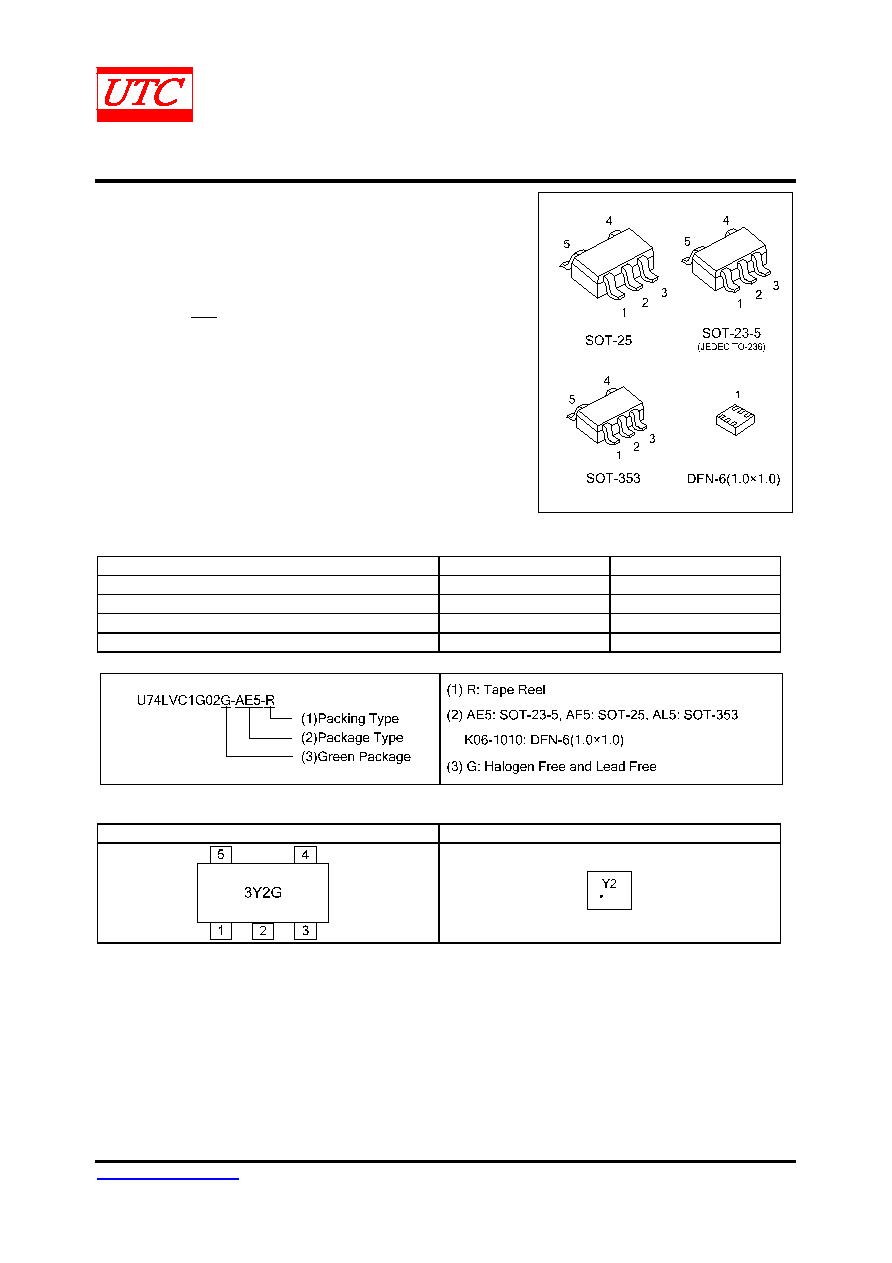

SINGLE 2-INPUT NOR GATE



DESCRIPTION

The U74LVC1G02 is a 2-input NOR gate device which provides

the Function

Y=A+B in positive logic.

This device has power-down protective circuit preventing device

from destruction when it is powered down.



FEATURES

* Operation Voltage Range: 1.6V ~ 5.5V

* Low Power Current: ICC=10μA (Max.)

* ±24mA Output Drive (VCC=3.0V)

* Power Down Protection



ORDERING INFORMATION

Ordering Number

Package

Packing

U74LVC1G02G-AE5-R

SOT-23-5

Tape Reel

U74LVC1G02G-AF5-R

SOT-25

Tape Reel

U74LVC1G02G-AL5-R

SOT-353

Tape Reel

U74LVC1G02G-K06-1010-R

DFN-6(1.0×1.0)

Tape Reel



MARKING

SOT-23-5 / SOT-25 / SOT-353

DFN-6(1.0×1.0)
