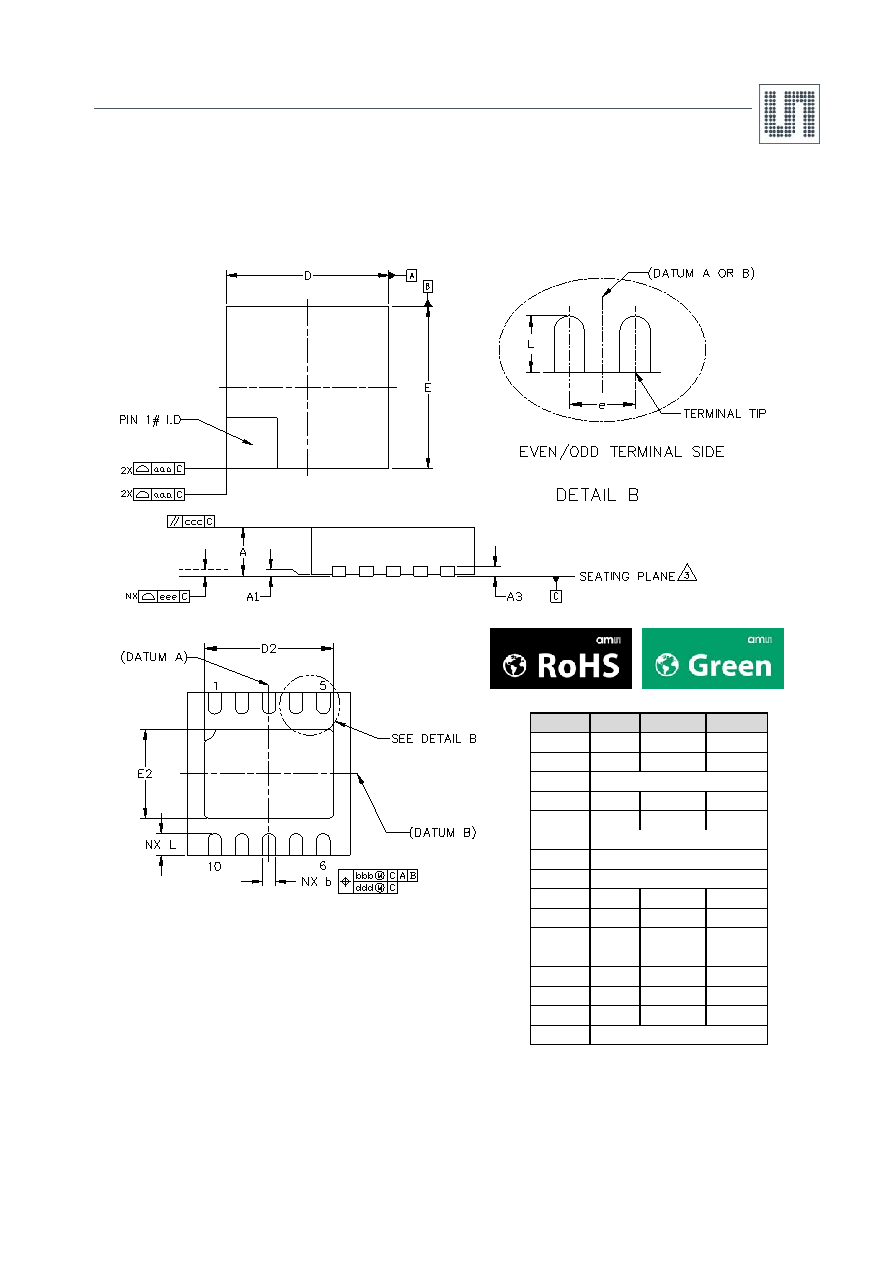

37 / 42 page  www.ams.com Revision 1.0 37 - 42 AS3953 Datasheet - P ac k a ge D ra w i n gs a nd M a r ki n gs 9 Package Drawings and Markings The device is available in a MLPD (3x3x0.9mm) 10-pin, WL-CSP 10-bumps package. Gold bumped dies are also available. Figure 15. MLPD (3x3x0.9mm) 10-pin Package Diagram Marking: XXXX - Encoded Date Code. XXXX AS39 Notes: 1. Dimensions and tolerancing conform to ASME Y14.5M-1994. 2. All dimensions are in millimeters. Angles are in degrees. 3. Coplanarity applies to the exposed heat slug as well as the terminal. 4. Radius on terminal is optional. 5. N is the total number of terminals. Symbol Min Nom Max A 0.80 0.90 1.00 A1 0 0.02 0.05 A3 0.20 REF L 0.30 0.40 0.50 b 0.18 0.25 0.30 D 3.00 BSC E 3.00 BSC e 0.50 BSC D2 2.23 2.38 2.48 E2 1.49 1.64 1.74 aaa - 0.15 - bbb - 0.10 - ccc - 0.10 - ddd - 0.05 - eee - 0.08 - N10 53A |
|
