C
C-45
www.ittcannon.com

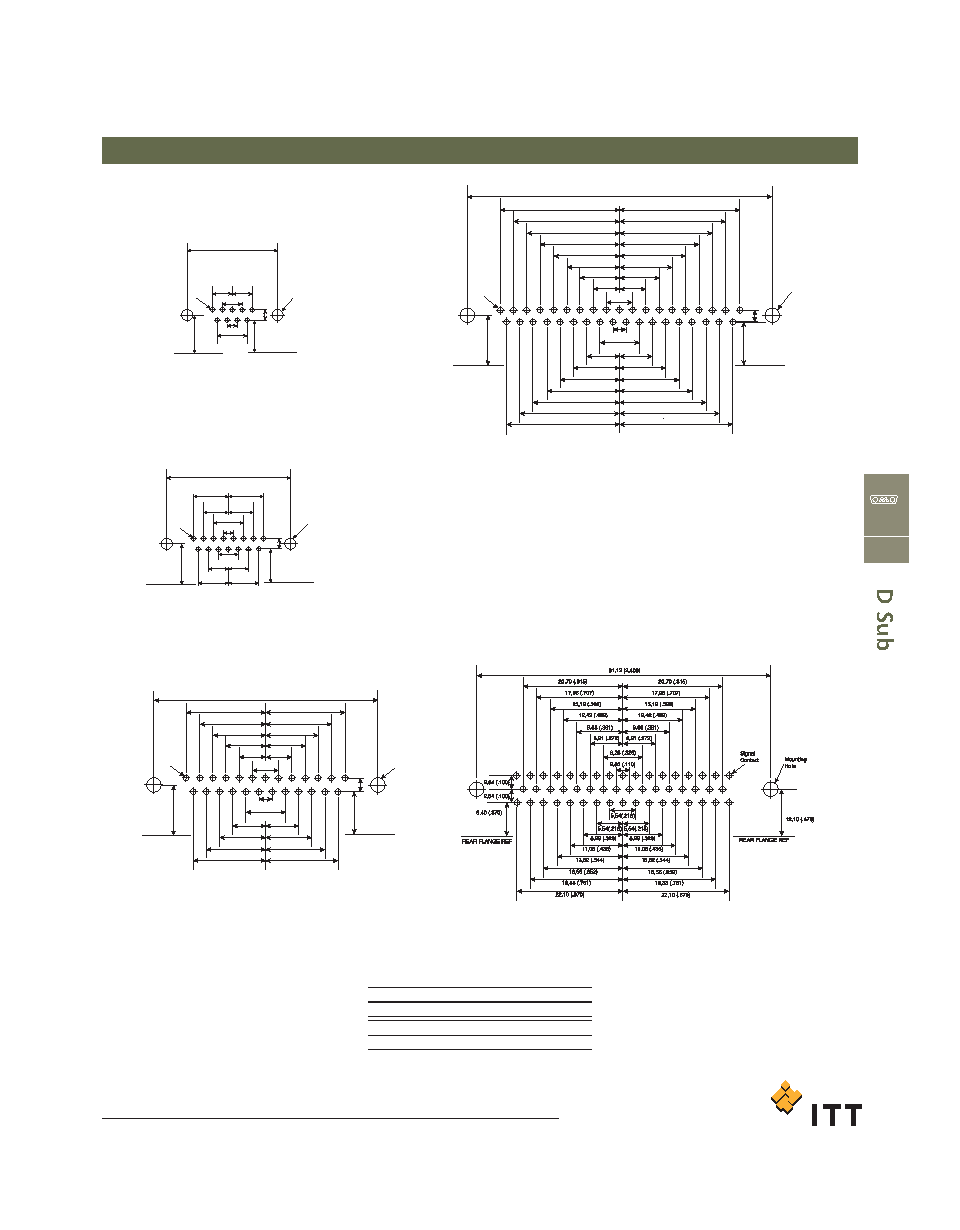

D*M Standard Density
Straight PCB Hole Pattern
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
5,49
(.216)
5,49
(.216)
5,49(.216)
8,23 (.324)
Mounting
Hole
Signal
Contact
2,74 (.108)
25,00 (.984)
2,54 (.100)
REAR FLANGE REF
REAR FLANGE REF
10,90 (.429)
9,40 (.370)
33,32 (1.312)
8,23 (.324)
8,23 (.324)
5,49
(.216)
5,49
(.216)
5,49
(.216)
8,23 (.324)
6,86
(.270)
6,86
(.270)
9,60 (.378)
9,60 (.378)
Mounting
Hole
Signal
Contact
2,74 (.108)
2,54 (.100)
9,40 (.370)
10,90 (.429)
REAR FLANGE REF
REAR FLANGE REF
5,54(.218) 5,54(.218)
16,56 (.652)
13,82 (.544)
11,05 (.435)
8,28 (.326)
16,56 (.652)
13,82 (.544)
11,05 (.435)
8,28 (.326)
5,54(.218)
8,28 (.326)
12,42 (.489)
15,19 (.598)
6,91 (.272)
9,68 (.381)
12,42 (.489)
15,19 (.598)
6,91 (.272)
9,68 (.381)
Mounting
Hole
Signal
Contact
2,80 (.110)
2,54 (.100)
9,40 (.370)
REAR FLANGE REF
10,70 (.421)
REAR FLANGE REF
47,04 (1.852)
5,54(.218) 5,54(.218)
23,47 (.924)
22,10 (.870)
19,33 (.761)
16,56 (.652)
13,82 (.544)
11,05 (.435)
8,28 (.326)
22,10 (.870)
19,33 (.761)
16,56 (.652)
13,82 (.544)
11,05 (.435)
8,28 (.326)
5,54(.218)
8,28 (.326)
12,42 (.489)
15,19 (.598)
6,91 (.272)
9,68 (.381)
12,42 (.489)
15,19 (.598)
17,96 (.707)
20.70 (.815)
17,96 (.707)
20,70 (.815)
6,91 (.272)
9,68 (.381)
Mounting
Hole
Signal
Contact
2,80 (.110)
23,47 (.924)
63,50 (2.500)
24,84 (.978)
24,84 (.978)
2,54 (.100)
9,40 (.370)
REAR FLANGE REF
10,90 (.429)
REAR FLANGE REF
9 Contacts
37 Contacts
15 Contacts
25 Contacts
50 Contacts
Signal Contact
Recommended PCB Hole
0,60 (.024)
1,00 (.039)
Mounting Type
Recommended PCB Hole
Without Boardlock
3,05 (.120)
With Boardlock
3,10 (.122)
Straight PCB Plug and Receptacle
ca_C1-C61.qxd:Layout 1
2/10/11
9:32 AM
Page 45
