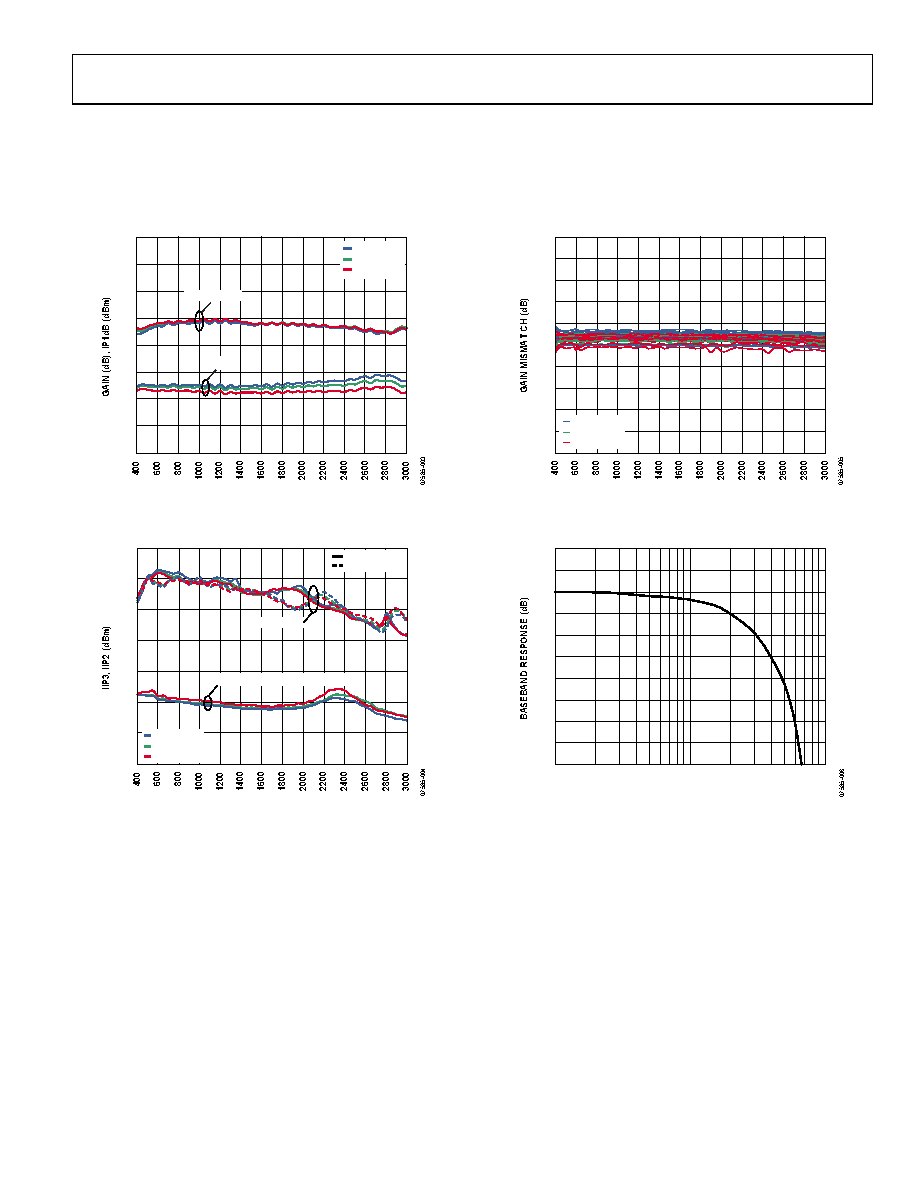

TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V, TA = 25°C, LO drive level = 0 dBm, RF input balun loss is de-embedded, unless otherwise noted.

LOW BAND OPERATION

RF = 400 MHz to 3 GHz; Mini-Circuits TC1-1-13 balun on LO and RF inputs, 1.5 kΩ from the ADJ pin to VS.

LO FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

GAIN

INPUT P1dB

Figure 3. Conversion Gain and Input 1 dB Compression Point (IP1dB) vs.

LO Frequency

I CHANNEL

Q CHANNEL

LO FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

INPUT IP2

INPUT IP3 (I AND Q CHANNELS)

Figure 4. Input Third-Order Intercept (IIP3) and

Input Second-Order Intercept Point (IIP2) vs. LO Frequency

–1.0

–0.8

–0.6

–0.2

–0.4

0.2

0.4

0.6

0.8

1.0

TA = –40°C

TA = +25°C

TA = +85°C

LO FREQUENCY (MHz)

Figure 5. IQ Gain Mismatch vs. LO Frequency

–8

–7

–6

–5

–4

–3

–2

–1

100

1000

BASEBAND FREQUENCY (MHz)

Figure 6. Normalized IQ Baseband Frequency Response
