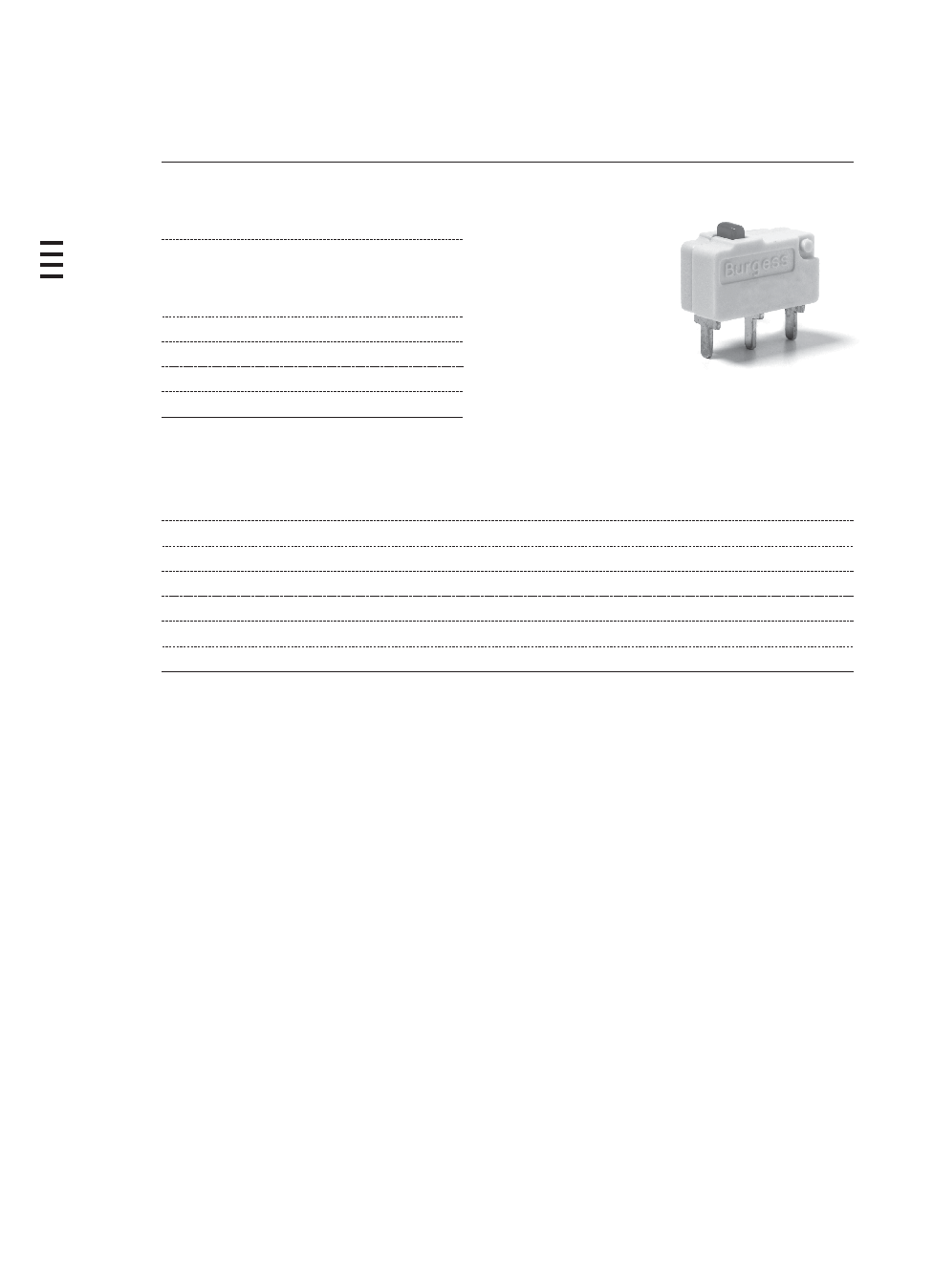

Snap-action Microswitches

Ultraminiature

F5

Characteristics

High electrical rating from a very small switch

Long mechanical and electrical life

PCB terminals

Gold-plated contact option

UL and CSA approved

Rating

Up to 250 VAC, 5 A

Dimensions (mm)

12.8

i 7.25 i 5

Actuator

Plunger, plain lever, simulated roller (cam follower) lever

Approvals

UL and CSA

Preferred Range

Ordering Reference Actuating Force

Sealing

Operating pos.

Terminal

Circuit

Actuator

Contacts

Electrical rating

(N)

(ozf)

(mm)

(in)

F5T8UL 1.4

5.00

IP40

8.75

0.34

PCB

CO

Plunger

Silver

Up to 250 VAC, 5 A

F5T8GPUL 1.4

5.00

IP40

8.75

0.34

PCB

CO

Plunger

Gold plate

Up to 250 VAC, 5 A

F5T8Y1UL 0.6

2.20

IP40

8.80

0.35

PCB

CO

Plain lever

Silver

Up to 250 VAC, 5 A

F5T8Y1GPUL 0.6

2.20

IP40

8.80

0.35

PCB

CO

Plain lever

Gold plate

Up to 250 VAC, 5 A

F5T8YCUL 0.7

2.50

IP40

10.90

0.43

PCB

CO

Simulated roller

Silver

Up to 250 VAC, 5 A

F5T8YCGPUL 0.7

2.50

IP40

10.90

0.43

PCB

CO

Simulated roller

Gold plate

Up to 250 VAC, 5 A
