www.saia-burgess.com

saia-burgess Switches

28 | 29

Specifications

Housing

Glass fibre reinforced nylon

Plunger

Nylon

Mechanism

Snap-action, single pole

Functions

Change-over, Normally open, Normally closed

Contacts

Fixed, Moving – Silver or Gold plate on silver

Terminals

2.0 mm (0.08 in) faston and solder - brass, gold flashed

Temperature range ºC

-40°C to +85°C

Mechanical life

10

7 cycles minimum (impact free actuation)

Protection

IP 40 (enclosure)

Mounting

Side mounting

Actuators

Plain lever; simulated roller (cam follower) lever

Accessories

Lug mounting frame, insulating sheet, spring-leaf actuator

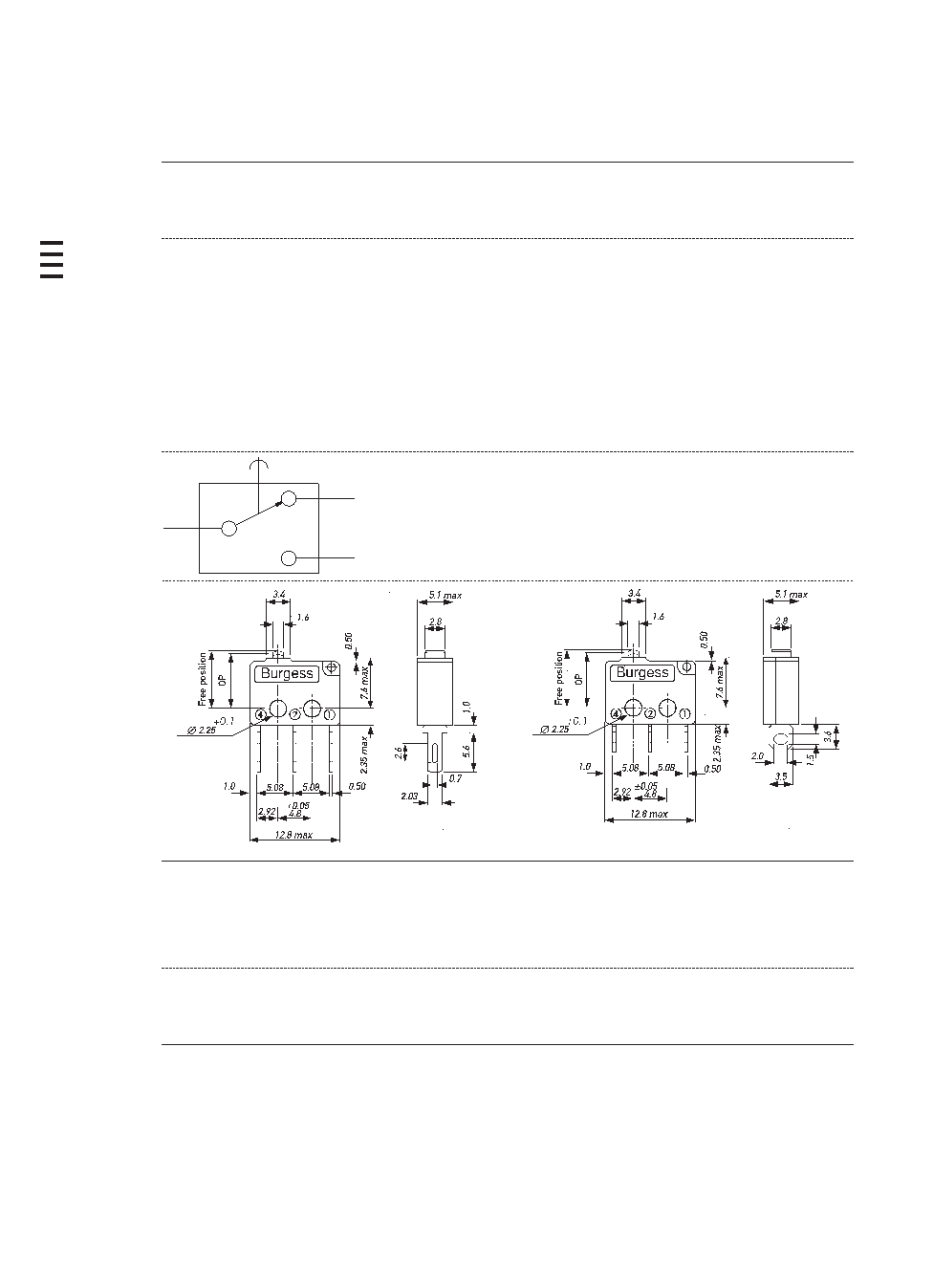

Circuit diagram

Dimensions

F4

1

4

2

COMMON

OPEN

NORMALLY

CLOSED

NORMALLY

Recommended maximum electrical ratings

Voltage

Load

Approval

(max)

(A)

250 VAC

5 (0.75 pf)

UL 1054/CSA 22.2 No. 55 - 6,000 operations

125 VAC

5 (0.75 pf)

UL 1054/CSA 22.2 No. 55 - 6,000 operations

0 - 15 VDC

5

General rating - 50,000 operations

15 - 30 VDC

3

General rating - 50,000 operations

F4 switches are available with either silver or gold-plated silver contacts.

Switches with gold-plated contacts are intended for use in circuits where switching is at milliwatt levels.

In this case, the power being switched must be limited to avoid the erosion of gold plate from the contact area.

However, as the underlying contacts are silver, the same power ratings apply.

Mounting holes

F4T6

F4T7

Mounting holes
