Data Sheet
ADG774A
Rev. C | Page 9 of 14

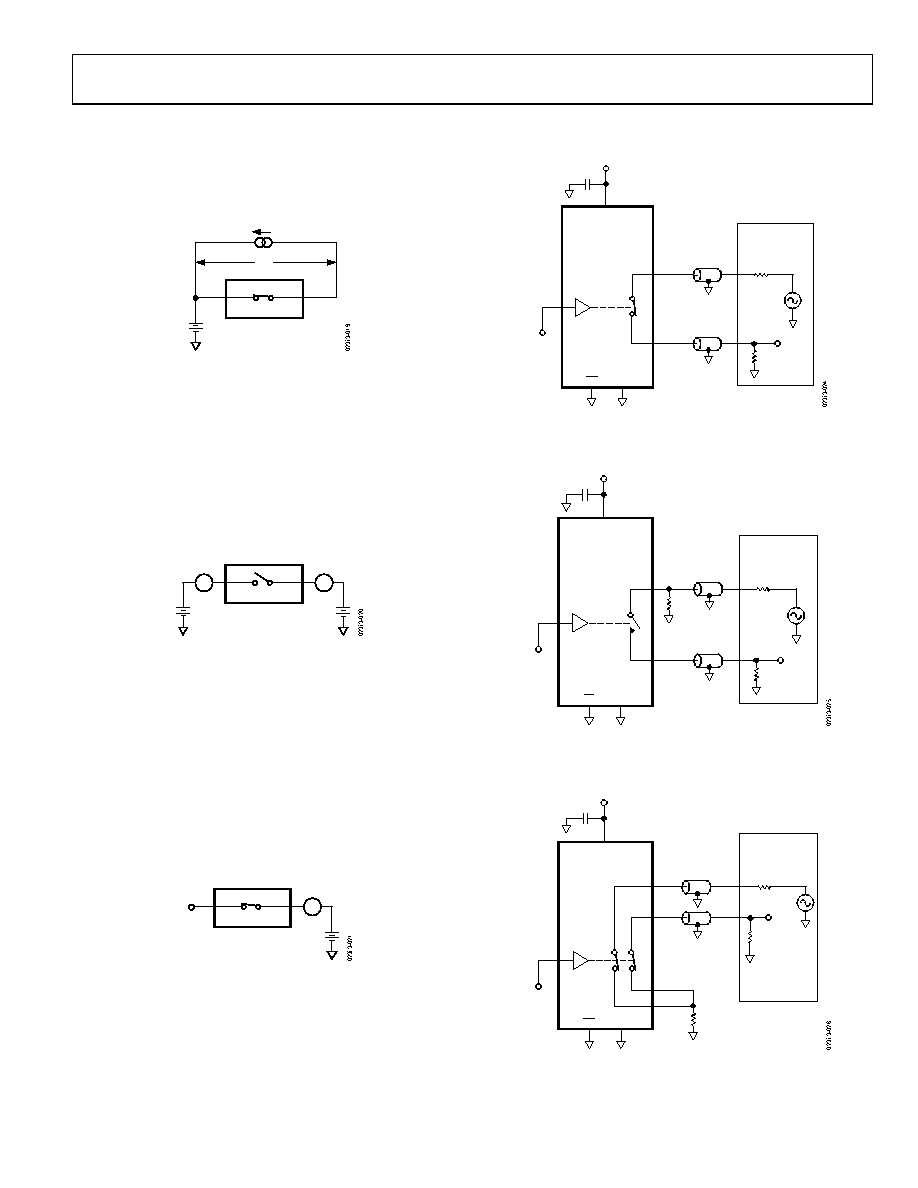

TEST CIRCUITS
IDS
V1
SD
VS
RON = V1/IDS
Figure 16. On Resistance
SD
VS
A
A
VD
IS (OFF)ID (OFF)
Figure 17. Off Leakage
SD
A
VD
ID (ON)
NC
NC = NO CONNECT
Figure 18. On Leakage
0.1µF
VDD
GND
EN
50Ω
VOUT
VS
IN
D1
VIN
S1A
ADG774A
50Ω
NETWORK
ANALYZER
Figure 19. Bandwidth
0.1µF
VDD
GND
EN
50Ω
VOUT
VS
IN
D1
VIN
S1A
ADG774A
50Ω
NETWORK
ANALYZER
50Ω
Figure 20. Off Isolation
0.1µF
VDD
GND
EN
IN
VIN
RL
50Ω
VS
D2
S1A
ADG774A
D1
50Ω
NETWORK
ANALYZER
VOUT
S2A
50Ω
Figure 21. Channel-to-Channel Crosstalk
