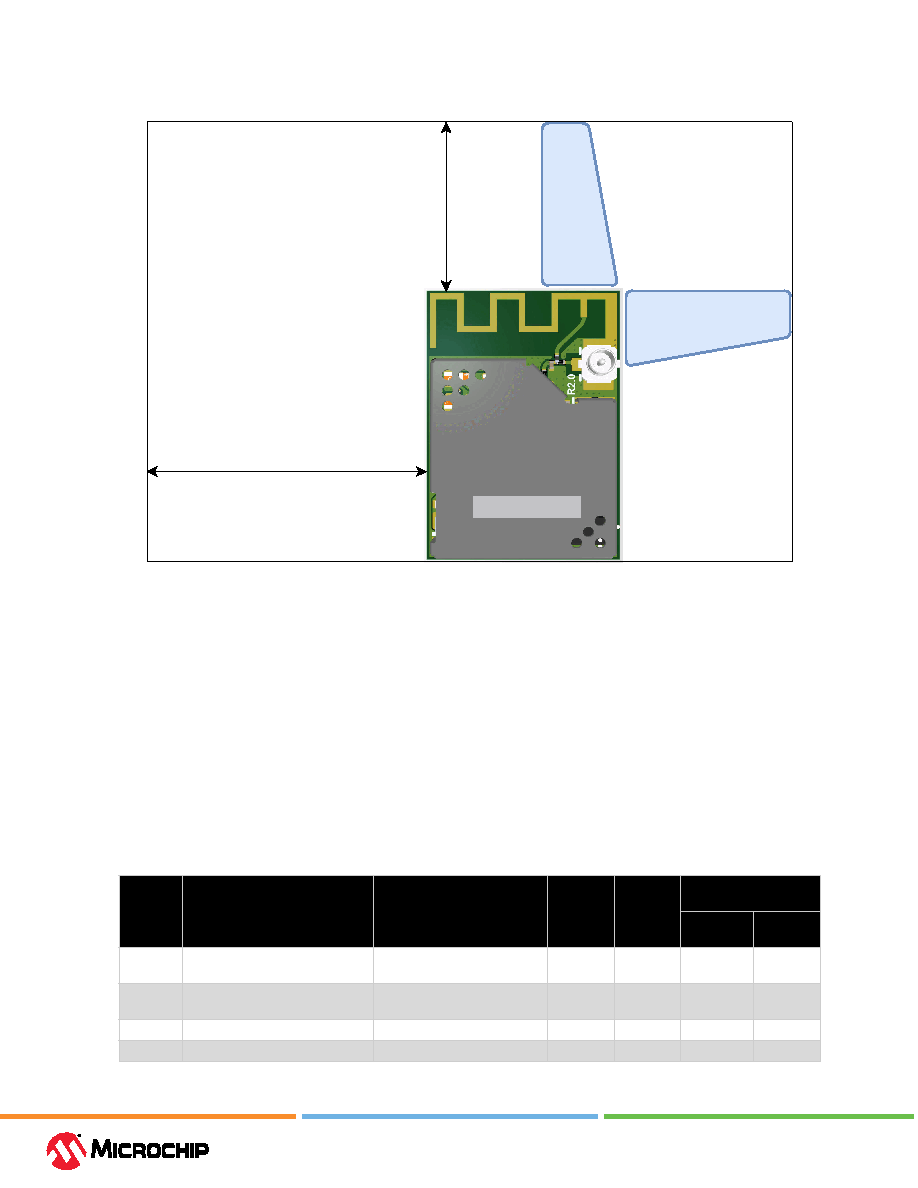

Figure 2-21. WINCS02 Module Antenna Placement Guidelines

5 cm from Board Edge

Preferred Antenna

Cable Routing Direction

Note: These are generic guidelines and the recommendation is that customers can check and

fine-tune the antenna positioning in the final host product based on RF performance.

2.7.2.1 External Antennas

The WINCS02/UE/UC Modules have a small surface mount U.FL connector for an external antenna

connection. The choice of antenna is limited to the antenna types that the module is tested and

approved for regulatory certification.

The WINCS02/UE/UC Modules are approved to use with the antennas listed in the following table.

It is permissible to use a different antenna, provided it is the same antenna type, has the same

antenna gain (equal or less than) and similar in-band and out-of-band characteristics are present

(refer to antenna specification sheet for cutoff frequencies).

If other antenna types are used, the OEM installer must conduct the necessary assessments and

authorize the antenna with the respective regulatory agencies and ensure compliance.

Table 2-5. Approved External Antenna List with Antenna Gain for WINCS02 Module

Antenna

No.

Part Number

Manufacturer

Antenna

Gain (dBi)

Antenna

Type

Regulatory

Certification

FCC/ISED(2)

(3)

WXE2400

TE Connectivity/Laird External

Antennas

Dipole

ANT-2.4-CW-RCL-RPS

TE Connectivity/Linx

Technologies

2.3

Dipole

RFA-02-C2M2-D034

Alead

Dipole

RFA-02-L2H1

Aristotle

Dipole
