WINCS02IC and WINCS02 Family

Device Overview

Data Sheet

DS70005577B - 20

Table 2-4. PCB Antenna Specification for WINCS02 Module

Parameter

Specification

Operating frequency

2400-2485 MHz

Peak gain

1.18 dBi at 2410 MHz

Efficiency (average)

45%(1)

Note:

1. The size of the WINCS02 Add-On Board is 25.4 mm x 57.2 mm. The antenna efficiency will improve with larger ground

plane base boards. The same antenna achieved an average efficiency of 69% with a base board size of 85 mm x 40 mm.

If the best case routing guidelines are followed on a larger ground plane application board, the efficiency will be better.

PCB Antenna Radiation Pattern

The following figure illustrates the module orientation in the measurement system for the PCB

antenna radiation pattern.

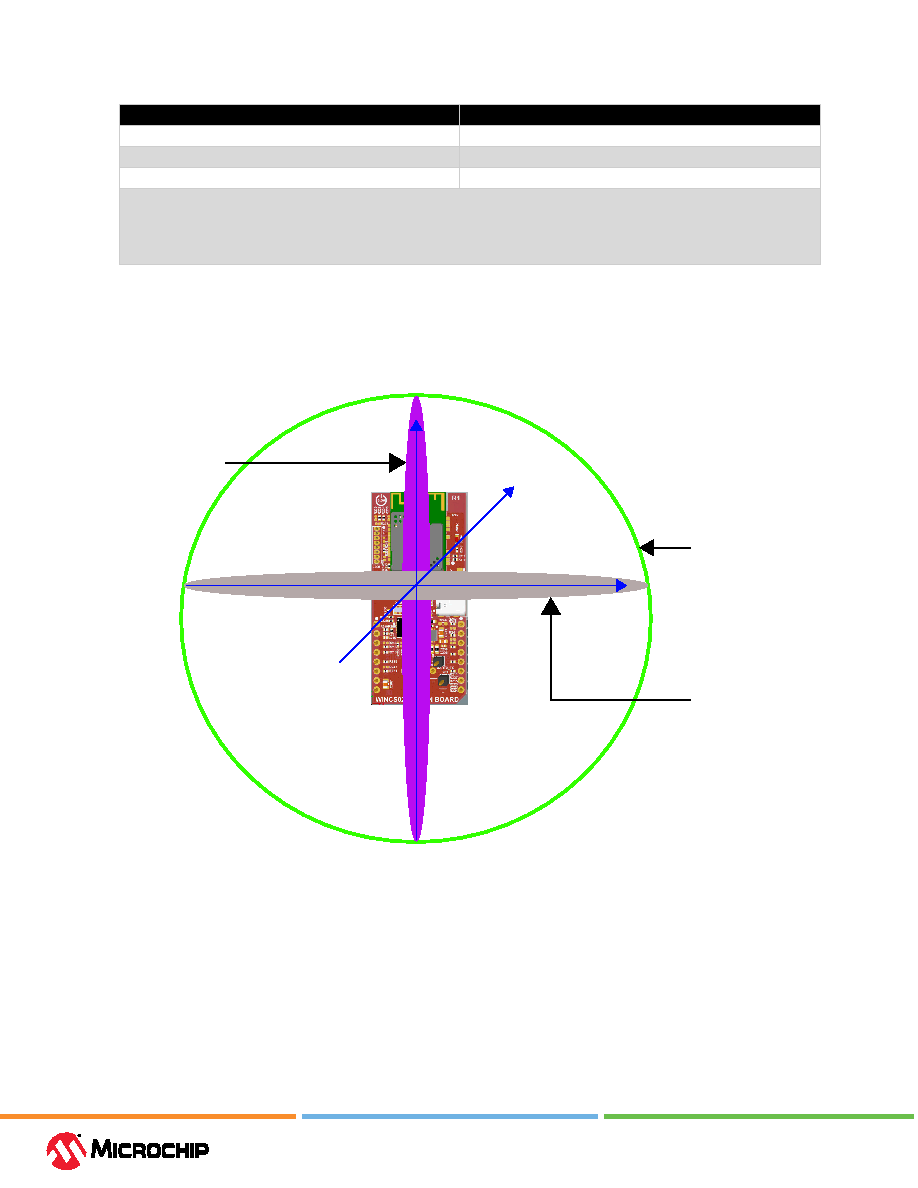

Figure 2-12. Module Orientation for Radiation Pattern Measurement

Z+

Y+

X+

Vertical Cut at

Phi = +90°

Vertical Cut at

Phi = 0°

Horizontal Cut at

Theta = 90°

PCB Antenna Radiation Pattern

The following figure illustrates the module orientation in the measurement system for the PCB

antenna radiation pattern.
