Data Sheet
ADPA7002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 8 of 20

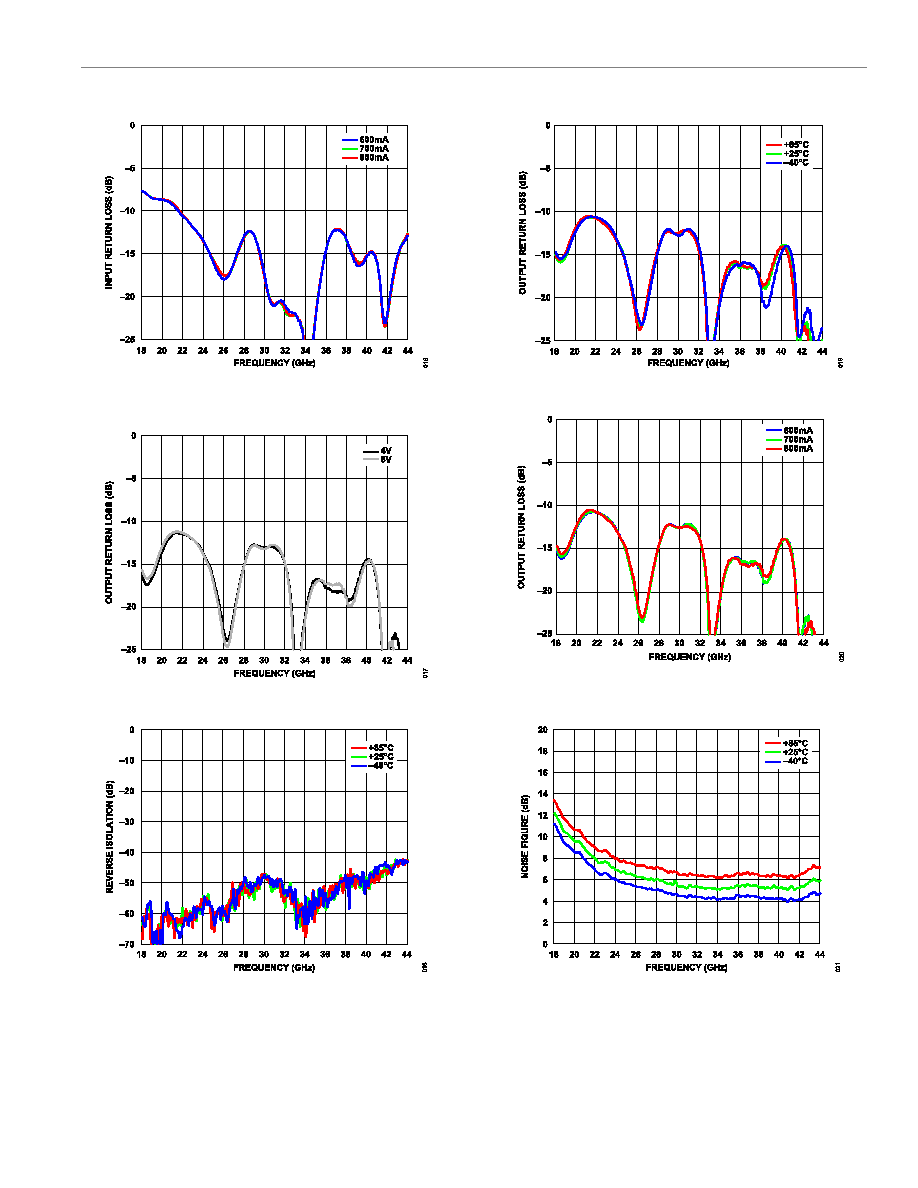

Figure 16. Input Return Loss vs. Frequency for Various Quiescent Drain
Currents
Figure 17. Output Return Loss vs. Frequency for Various Drain Voltages
Figure 18. Reverse Isolation vs. Frequency for Various Temperatures
Figure 19. Output Return Loss vs. Frequency for Various Temperatures
Figure 20. Output Return Loss vs. Frequency for Various Quiescent Drain
Currents
Figure 21. Noise Figure vs. Frequency for Various Temperatures
