ADPA7002AEHZ-R7 Fiches technique(PDF) 7 Page - Analog Devices

No de pièce ADPA7002AEHZ-R7
Description  GaAs, pHEMT, MMIC,1/2 W, 18 GHz to 44 GHz, Power Amplifier
PDF  20 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

ADPA7002AEHZ-R7 Fiches technique(HTML) 7 Page - Analog Devices

Back Button ADPA7002AEHZ-R7 Datasheet HTML 3Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 4Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 5Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 6Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 7Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 8Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 9Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 10Page - Analog Devices ADPA7002AEHZ-R7 Datasheet HTML 11Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 7 / 20 page
background image
Data Sheet
ADPA7002

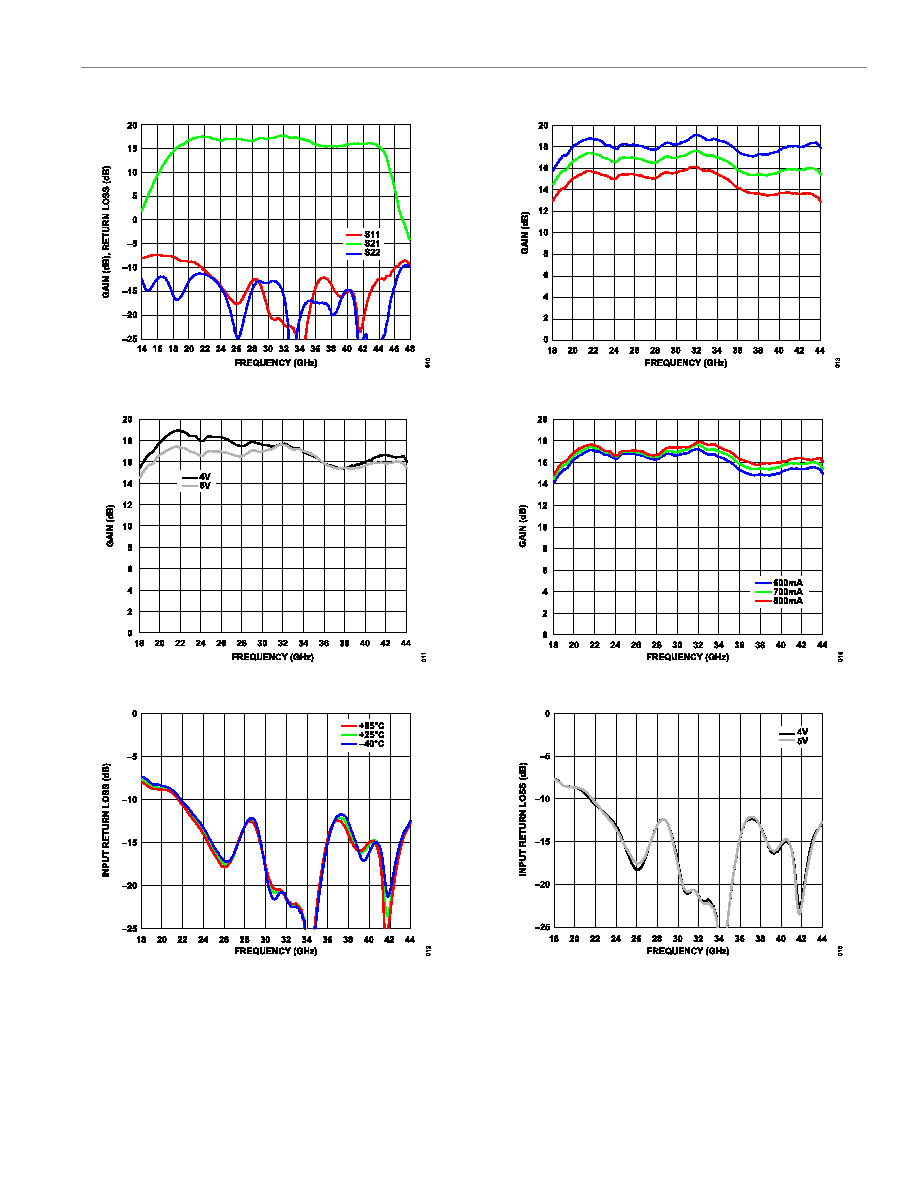

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 7 of 20
Figure 10. Gain and Return Loss vs. Frequency
Figure 11. Gain vs. Frequency for Various Drain Voltages
Figure 12. Input Return Loss vs. Frequency for Various Temperatures, VDD =
5 V, IDQ = 700 mA
Figure 13. Gain vs. Frequency for Various Temperatures
Figure 14. Gain vs. Frequency for Various Quiescent Drain Currents
Figure 15. Input Return Loss vs. Frequency for Various Drain Voltages
