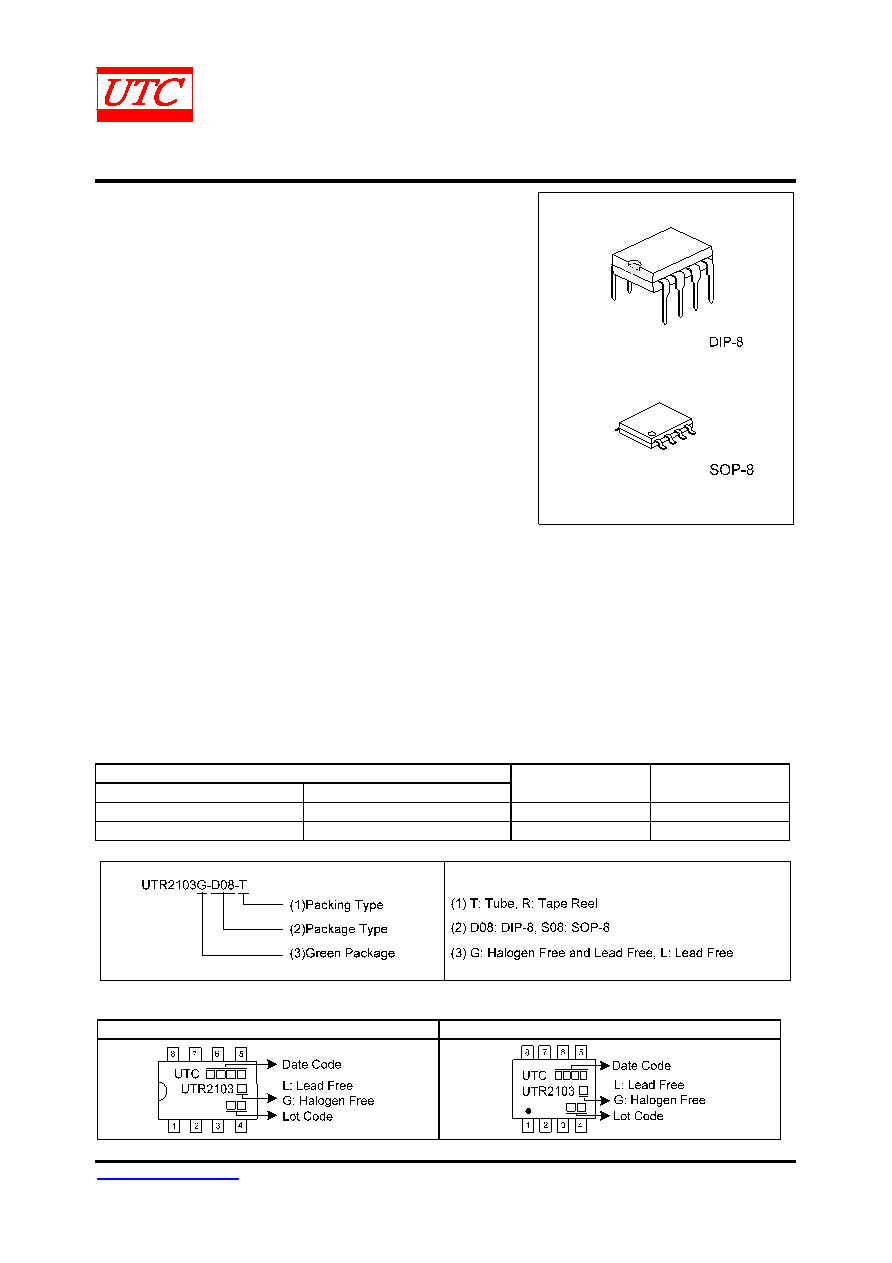

1 / 5 page  UNISONIC TECHNOLOGIES CO., LTD UTR2103 Advance LINEAR INTEGRATED CIRCUIT www.unisonic.com.tw 1 of 5 Copyright © 2023 Unisonic Technologies Co., Ltd QW-R105-081.d HALF-BRIDGE DRIVER DESCRIPTION The UTR2103 is a high voltage, high speed power MOSF ET and IGBT drivers with d ependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable rugge-dized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V. FEATURES * Floating channel designed for bootstrap operation * Fully operational to 600V * Tolerant to negative transient voltage, dV/dt immune * Gate drive supply range from 10V to 20V * Undervoltage lockout * 3.3V, 5V, and 15V input logic compatible * Cross-conduction prevention logic * Internally set deadtime * High-side output in phase with input * Shutdown input turns off both channels * Matched propagation delay for both channels ORDERING INFORMATION Ordering Number Package Packing Lead Free Halogen Free UTR2103L-D08-T UTR2103G-D08-T DIP-8 Tube UTR2103L-S08-R UTR2103G-S08-R SOP-8 Tape Reel MARKING DIP-8 SOP-8 |
