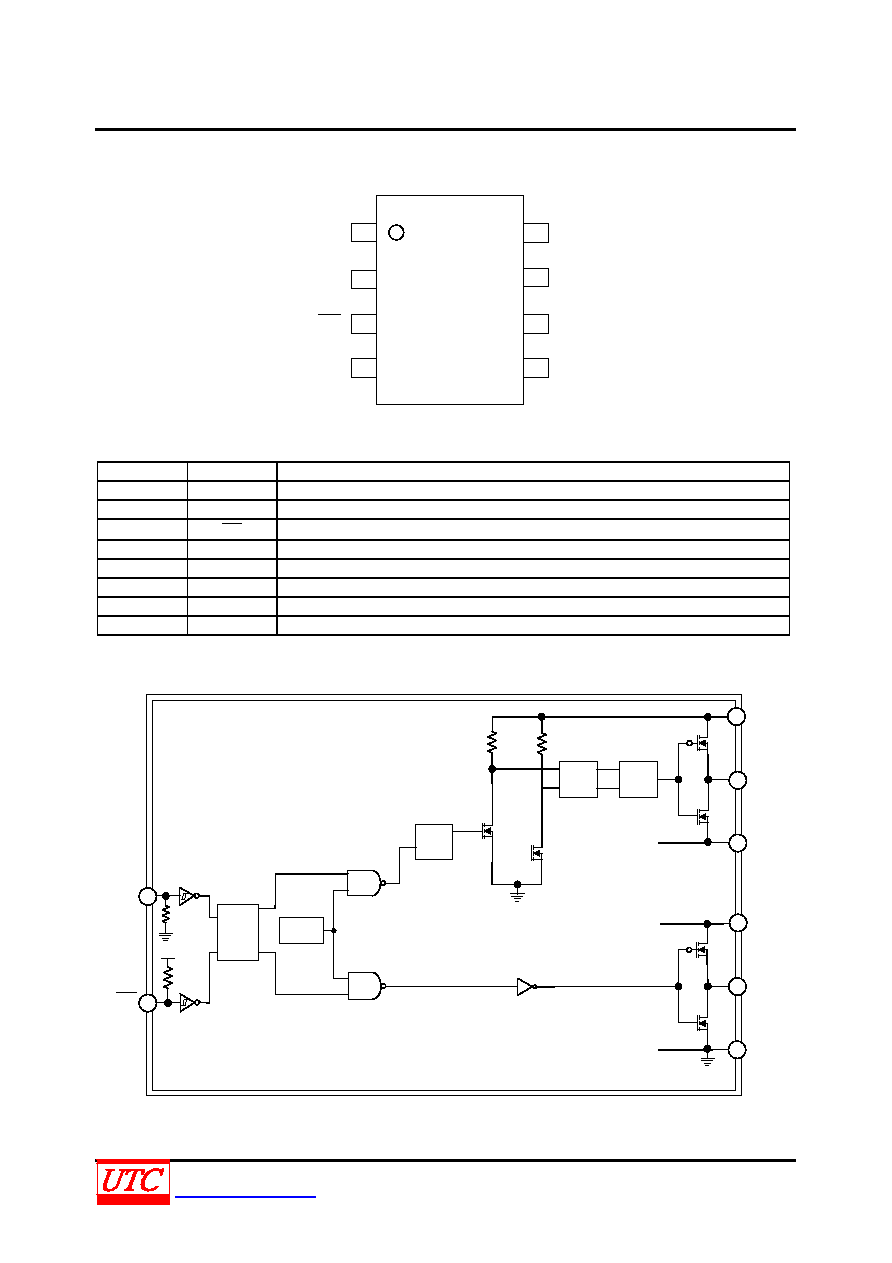

UTR2103
Advance
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R105-081.d
PIN CONFIGURATION
1
LIN
HO
VS
LO
2
3
4
5
6
7
8
VB
VCC
COM
HIN
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
VCC
Low-side and logic fixed supply
2
HIN
Logic input for high-side gate driver output (HO), in phase
3
LIN
Logic input for low-side gate driver output (LO), out of phase
4
COM
Low-side return
5
LO
Low-side gate drive output
6
VS
High-side floating supply return
7
HO
High-side gate drive output
8
VB
High-side floating supply
BLOCK DIAGRAM
2
3
8
7
6
1
5
HIN
LIN
DEAE
TIME
UV
DETECT
PULSE
GEN
PULSE
FILTER
R
S
Q
VB
HO
VS
VCC
LO
COM
4
HV
LEVEL
SHIFT
