ADG2188
Rev. 0 | Page 23 of 28
DUMMY READBACK BYTE
ACK
BY
SWITCH
STOP
COND
BY
MASTER
READBACK BYTE
START
COND
BY
MASTER
ADDRESS BYTE
ACK
BY
MASTER
NO ACK
BY
MASTER
RB7
RB6
RB5
RB4
RB3
RB2
RB1
RB0
A0
R/W
A1
A2
xx
x
x
x
x
x
x
SCL
SDA
A0
R/W
A1
A2
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
SCL
SDA
DATA BYTE
DATA BYTE
ACK
BY
SWITCH
STOP
COND
BY
MASTER
START
COND
BY
MASTER
ADDRESS BYTE
ACK
BY
SWITCH
NO ACK
BY
SWITCH

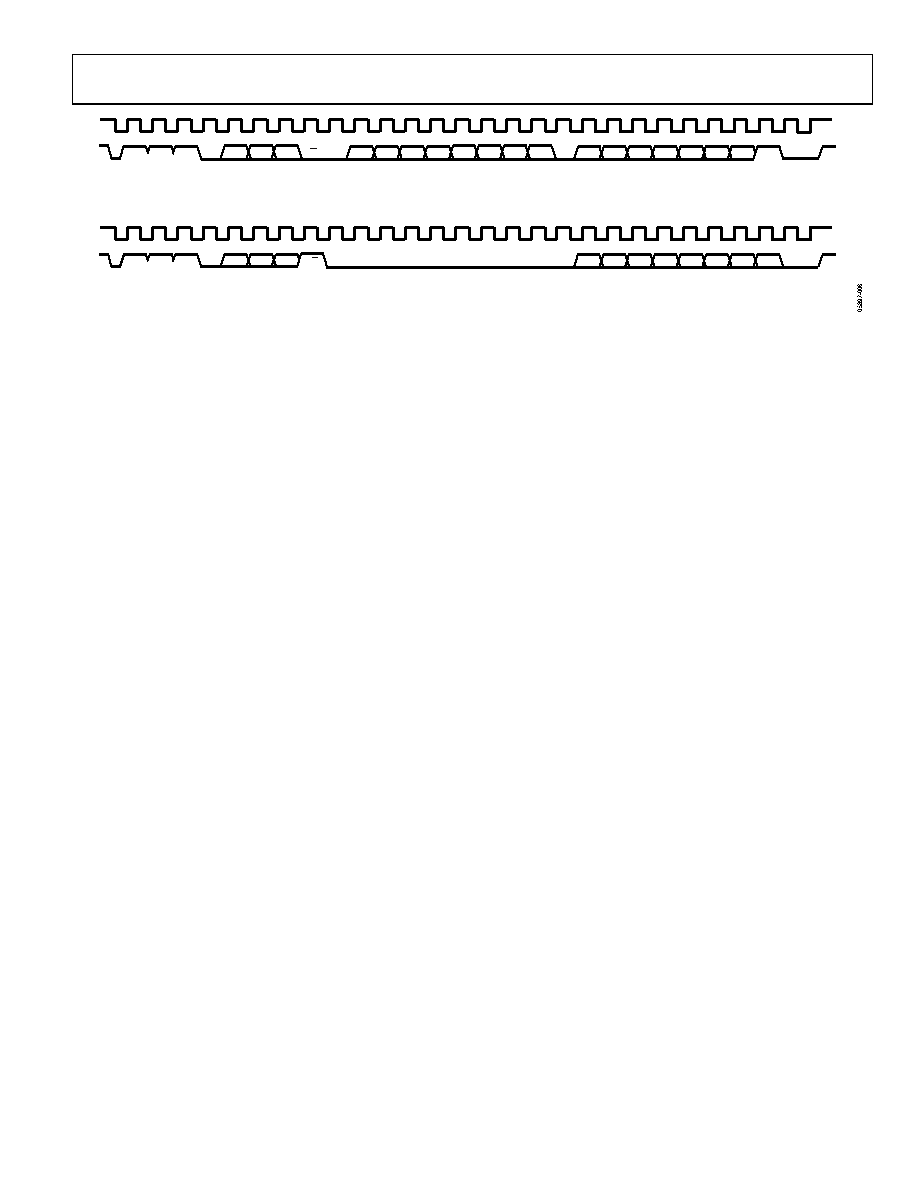

Figure 35. Read Operation
