*Request the AHA3430 Product Specification for complete details.
comtech aha corporation
comtech aha corporation
PRODUCT BRIEF*
AHA3430 StarLite
40 MBYTES/SEC SIMULTANEOUS
COMPRESSOR/DECOMPRESSOR IC, 3.3V
The high speed compression coprocessor is a
single-chip CMOS VLSI device that implements a
lossless compression and decompression algorithm.
The algorithm exhibits an average compression ratio
over 13 to 1 for bitmap image data. The device sup-
ports simultaneous compression and decompression
operations at 40 MBytes/sec each.
A Non-muxed microprocessor interface
connects directly to various embedded processors.
An additional synchronous 32-bit port transfers data
at up to 160 MBytes/sec. Scanners and print engine
interfaces may optionally be connected to two 8-bit
synchronous video ports for emerging
multifunction laser printer and copier applications.
APPLICATIONS
• Multifunction printers and copiers
• High performance laser printers and digital
copiers
FEATURES
PERFORMANCE:
• 40 MBytes/sec compression/decompression rates
• 160 MBytes/sec burst data rate over a 32-bit
data bus
• 40 MBytes/sec synchronous 8-bit video in and
video out ports
• Simultaneous compression/decompression
operation at full bandwidth
• Average 13 to 1 compression ratio for bitmap
image data
FLEXIBILITY:
• Configurable I/O interface for DMA mode, Big
Endian or Little Endian, and 32-bit or 16-bit bus
widths
• Interfaces directly with various i960 or Motorola
68xxx family of processors
• Optional 8-bit video input and output ports
• Pass-through mode passes raw data through
compression and decompression engines
• Programmable scan line length up to 2K bytes
SYSTEM INTERFACE:
• Single chip compression/decompression solution
• No external SRAM required
• Four 16 x 32-bit FIFOs
• Programmable interrupts
• Output signals may be tristated to facilitate board
level testing
OTHERS:
• Low power modes
• Optional counter checks errors in decompression
• Ambient temperature spec is 70
°C, still air
• Software emulation program available
• 120 pin thin quad flat package
•3.3V operation
• Firmware and pin compatible with AHA3410C
• RoHS compliant

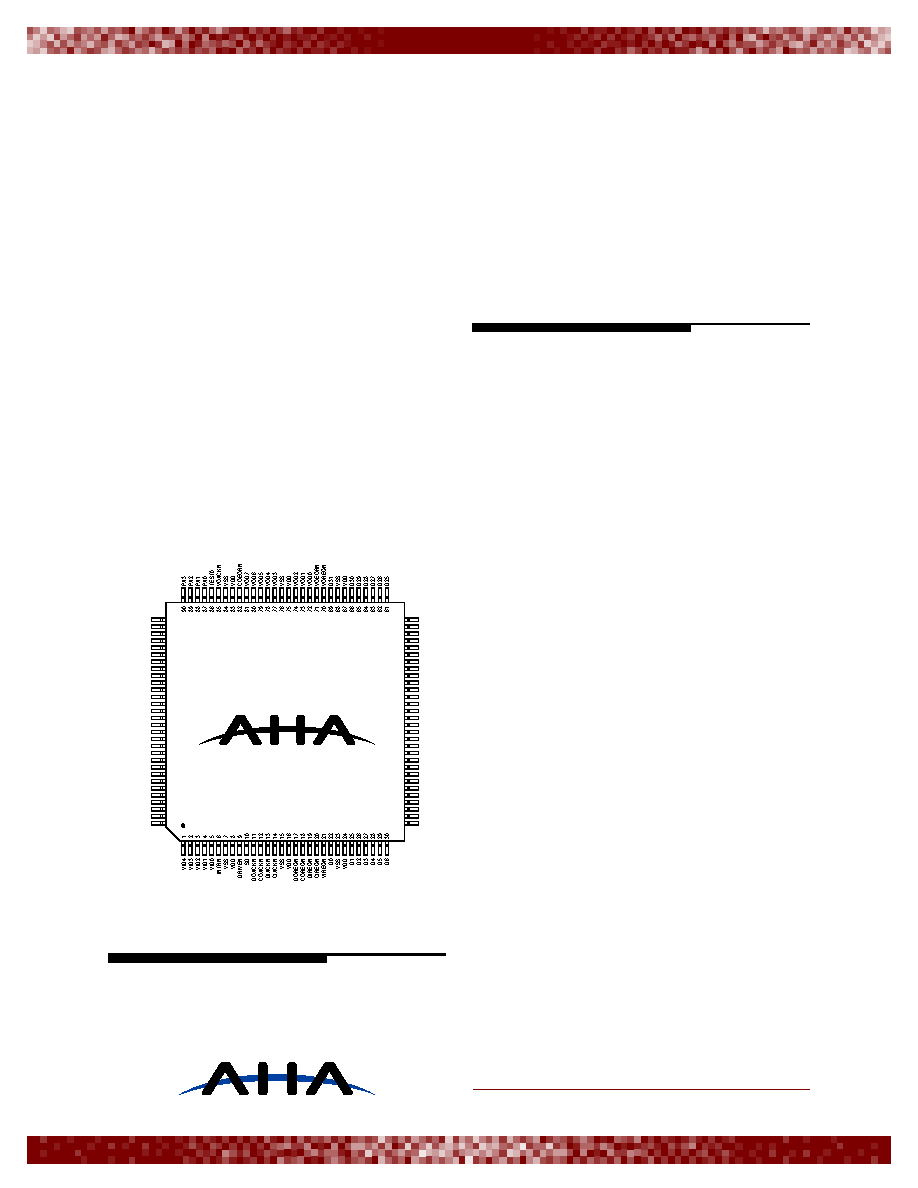

91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
VDD
VSS
PA4
VDD
PROCMODE1
PROCMODE0
CSN
VDD
VSS
DIR
RSTN
PD7
PD6
PD5
VDD
VSS
PD4
PD3
PD2
PD1
PD0
VDD
VSS
RDYN
VIACKN
VID7
VID6
VID5
VDD
VSS
VDD
VSS
D24
D23
D22
D21
D20
D19
D18
D17
D16
D15
VDD
VSS
VDD
VSS
CLK
VDD
VSS
TEST1
D14
D13
D12
VDD
VSS
D11
D10
D9
D8
D7
AHA3430A-040 PTC
YYWW - COUNTRY OF ORIGIN
LLLLL
NOTES: YYWW = DATE CODE; LLLLL= LOT NUMBER
