6
Outline drawings
STMicroelectronics delivers any of the two alternative dual source cap assemblies as detailed in the drawings
below. Both versions are transparent for the customer, since the pad and substrate design are identical for both
versions and have no impact on customer PCB design. Ranging performances, reflow, and technical parameters
are identical for all module designs presented in the figures below.

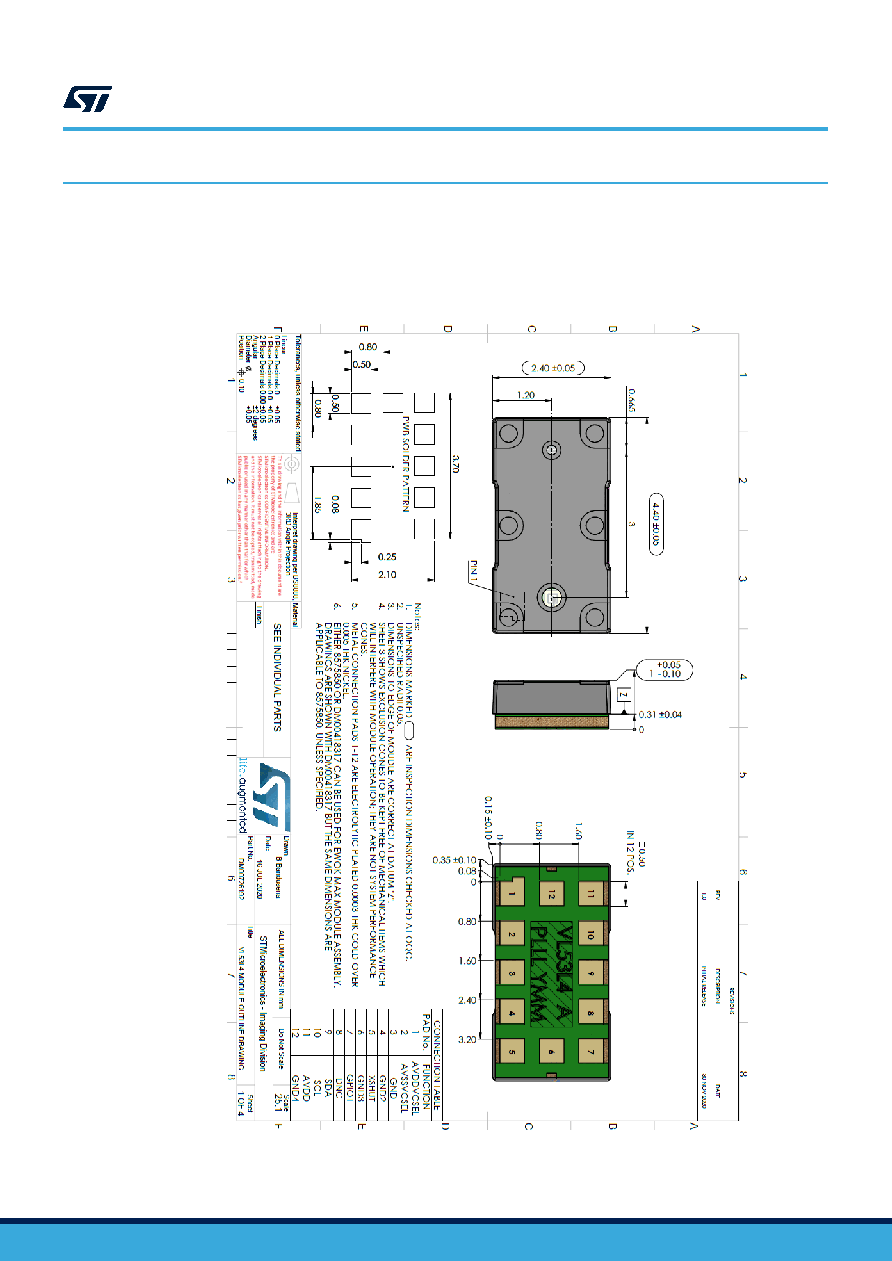

Figure 17. Outline drawing (page 1/4)
VL53L4CD
Outline drawings
DS13812 - Rev 5
page 21/37
