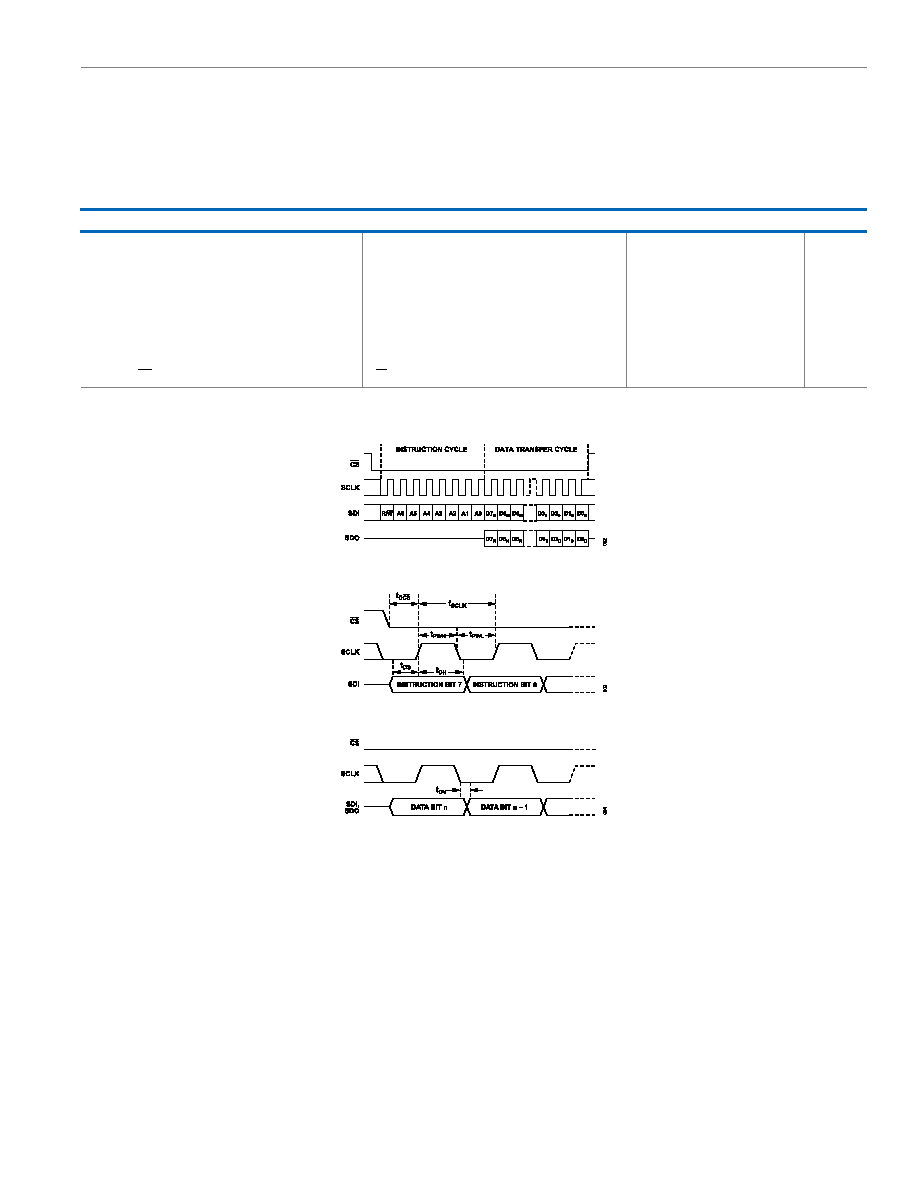

8 / 64 page ![]() Data Sheet ADA4255 SPECIFICATIONS analog.com Rev. 0 | 8 of 64 TIMING SPECIFICATIONS VDDCP = 5 V, AVDD = 5 V, AVSS = 0 V, DVDD = 3.3V, DVSS = 0 V, and VOCM = AVDD/2 V. Table 2. Digital Values and Serial Peripheral Interface (SPI) Timing Specifications Parameter Symbol Min Typ Max Unit Maximum Clock Rate (SCLK) 5 MHz Minimum Pulse Width (SCLK) High tPWH 75 ns Low tPWL 75 ns SDI/SDO to SCLK Setup Time tDS 10 ns SDI/SDO to SCLK Hold Time tDH 10 ns Data Valid, SDO to SCLK tDV 50 ns Setup Time, CS to SCLK tDCS 30 ns Timing Diagrams Figure 2. SPI Timing Diagram, MSB First Figure 3. SPI Register Write Timing Diagram Figure 4. SPI Register Read Timing Diagram |
|
