Data Sheet

ADAR2004

Rev. 0 | Page 37 of 37

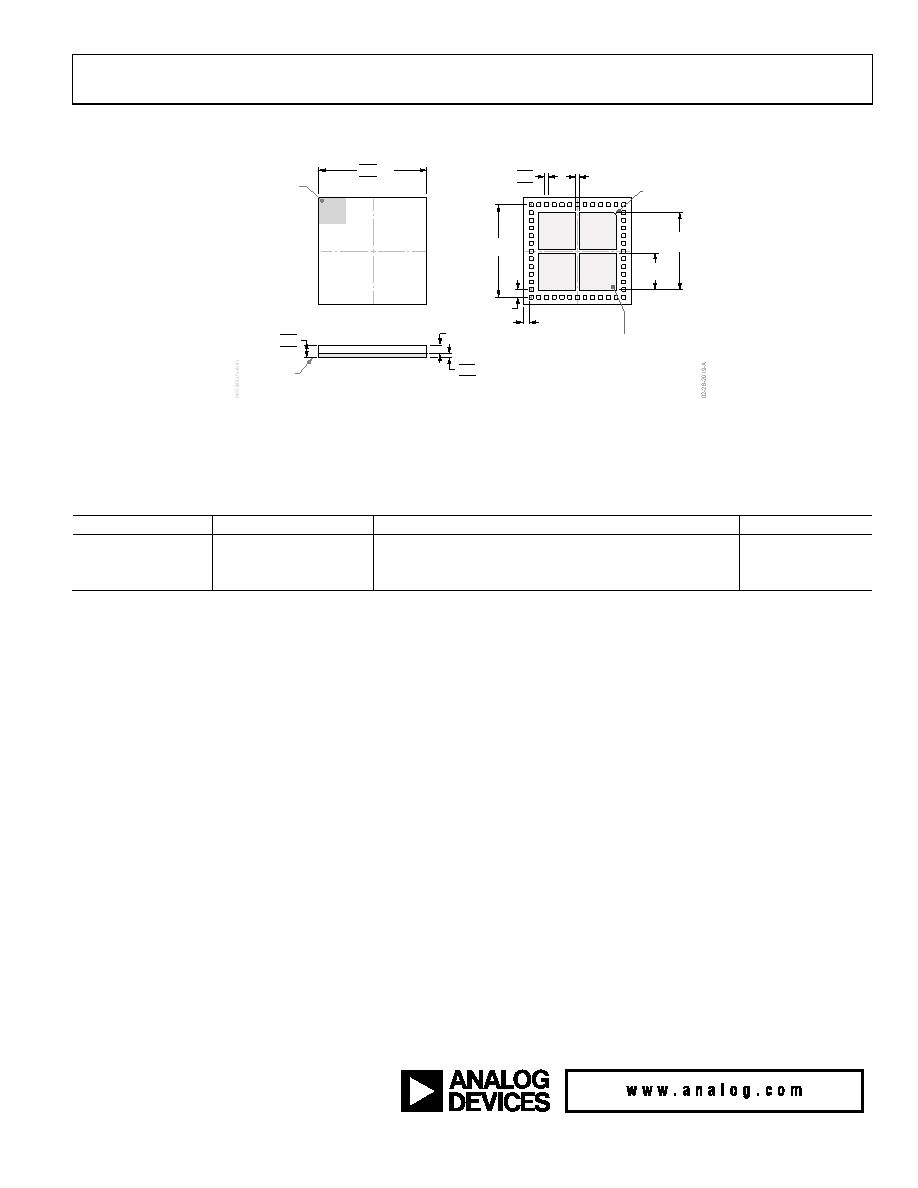

OUTLINE DIMENSIONS

7.10

7.00 SQ

6.90

TOP VIEW

SIDE VIEW

BOTTOM VIEW

0.50

BSC

0.25

BSC

0.38

BSC

6.00 REF

0.30

0.25

0.20

0.45 REF

FOR PROPER CONNECTION OF

THE EXPOSED PADS, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET

5.05 BSC

2.40 BSC

0.26

0.23

0.20

0.78

0.68

0.58

SEATING

PLANE

PIN 1

INDICATOR

AREA

PIN 1

INDICATOR

C 0.20 × 0.45°

Figure 47. 48-Terminal Land Grid Array [LGA] Package

7 mm × 7 mm Body and 0.68 mm Package Height

(CC-48-2)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADAR2004ACCZ

−40°C to +85°C

48-Terminal Land Grid Array [LGA], Tray

CC-48-2

ADAR2004ACCZ-R7

−40°C to +85°C

48-Terminal Land Grid Array [LGA], 7” Tape and Reel

CC-48-2

ADAR2004-EVALZ

Evaluation Board

Z = RoHS compliant part.

registered trademarks are the property of their respective owners.

D20539-8/20(0)
