AD8213YRMZ-R7 Fiches technique(PDF) 8 Page - Analog Devices

No de pièce AD8213YRMZ-R7
Description  Dual, High Voltage, Current Shunt Monitor
PDF  14 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

AD8213YRMZ-R7 Fiches technique(HTML) 8 Page - Analog Devices

Back Button AD8213YRMZ-R7 Datasheet HTML 4Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 5Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 6Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 7Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 8Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 9Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 10Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 11Page - Analog Devices AD8213YRMZ-R7 Datasheet HTML 12Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 8 / 14 page
background image
AD8213
Data Sheet
Rev. D | Page 8 of 14
TIME (5µs/DIV)
2V/DIV
0.01/DIV

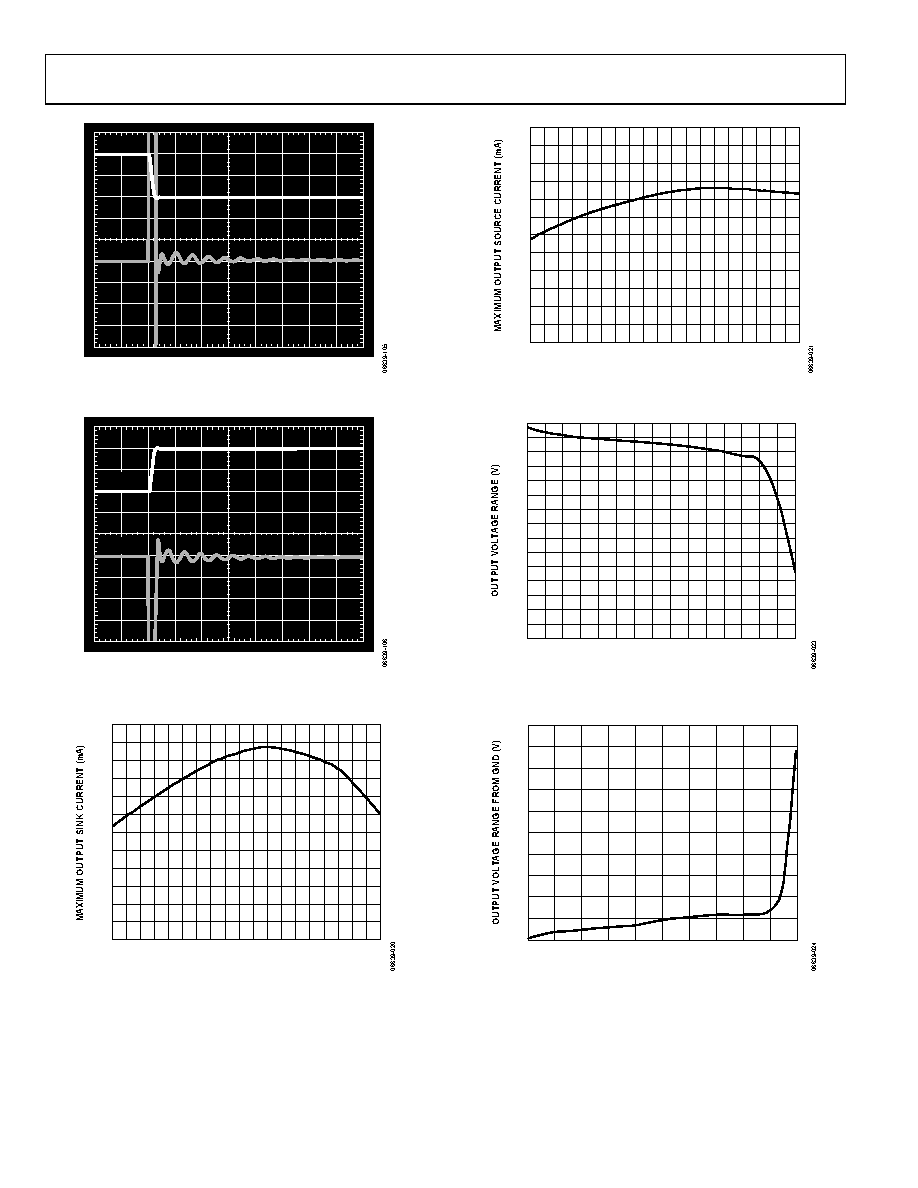

Figure 16. Settling Time (Falling)
TIME (5µs/DIV)
2V/DIV
0.01/DIV
Figure 17. Settling Time (Rising)
12
11
10
9
8
7
6
5
4
3
2
1
0
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
Figure 18. Maximum Output Sink Current vs. Temperature
Per Channel
12
11
10
9
8
7
6
5
4
3
2
1
0
–40
–20
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
Figure 19. Maximum Output Source Current vs. Temperature
Per Channel
5.0
3.5
3.6
3.7
3.8
3.9
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
07.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
OUTPUT SOURCE CURRENT (mA)
Figure 20. Output Voltage Range vs. Output Source Current
Per Channel
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
010
9
8
7
6
5
4
3
2
1
OUTPUT SINK CURRENT (mA)
Figure 21. Output Voltage Range from GND vs. Output Sink Current
Per Channel



Html Pages

1 2 3 4 5 6 7 8 9 10 11 12 13 14
