CWCBLPM1.W1 datasheet(11/23 Pages) OSRAM

11 / 23 page

Version 1.1

CW CBLPM1.W1

2015-04-02

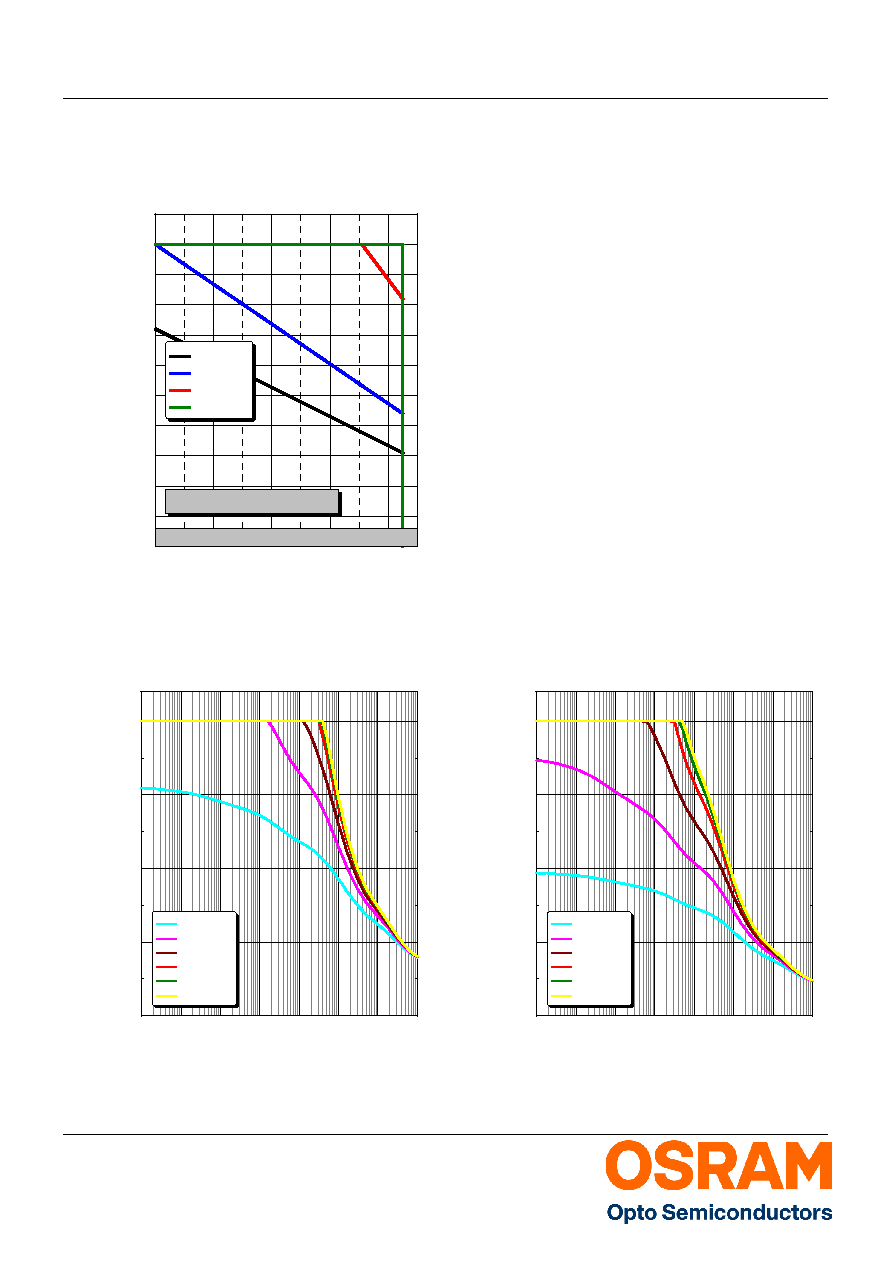

Max. Permissible Forward Current

Max. zulässiger Durchlassstrom

IF = f (T)

Permissible Pulse Handling Capability

Zulässige Impulsbelastbarkeit I

F = f(tp)

Rth JA el = 160 K/W; TA = 25°C; still air; FR4

Permissible Pulse Handling Capability

Zulässige Impulsbelastbarkeit I

F = f(tp)

Rth JA el = 160K/W; TA = 85°C; still air; FR4

CW CBLPM1.W1

T [°C]

100

150

200

250

300

350

400

450

500

550

IF [mA]

Do not use below 30 mA

: 160 K/W

: 110 K/W

: 60 K/W

: 14 K/W

Note:

Deratings strongly relate on the boundary conditions of

each individual device:

• The DC-derating on the left represents several thermal

resistance values Rth JA (Junction/Ambient) as

examples.

• The shown pulse-deratings represent just one of

alterative options for use. For further information please

refer to application note „Thermal Management of Flash

LEDs“.

10-5

10-4

10-3

0.01

0.1

Pulse time [s]

0.0

0.5

1.0

1.5

2.0

IF [A]

CW CBLPM1.W1

: D = 0.2

: D = 0.1

: D = 0.05

: D = 0.02

: D = 0.01

: D = 0.005

10-5

10-4

10-3

0.01

0.1

Pulse time [s]

0.0

0.5

1.0

1.5

2.0

IF [A]

CW CBLPM1.W1

: D = 0.2

: D = 0.1

: D = 0.05

: D = 0.02

: D = 0.01

: D = 0.005
